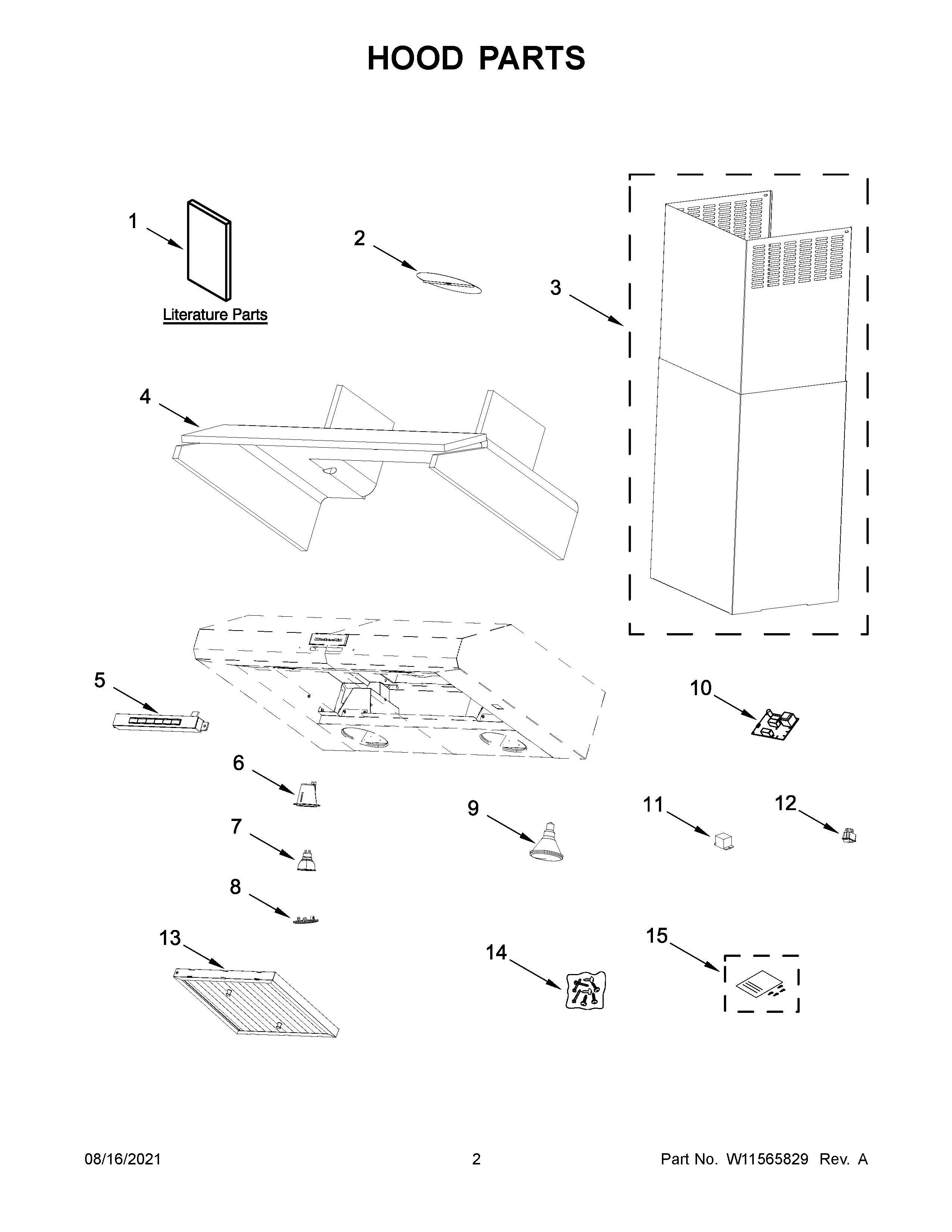

KVWC956KSS0 02 – HOOD PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	W11551389 Whirlpool Hood Damper
3	W11417439 Whirlpool Exhaust Duct
4A	INSULATION (48" MODEL)
4	INSULATION (36" MODEL)
5	W11516463-includeCORE Whirlpool W11516463 Washer Electronic Control Board + Core
6	W11565681 Whirlpool Socket Assembly
7	W11388881 Whirlpool Light Assembly
8	W10351924 Whirlpool Bezel
9	WPW10294005 Whirlpool Light Bulb
10	W11700319 Whirlpool Filter
11	W11565687 Whirlpool Power Relay
12	W10351934 Whirlpool Rocker Switch
13	W10351890 Whirlpool Filter
14	KIT, FILTER INSTALLATION
15	HARDWARE, INSTALLATION
