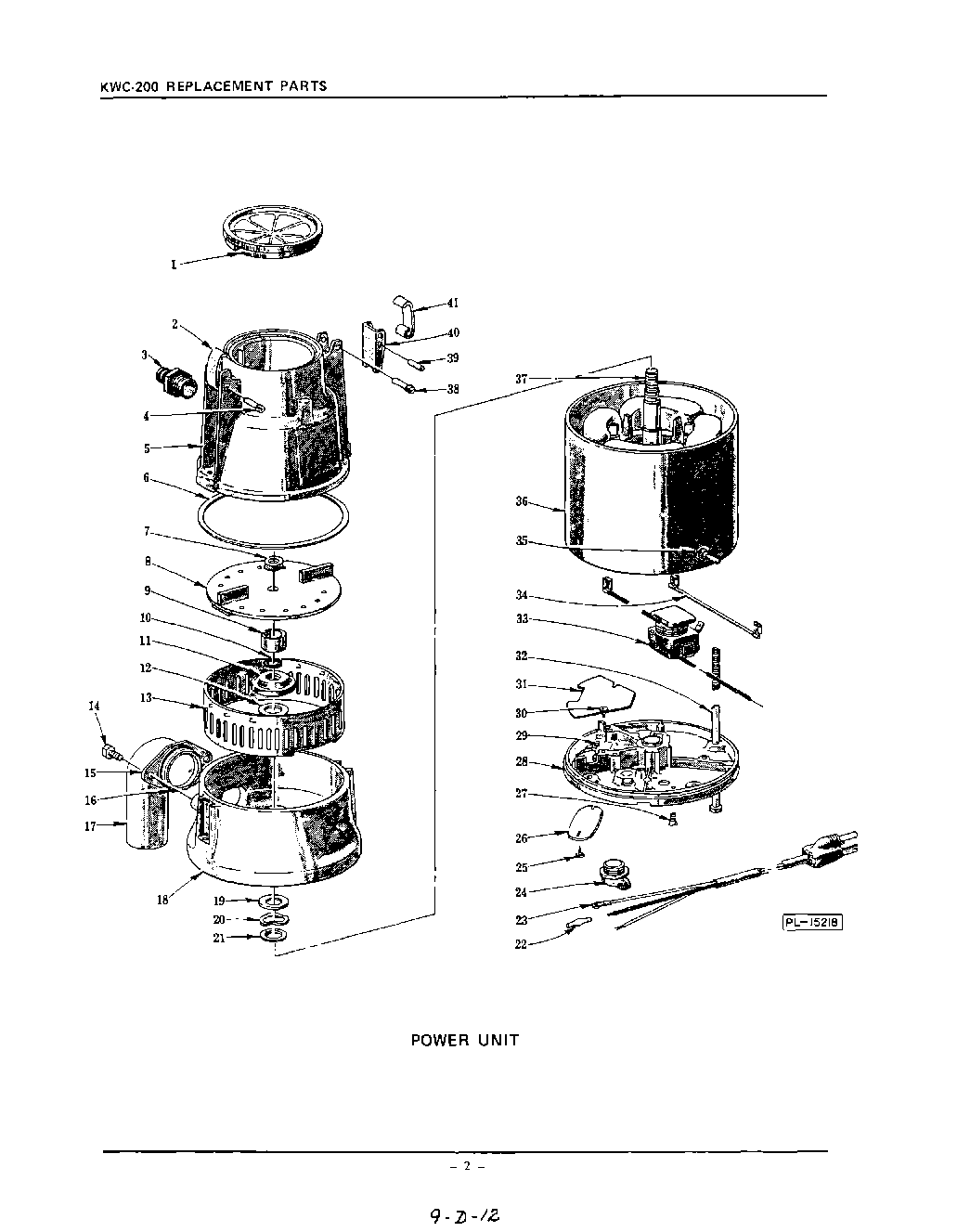

KWC200 02 – SECTION

Products

Position	Product
1	Guard – Splash
3	Connector – Male Hose
5	Housing – Upper
6	Gasket – Waist
7	Jam Nut – 7/16“-20 “Special“
8	Flywheel Assy. (SST)
9	Sleeve – Seal
10	“O“ Ring
11	Seal – Triple Lip
12	Washer – Upper Thrust
13	Ring – Shredder (SST)
14	Fin. Bolt – 1/4“-20 x 1/2“ Hex Hd.
15	Flange – Spout
16	Seal – Spout
17	Spout & Seal Assy. (Incls. item No.16)
18	Lower Housing Assy
19	Washer – Nylon
20	Washer – Wavy
21	Washer – Lower Thrust
22	Connector – Butt
23	Cord & Plug Assy. (115 V., 60 Hz.)
24	Strain Relief
26	Cover – Electrical Access
27	Mach. Screw 8-32 x 1/4 Flat Hd
28	Bearing Bracket Assy
29	Screw – Machine Grounding
30	Self-Tapping Screw 6-32 x 5/16 Phil. Pan Hd., Type T
31	Barrier – Electrical Enclosure
32	Mach. Screw – No.10-32 x 8-5/8“ Indented Hex Hd.
33	Relay & Protector (115 V., 60 Hz.)
34	Wire Assy. (Switch to Relay & Protector)
35	Switch – Reversing
36	xStator Assy. (115 V., 60 Hz.)
37	Rotor Assy
38	Groov-Pin – Type C Driv-Loc, 1/8“ x 1-1/4“
39	Pin – Hinge
40	Lever – Clamp
41	Hoo
