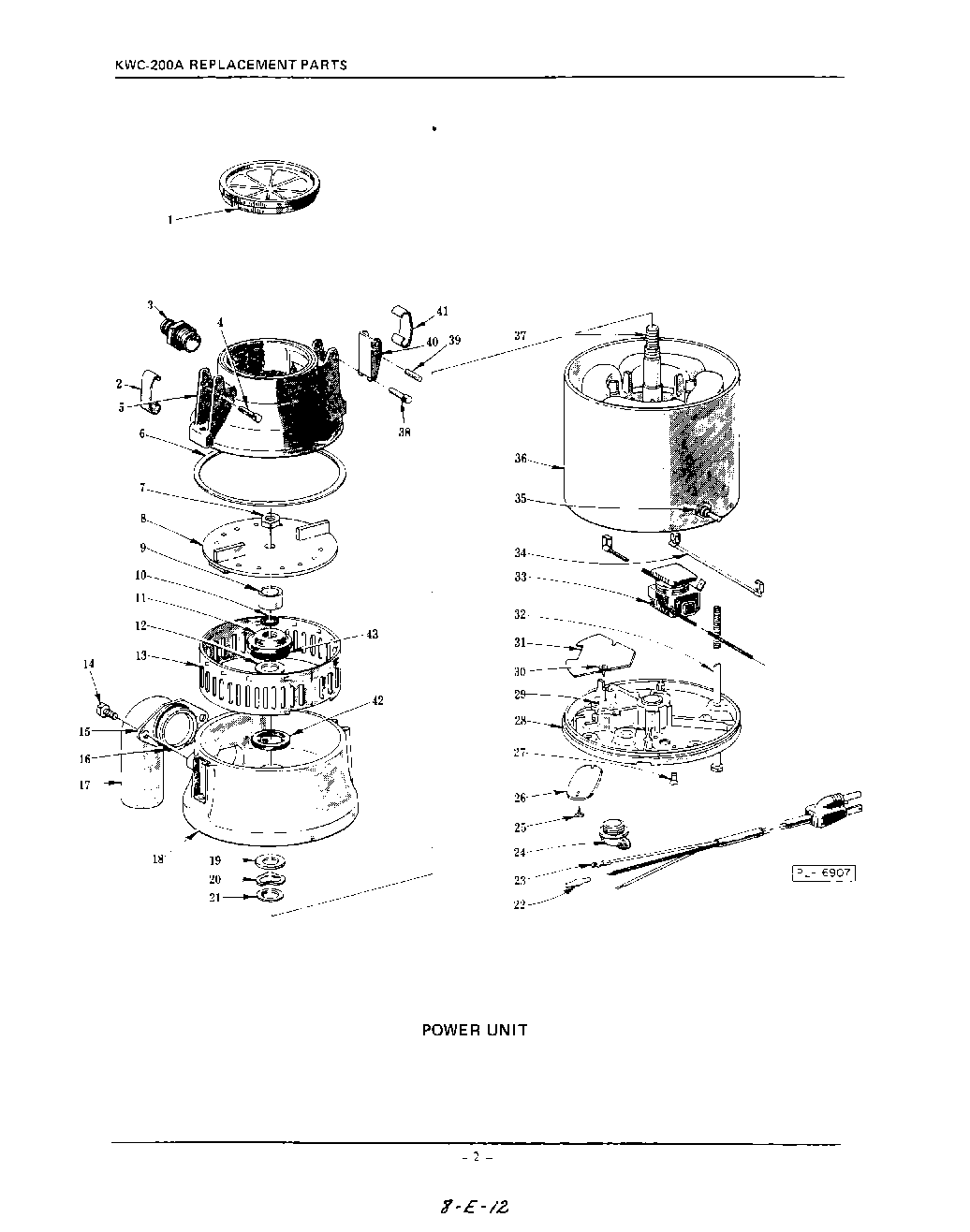

| 1 | Guard - Splash |
| 3 | Connector - Male Hose |
| 5 | Housing - Upper |
| 6 | Gasket - Waist |
| 7 | Jam Nut - 7/16``-20 ``Special`` |
| 8 | Flywheel Assy. (SST) |
| 9 | Sleeve - Seal |
| 10 | ``O`` Ring |
| 11 | Seal - Triple Lip |
| 12 | Washer - Upper Thrust |
| 13 | Ring - Shredder (SST) |
| 14 | Fin. Bolt - 1/4``-20 x 1/2`` Hex Hd. |
| 15 | Flange - Spout |
| 16 | Seal - Spout |
| 17 | Spout & Seal Assy. (Incls. item No.16) |
| 18 | Lower Housing Assy |
| 19 | Washer - Nylon |
| 20 | Washer - Wavy |
| 21 | Washer - Lower Thrust |
| 22 | Connector - Butt |
| 23 | Cord & Plug Assy. (115 V., 60 Hz.) |
| 24 | Strain Relief |
| 26 | Cover - Electrical Access |
| 27 | Mach. Screw 8-32 x 1/4 Flat Hd |
| 28 | Bearing Bracket Assy |
| 29 | Screw - Machine Grounding |
| 30 | Self-Tapping Screw 6-32 x 5/16 Phil. Pan Hd., Type T |
| 31 | Barrier - Electrical Enclosure |
| 32 | Mach. Screw - No.10-32 x 8-5/8`` Indented Hex Hd. |
| 33 | Relay & Protector (115 V., 60 Hz.) |
| 34 | Wire Assy. (Switch to Relay & Protector) |
| 35 | Switch - Reversing |
| 36 | xStator Assy. (115 V., 60 Hz.) |
| 37 | Rotor Assy |
| 38 | Groov-Pin - Type C Driv-Loc, 1/8`` x 1-1/4`` |
| 39 | Pin - Hinge |
| 40 | Lever - Clamp |
| 41 | Hoo |
| 42 | WPL B240929 |
| 43 | WPL B115805 |
