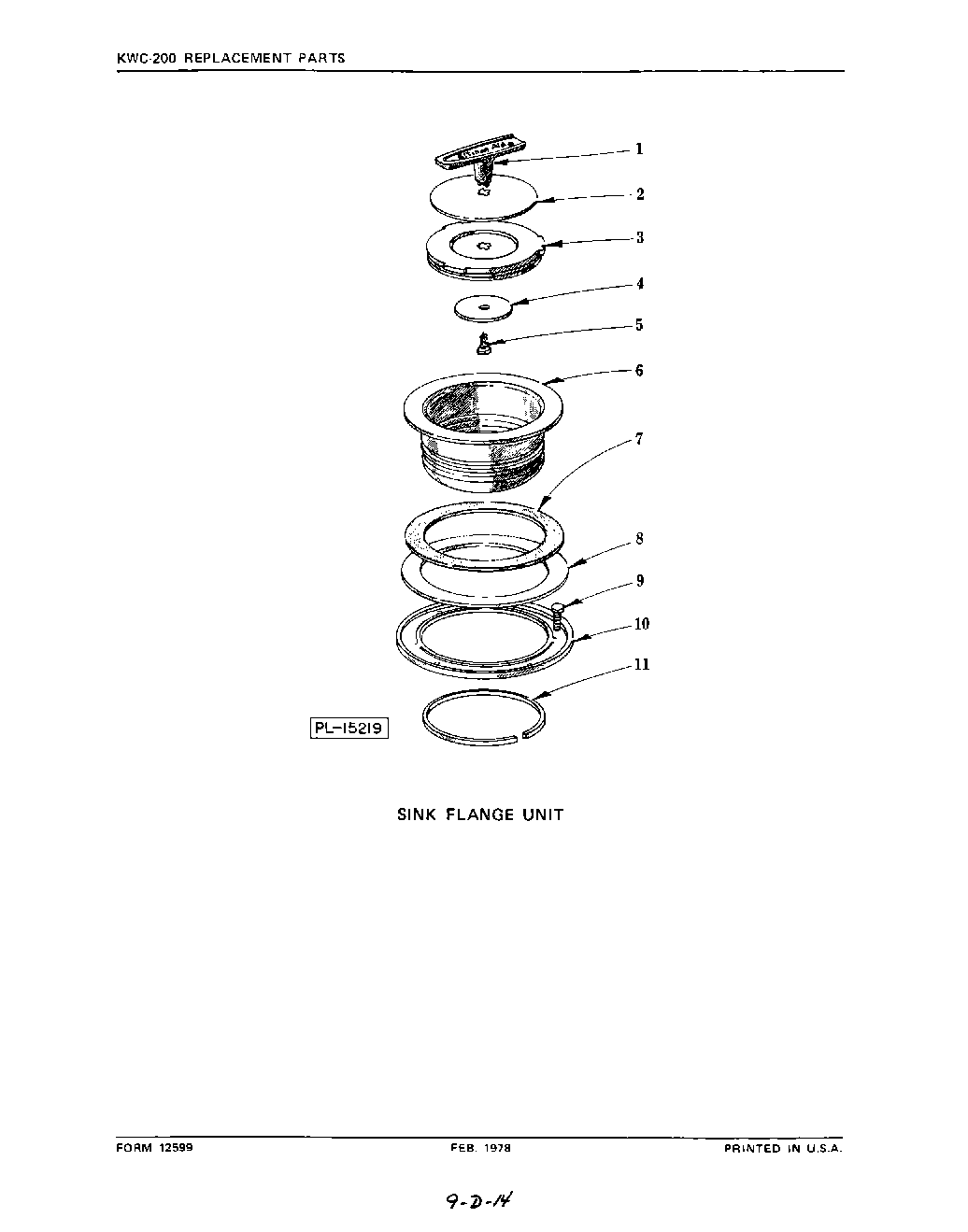

KWC200C 03 – SECTION

Written by

Products

Position	Product
1	Handle – Closure
2	Plate – Cover
3	Seal – Closure
4	Support – Seal
5	Self-Tapping Screw – No.8-32 x 1/2“ Pan Hd., Type 1
6	Flange – Sink
7	Gasket – Paperboard
8	Washer – Pressure
9	Screw – Jack
10	Plate – Support
11	Ring – Snap
