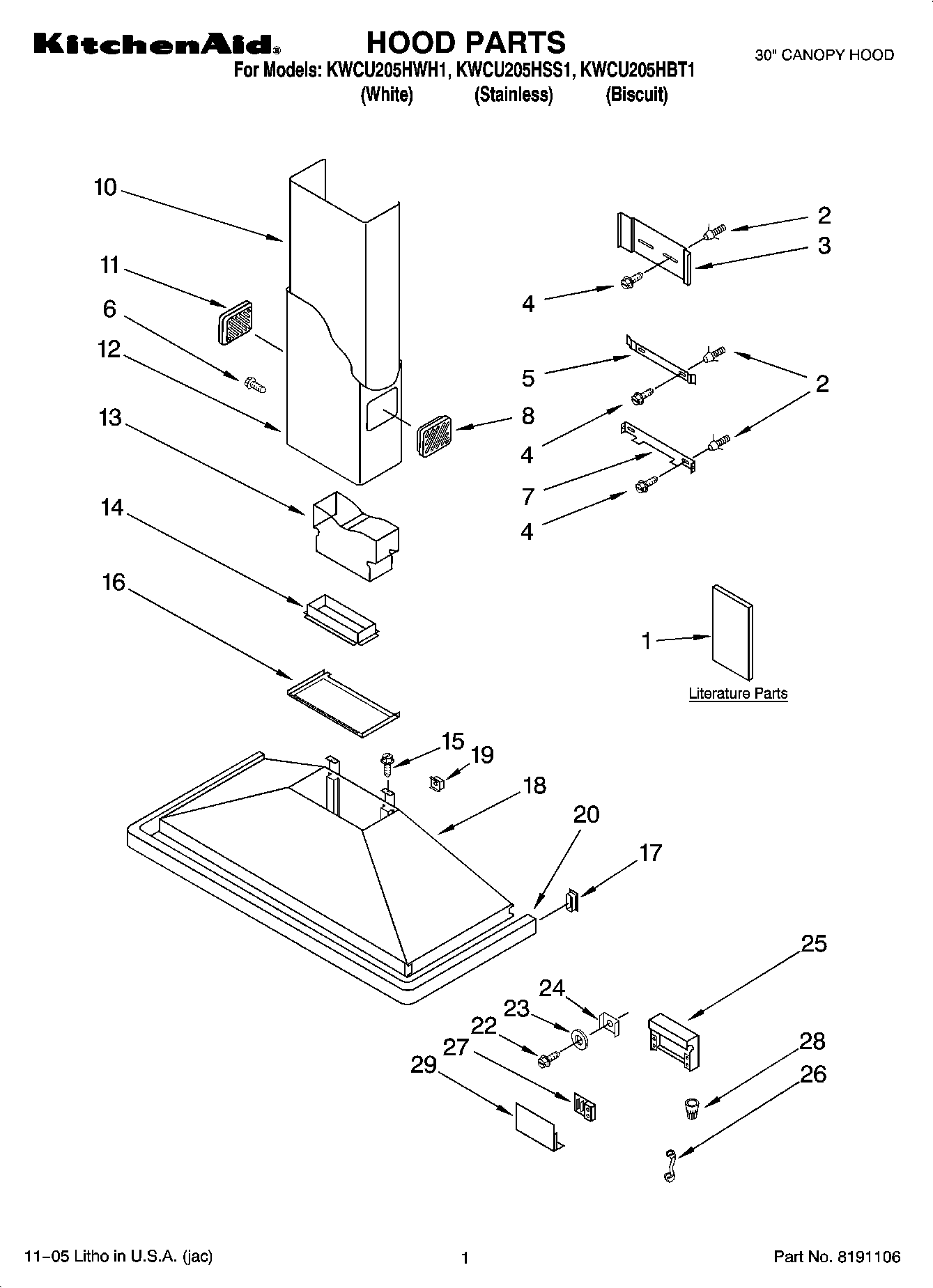

KWCU205HWH1 01 – HOOD PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & Care Guide
2	Plug
3	Bracket
4	Screw
5	Bracket, Middle
6	SCREW
7	Bracket, Wall
8	Air – Outlet (Right) (Biscuit Model)
8	Air – Outlet (Right) (Stainless Model)
8	Air – Outlet (Right) (White Model)
10	Pipe, Fitting (Upper) (Stainless Model)
10	Pipe, Fitting (Upper) (White Model)
10	Pipe, Fitting (Upper) (Biscuit Model)
11	Air – Outlet (Left) (White Model)
11	Air – Outlet (Left) (Biscuit Model)
11	Air – Outlet (Left) (Stainless Model)
12	Pipe Fitting (Ductless) (Stainless Model)
12	Pipe Fitting (Ductless) (White Model)
12	Pipe Fitting (Ductless) (Stainless Model)
12	Pipe Fitting (Ductless) (Biscuit Model)
12	Pipe Fitting (Ductless) (Biscuit Model Pipe Fitting (Duct))
12	Pipe Fitting (Ductless) (White Model)
13	Air Duct
14	Damper
15	Screw
16	Cover, Diffuser
17	End Cap (Biscuit Model)
17	End Cap (White Model)
17	End Cap (Stainless Model)
18	Hood (Stainless Model)
18	Hood (White Model)
18	Hood (Biscuit Model)
19	Nut
20	Trim (Biscuit Model)
20	Trim (Stainless Model)
20	Trim (White Model)
22	Screw
23	Washer
24	Guide, Ground
25	Box, Distribution
26	Strain Relief
27	Control, Speed
28	Wire Nut
29	Cover, Box
