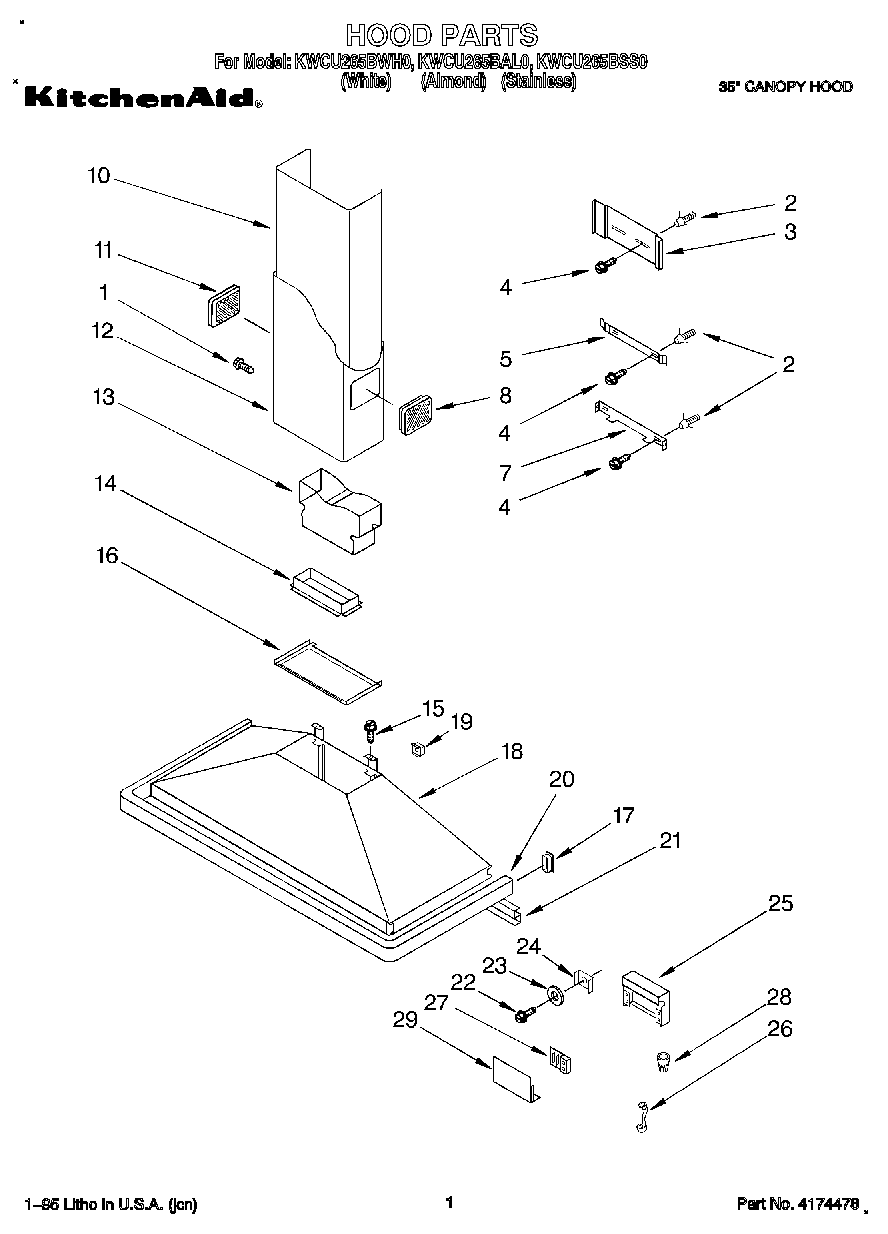

KWCU265BAL0 01 – SECTION

Products

Position	Product
1	SCREW
2	Plug
3	Bracket
4	Screw
5	Bracket, Middle
7	Bracket, Wall
8	Air – Outlet (Right) (White Model)
8	Air – Outlet (Right) (Stainless Model)
8	Air – Outlet (Right) (Almond Model)
10	Pipe, Fitting (Upper) (Almond Model)
10	Pipe, Fitting (Upper) (Stainless Model)
10	Pipe, Fitting (Upper) (White Model)
11	Air – Outlet (Left) (Almond Model)
11	Air – Outlet (Left) (Stainless Model)
11	Air – Outlet (Left) (White Model)
12	Pipe Fitting (Ductless) (Stainless Model)
12	Pipe Fitting (Ductless) (White Model)
12	Pipe Fitting (Ductless) (White Model)
12	Pipe Fitting (Ductless) (Almond Model Pipe Fitting (Duct))
12	Pipe Fitting (Ductless) (Almond Model)
12	Pipe Fitting (Ductless) (Stainless Model)
13	Air Duct
14	Damper
15	Screw
16	Cover, Diffuser
17	End Cap (Stainless Model)
17	End Cap (White Model)
18	Hood (Almond Model)
18	Hood (White Model)
18	Hood (Stainless Model)
19	Nut
20	Trim (Almond Model)
20	Trim (Stainless Model)
20	Trim (White Model)
21	Support, Wiring
22	Screw
23	Washer
24	Guide, Ground
25	Box, Distribution
26	Strain Relief
27	Control, Speed
28	Wire Nut
29	Cover, Box
