KWCU265BAL0 02 – SECTION

Products

Position	Product
	4396565 Whirlpool Filter
	Use & Care Guide
	Almond, Ductless Kit
	Wiring Diagram
	Ductless Kit (White Model)
	Ductless Kit (Stainless Model)
	Rear
	Side
	Rack Hanger Kits Utensil Bars
	Backsplash
	Wire Racks

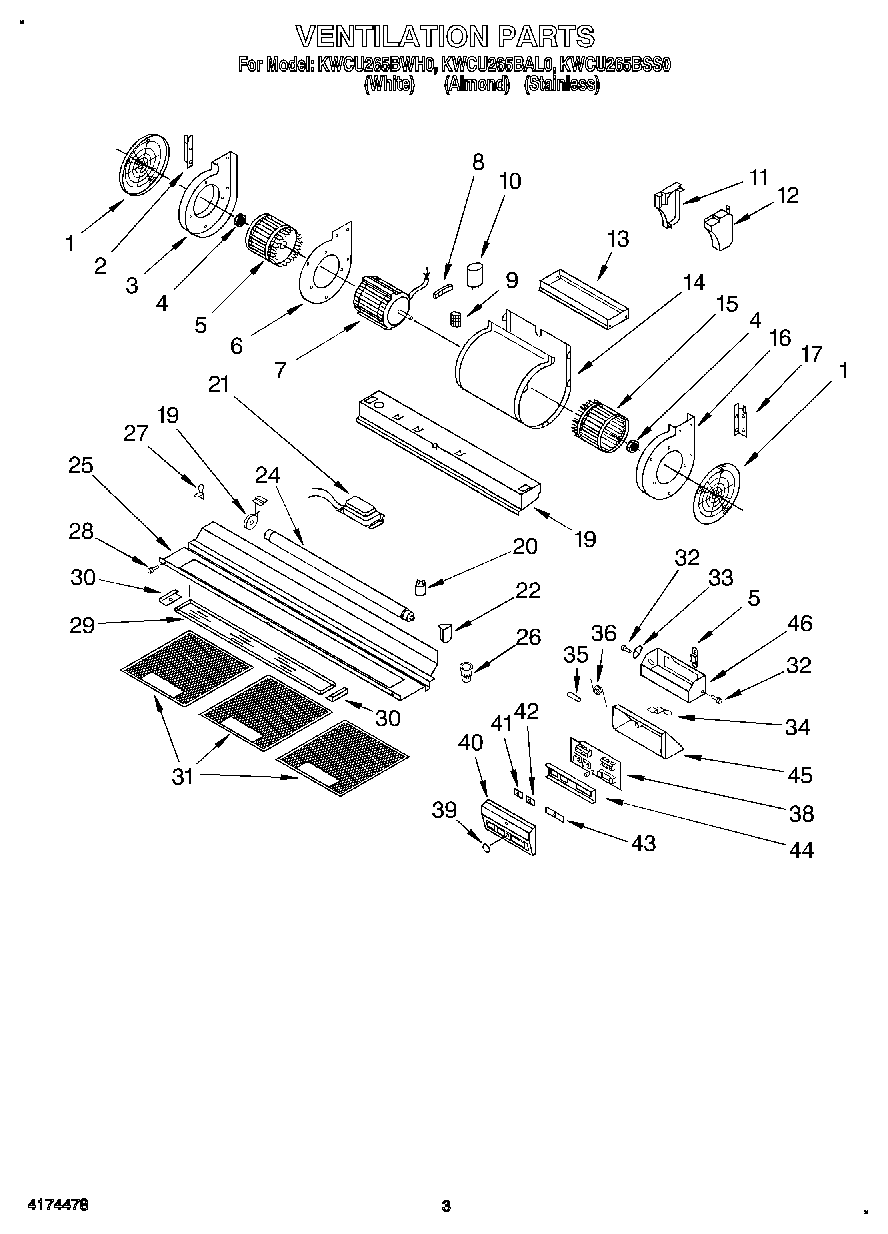

1	Filter, Charcoal
2	Bracket, Diffuser
3	Cover, Blower
4	Nut
5	Impeller
6	Motor Mount
7	Motor
8	Block, Capacitor
9	Terminal
10	Capacitor
11	Box, Electric
12	Cover, Box
13	Extension, Diffuser
14	Housing, Motor
15	Impeller
16	Cover, Blower
17	Bracket
19	Lampholder
20	Starter
21	Ballast
22	Lamp Holder
23	Support, Light
24	Lamp
25	Support, Light (White Model)
25	Support, Light (Almond Model)
25	Support, Light (Stainless Model)
26	Wire Nut
27	Clamp, Wire
28	Pin
29	Glass, Light
30	Side, Lighting
31	WPW10368696 Whirlpool Grease Filter
32	Pin
33	Lever, Switches
34	Clamp, Cable
35	Spring, Pin
36	Spring
37	Clamp, Cable
38	Board, Control
39	Cover, Lamp
40	Cover, Box
41	Actuator, Lighting
42	Actuator, Motor
43	Actuator, 1-2-3
44	Support, Actuators
45	Control Box
46	Housing, Control Box
