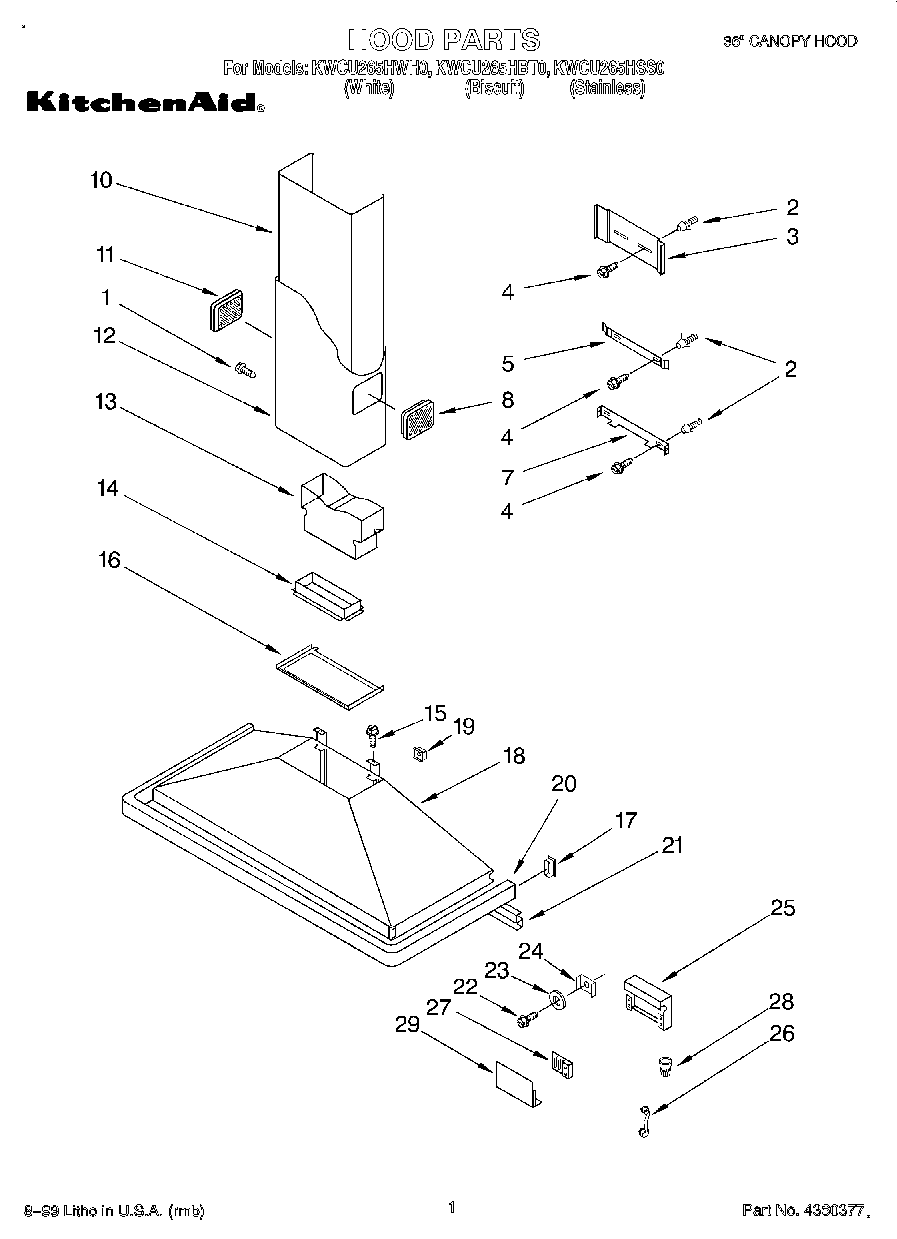

KWCU265HSS0 01 – SECTION

Products

Position	Product
1	SCREW
2	Plug
3	Bracket
4	Screw
5	Bracket, Middle
7	Bracket, Wall
8	Air – Outlet (Right) (Stainless Model)
8	Air – Outlet (Right) (Biscuit Model)
8	Air – Outlet (Right) (White Model)
10	Pipe, Fitting (Upper) (White Model)
10	Pipe, Fitting (Upper) (Stainless Model)
10	Pipe, Fitting (Upper) (Biscuit Model)
11	Air – Outlet (Left) (Biscuit Model)
11	Air – Outlet (Left) (Stainless Model)
11	Air – Outlet (Left) (White Model)
12	Pipe Fitting (Ductless) (Biscuit Model)
12	Pipe Fitting (Ductless) (Biscuit Model Pipe Fitting (Duct))
12	Pipe Fitting (Ductless) (Stainless Model)
12	Pipe Fitting (Ductless) (Stainless Model)
12	Pipe Fitting (Ductless) (White Model)
12	Pipe Fitting (Ductless) (White Model)
13	Air Duct
14	Damper
15	Screw
16	Cover, Diffuser
17	End Cap (White Model)
17	End Cap (Stainless Model)
17	End Cap (Biscuit Model)
18	Hood (White Model)
18	Hood (Biscuit Model)
18	Hood (Stainless Model)
19	Nut
20	Trim (White Model)
20	Trim (Stainless Model)
20	Trim (Biscuit Model)
21	Support, Wiring
22	Screw
23	Washer
24	Guide, Ground
25	Box, Distribution
26	Strain Relief
27	Control, Speed
28	Wire Nut
29	Cover, Box
