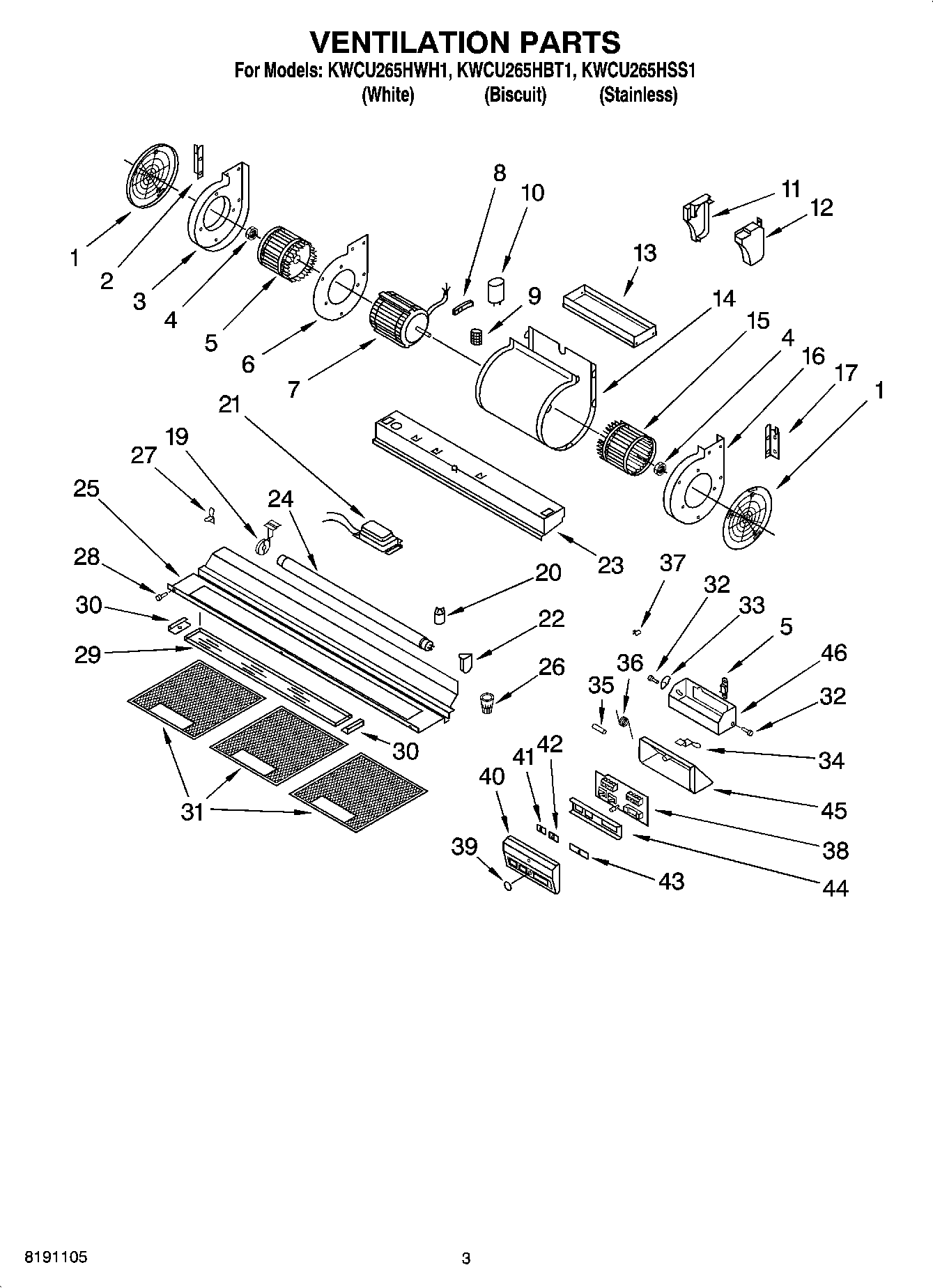

KWCU265HWH1 02 – VENTILATION PARTS

Products

Position	Product
1	Filter, Charcoal
2	Bracket, Diffuser
3	Cover, Blower
4	Nut
5	Impeller
6	Motor Mount
7	Motor
8	Block, Capacitor
9	Terminal
10	Capacitor
11	Box, Electric
12	Cover, Box
13	Extension, Diffuser
14	Housing, Motor
15	Impeller
16	Cover, Blower
17	Bracket
19	Lampholder
20	Starter
21	Ballast
22	Lamp Holder
23	Support, Light
24	Lamp
25	Support, Light (White Model)
25	Support, Light (Stainless Model)
25	Support, Light (Biscuit Model)
26	Wire Nut
27	Clamp, Wire
28	Pin
29	Glass, Light
30	Side, Lighting
31	WPW10368696 Whirlpool Grease Filter
32	Pin
33	Lever, Switches
34	Clamp, Cable
35	Spring, Pin
36	Spring
37	Clamp, Cable
38	Board, Control
39	Cover, Lamp
40	Cover, Box
41	Actuator, Lighting
42	Actuator, Motor
43	Actuator, 1-2-3
44	Support, Actuators
45	Control Box
46	ACCESSORY PARTS
46	LITERATURE PARTS
46	Housing, Control Box
46	Ductless Kit (White Model)
46	Backsplash
46	Wire Racks
46	Rack Hanger Kits Utensil Bars
46	Side
46	Rear
46	Ductless Kit (Stainless Model)
46	Ductless Kit (Biscuit Model)
46	Wiring Diagram
46	Use & Care Guide
46	4396565 Whirlpool Filter
46	Ductless Kit
