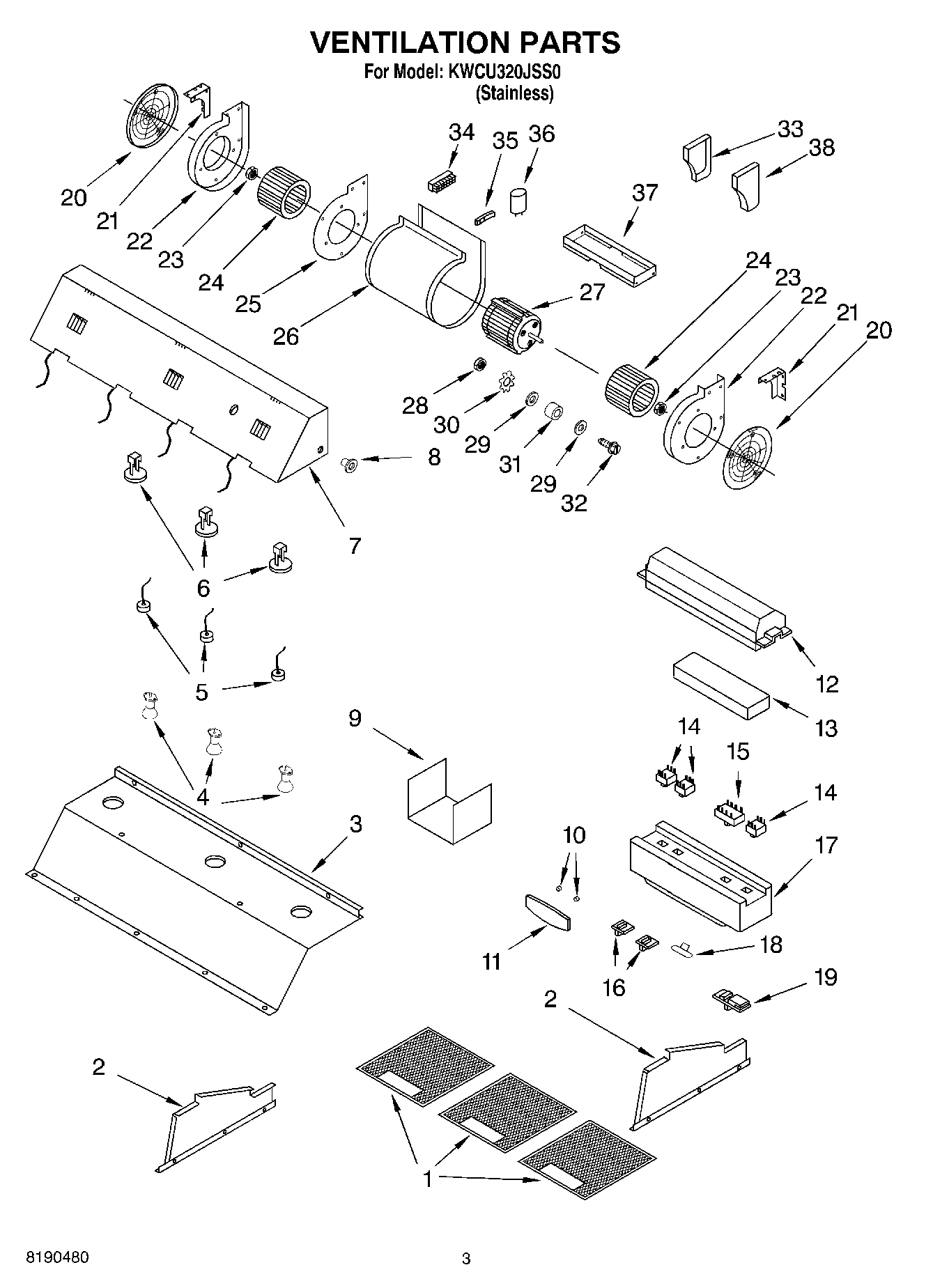

KWCU320JSS0 02 – VENTILATION PARTS

Products

Position	Product
1	WPW10252087 Whirlpool Range Hood Grease Filter
2	Support, Side (Right)
2	Support. Side (Left)
3	Support, Light
4	WPW10252088 Whirlpool Light Bulb
5	Holder, Bulb
6	Support, Bulb (6)
7	Cover, Light
8	Relief, Strain
9	Box, Wiring
10	Spacer
11	Nameplate
12	Cover, Switch
13	Support
14	W11731942 Whirlpool Slide Switch
15	WPW10252122 Whirlpool Switch Slide
16	Button, On/Off
17	Box, Control
18	Cover, Lamp
19	Button, Mtr Speed
20	Filter, Charcoal
21	Bracket, Diffuser (Left)
21	Bracket, Diffuser (Right)
22	Cover, Blower
22	Cover, Blower
23	Nut
24	Impeller
24	Impeller
25	Motor Mount
26	Housing, Motor
27	Motor, Blower Includes Grommets
28	Nut, Motor
29	Washer
30	Washer, Star
31	Spacer, Motor
32	Screw, Mtr Mount
33	Cover, Box
34	Block, Termial
35	Block, Capacitor
36	Capacitor
37	Extension, Diffuser
38	Wire Racks
38	Box, Electric
38	W10352735 Whirlpool Backsplash
38	Rack Hanger Kits Utensil Bars
38	Side
38	Rear
38	ACCESSORY PARTS
