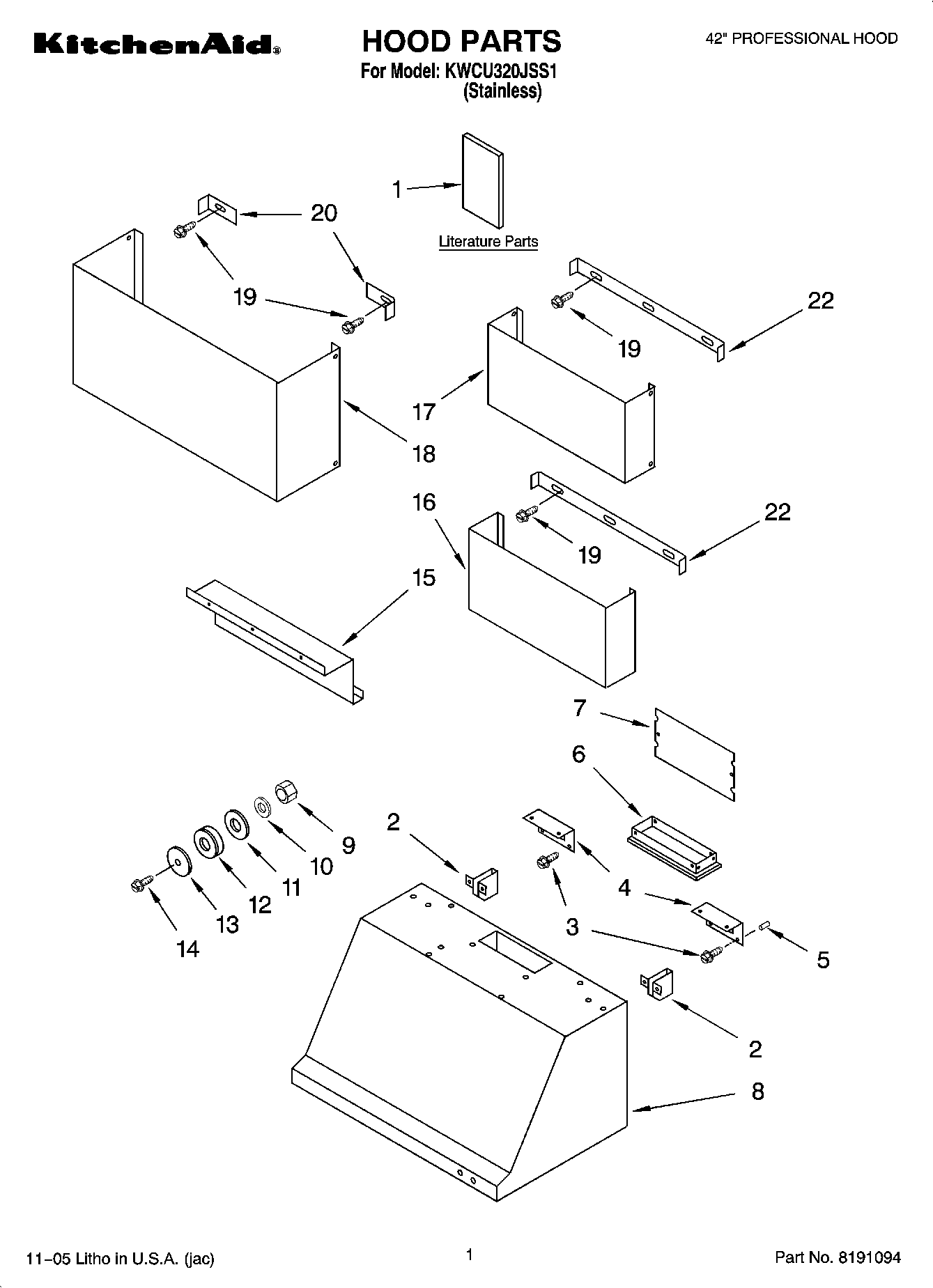

KWCU320JSS1 01 – HOOD PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & Care Guide
2	Bracket, Hood
3	Screw
4	Bracket, Mounting
5	Plug
6	Damper
7	Cover, Exhaust Outlet
8	Hood
9	Nut
10	98007193 Whirlpool Oven Washer
11	Plate (Rubber)
12	WPW10252120 Whirlpool Transformer
13	Plate (Nylon)
14	Screw
15	Support, Back
16	Chimney, Lower
17	Chimney, Upper
18	Chimney, 42“
19	Screw
20	Bracket, Chimney
22	Bracket, Upper
