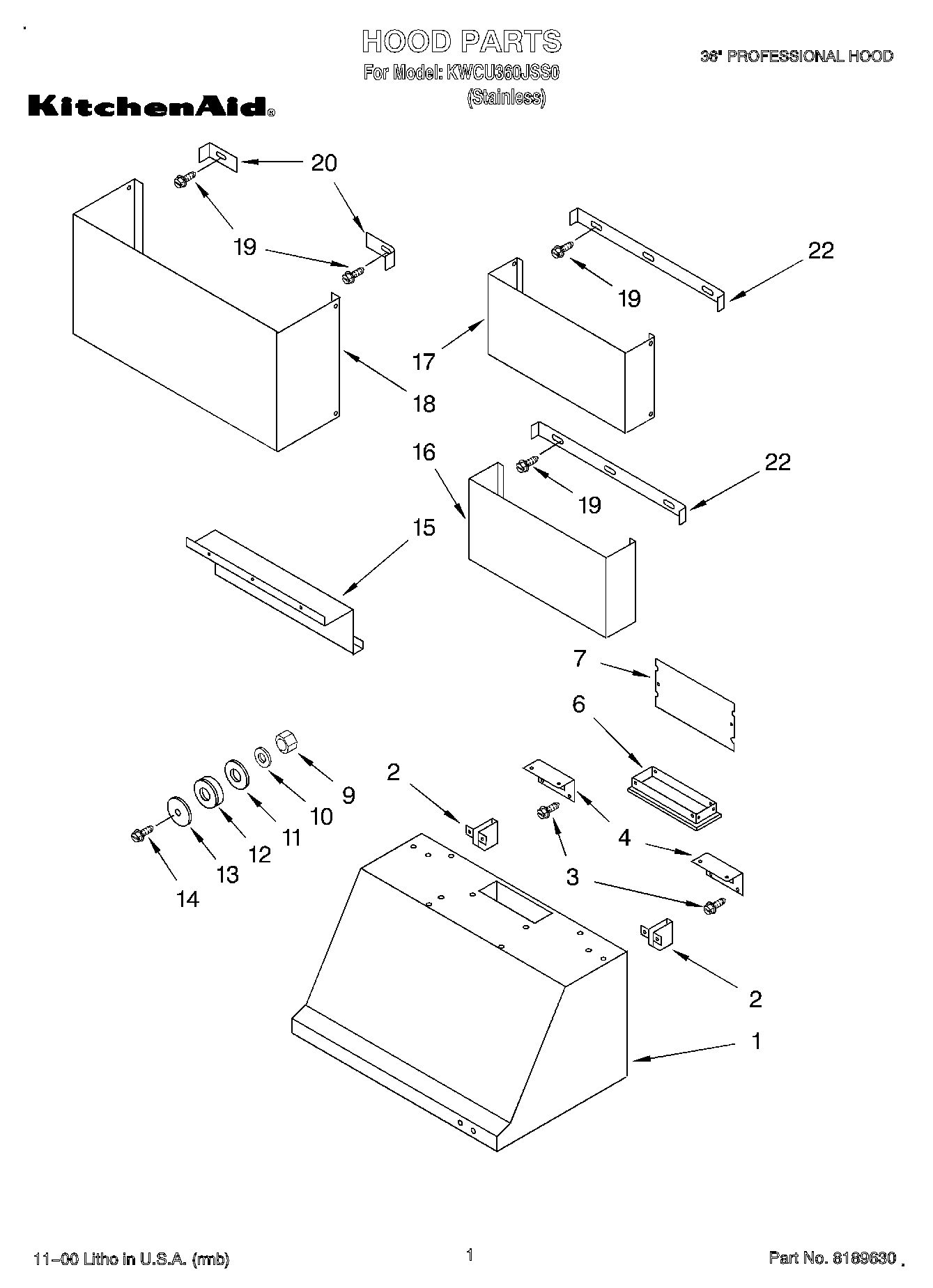

KWCU360JSS0 01 – SECTION

KWCU360JSS0 01 – SECTION

Written by

in

KWCU360JSS0 01 – SECTION

Products

Position	Product
1	Hood
2	Bracket, Hood
3	Screw
4	Bracket, Mounting
5	Plug
6	Damper
7	Cover, Exhaust Outlet
8	Relief, Strain
9	Nut
10	98007193 Whirlpool Oven Washer
11	Plate (Rubber)
12	WPW10252120 Whirlpool Transformer
13	Plate (Nylon)
14	Screw
15	Support, Back
16	Chimney, Lower
17	Chimney, Upper
18	Chimney, 36“
19	Screw
20	Bracket, Chimney
22	Bracket, Upper
