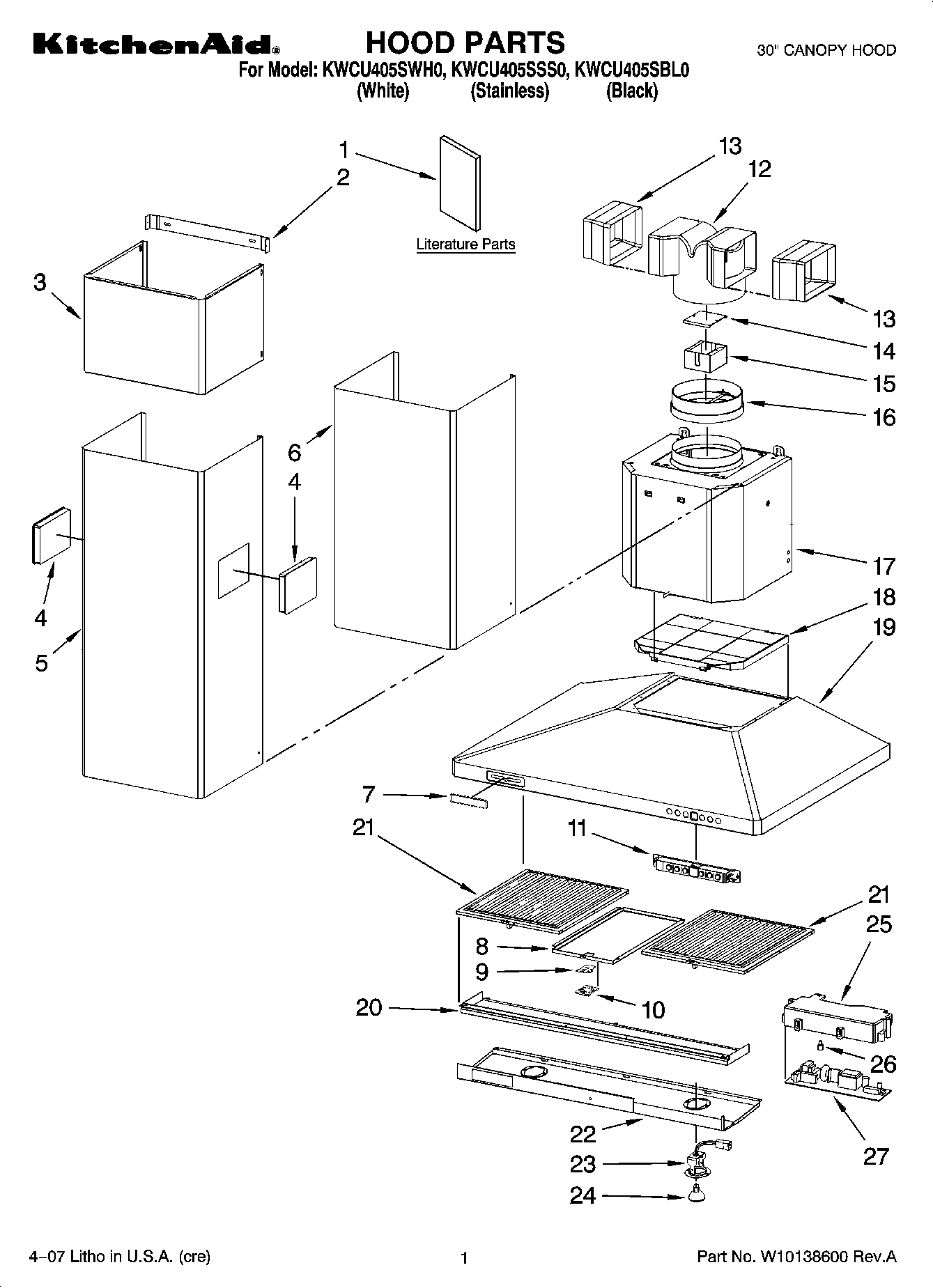

KWCU405SSS0 01 – HOOD PARTSadmin2025-04-26T12:42:43+00:00KWCU405SSS0 01 – HOOD PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 2 | Bracket, Upper |
| 3 | Pipe, Fitting (Upper) (S.Steel) |
| 3 | Pipe, Fitting (Upper) (White) |
| 3 | Pipe, Fitting (Upper) (Black) |
| 4 | Air-Outlet (LH Black) |
| 4 | Air-Outlet (RH Black) |
| 4 | Air - Outlet (Left) (White Model) |
| 4 | Air - Outlet (Right) (White Model) |
| 4 | Air - Outlet (Right) (Stainless Model) |
| 4 | Air - Outlet (Left) (Stainless Model) |
| 5 | Pipe Fitting (Ductless) (S.Steel) |
| 5 | Pipe Fitting (Ductless) (Black) |
| 5 | Pipe Fitting (Ductless) (White) |
| 6 | Pipe Fitting (Ducted) (White) |
| 6 | Pipe Fitting (Ducted) (S.Steel) |
| 6 | Pipe Fitting (Ducted) (Black) |
| 7 | W10021850 Whirlpool Dishwasher Nameplate |
| 7 | W10021870 Whirlpool Nameplate |
| 7 | W10021860 Whirlpool Dishwasher Nameplate |
| 8 | Spacer, Filter |
| 9 | Bolt |
| 10 | Filter, Latch |
| 11 | Board, Control |
| 12 | Duct, Air |
| 13 | Duct, Air - Spacer |
| 14 | Cover, Wiring |
| 15 | Box, Wiring |
| 16 | Damper |
| 17 | Casing, Motor (Not Serviced) |
| 18 | Hood, Upper (Not Serviced) |
| 19 | Hood (S.Steel) |
| 19 | Hood (White) |
| 19 | Hood (Black) |
| 20 | Support, Filter (White) |
| 20 | Support, Filter (Black) |
| 20 | Support, Filter (S.Steel) |
| 21 | WPW10252087 Whirlpool Range Hood Grease Filter |
| 22 | Support, Light (S.Steel) |
| 22 | Support, Light (White) |
| 22 | Support, Light (Black) |
| 23 | W10252116 Whirlpool Socket |
| 24 | WPW10252088 Whirlpool Light Bulb |
| 25 | Box, Control |
| 26 | Knob, Control |
| 27 | Control, Motor |
