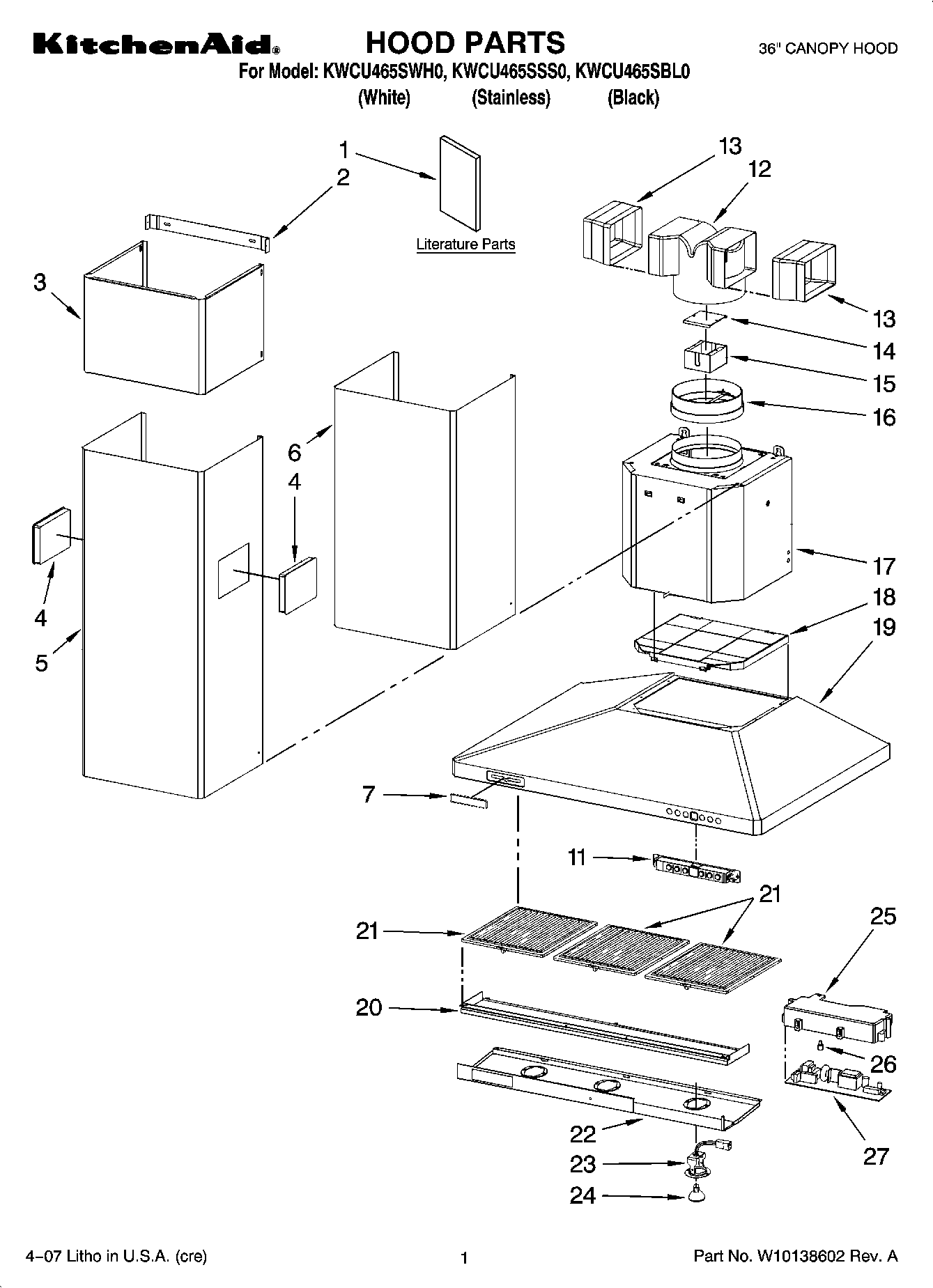

KWCU465SWH0 01 – HOOD PARTS

Products

Position	Product
1	Use & Care Guide
2	Bracket, Upper
3	Pipe, Fitting (Upper) (White)
3	Pipe, Fitting (Upper) (Black)
3	Pipe, Fitting (Upper) (S.Steel)
4	Air-Outlet (LH Black)
4	Air-Outlet (RH Black)
4	Air – Outlet (Left) (White Model)
4	Air – Outlet (Right) (Stainless Model)
4	Air – Outlet (Right) (White Model)
4	Air – Outlet (Left) (Stainless Model)
5	Pipe Fitting (Ductless) (Black)
5	Pipe Fitting (Ductless) (S.Steel)
5	Pipe Fitting (Ductless) (White)
6	Pipe Fitting (Ducted) (Black)
6	Pipe Fitting (Ducted) (S.Steel)
6	Pipe Fitting (Ducted) (White)
7	W10021850 Whirlpool Dishwasher Nameplate
7	W10021870 Whirlpool Nameplate
7	W10021860 Whirlpool Dishwasher Nameplate
11	Board, Control
12	Duct, Air
13	Duct, Air – Spacer
14	Cover, Wiring
15	Box, Wiring
16	Damper
17	Casing, Motor (Not Serviced)
18	Hood, Upper (Not Serviced)
19	Hood (Black)
19	Hood (S.Steel)
19	Hood (White)
20	Support, Filter (White)
20	Support, Filter (Black)
20	Support, Filter (S.Steel)
21	WPW10252087 Whirlpool Range Hood Grease Filter
22	Support, Light (S.Steel)
22	Support, Light (White)
22	Support, Light (Black)
23	W10252116 Whirlpool Socket
24	WPW10252088 Whirlpool Light Bulb
25	Box, Control
26	Knob, Control
27	Control, Motor
