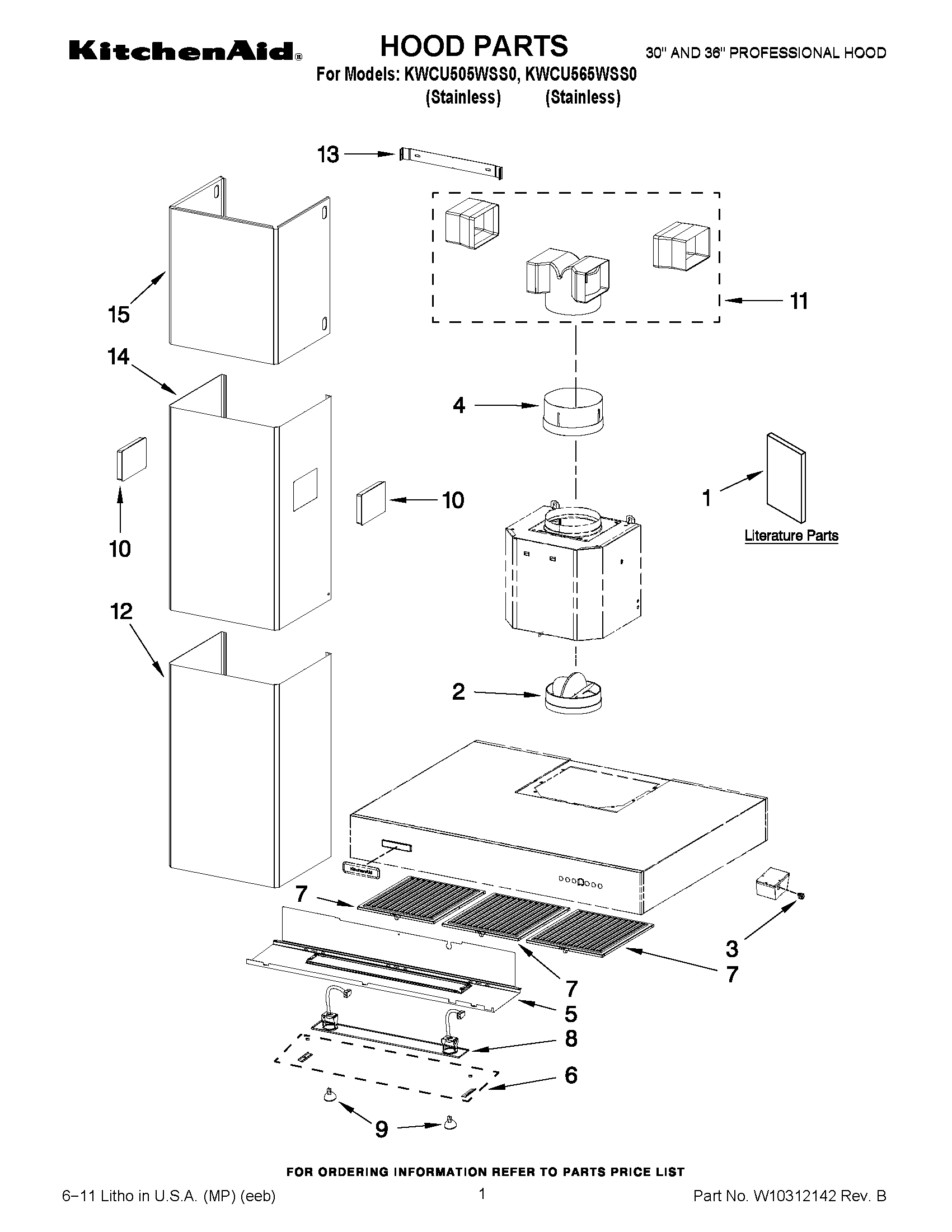

KWCU565WSS0 01 – HOOD PARTS

Written by

Products

Position	Product
1	USE & CARE GUIDE
2	DAMPER, HOOD
3	CLAMP, CABLE
4	EXTENSION,DIFFUSER
5	SUPPORT, LAMPS (30“ MODEL)
5	SUPPORT, LAMPS (36“ MODEL)
6	BRACKET, LIGHT SUPPORT
7	WPW10252087 Whirlpool Range Hood Grease Filter
8	SOCKET, BULB
9	WPW10252088 Whirlpool Light Bulb
10	GRID, DIRECTIONAL
11	KIT, DIVERTER
12	CHIMNEY, LOWER
13	BRACKET, CHIMNEY
14	CHIMNEY, LOWER
15	CHIMNEY, UPPER
