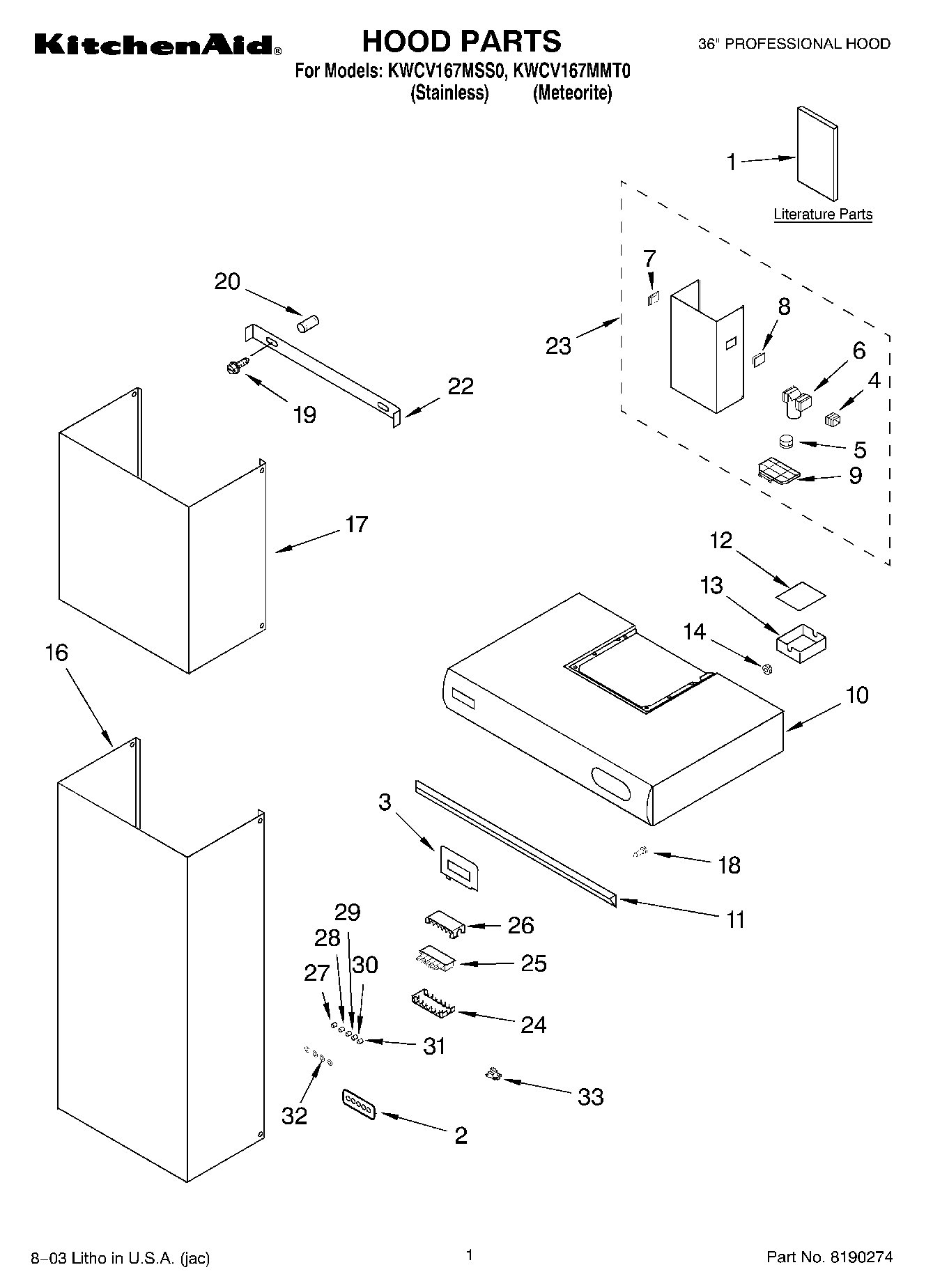

KWCV167MMT0 01 – HOOD PARTS

Products

Position	Product
1	Literature Parts (Owners Manual)
2	Bezel (Stainless)
2	Bezel (Meteorite)
3	Panel, Control
4	Duct, Air – Spacer
5	Duct, Air-Extnsion
6	Duct, Air
7	Air – Outlet (Left) (Stainless Model)
8	Air – Outlet (Right) (Stainless Model)
9	8285507 Whirlpool Range Hood Charcoal Filter
10	Casing Assembly (Meteorite)
10	Casing Assembly (Stainless)
11	Support, Filter (Stainless)
11	Support, Filter (Meteorite)
12	Cover, Wiring
13	Box, Wiring
14	Relief, Strain
16	Chimney, Lower Ducted (Meteorite)
16	Chimney, Lower Ducted (Stainless)
17	Chimney, Upper (Meteorite)
17	Chimney, Upper (Stainless)
18	Pin
19	Screw
20	Plug
22	Bracket, Upper
23	Ductless Kit (Meteorite)
23	Ductless Kit (Stainless)
24	Housing, Control
25	Control, Motor
26	Housing, Control
27	Button
28	Button
29	Button
30	Button
31	Button
32	Trim, Button (4)
33	Connector
