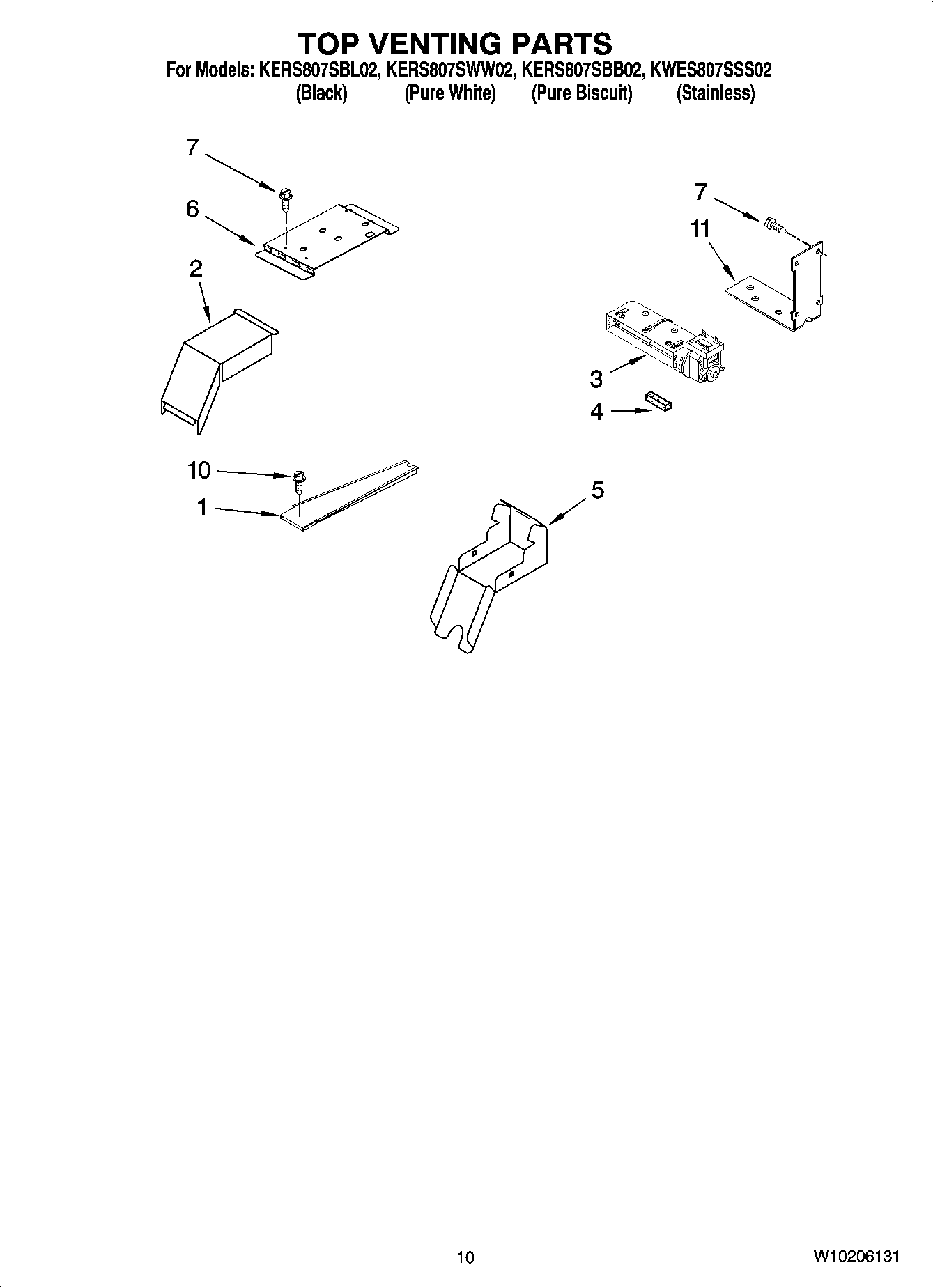

KWES807SSS02 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	Miscellaneous
	9757778 Whirlpool Oven Bushing
	261900 Whirlpool Microwave Spray
	PROCTECTOR, EDGE
	WPL 591014
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	9763481 Whirlpool Oven Wire Harness
	HARNESS, COMMUNICATION
	WIRING HARNESS PARTS
	SPLICING WIRES–25FT. LENGTH
	ADHESIVE
	W10157935 Whirlpool Wire Harness
	Harness, Main
	Harness, Cooktop Electric
	Edge Protector (19mm)
	Grommet, Flex
	Wire (14 Ga. 150 c Green)
	350930 Whirlpool White Spray Paint
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	4450800 Whirlpool Oven Screw
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	W11447673 Whirlpool Range Tip Anchor
	Spacer, Harness
	Wire (14 Ga. 150 c Brown)
	W11209404 Whirlpool Wire Harness
	Wire (14 Ga. 150 c Blue)
	Clip, Ground Wire
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	Bracket, Terminal Box
10	Screw
11	WP4455352 Whirlpool Mounting Bracket
