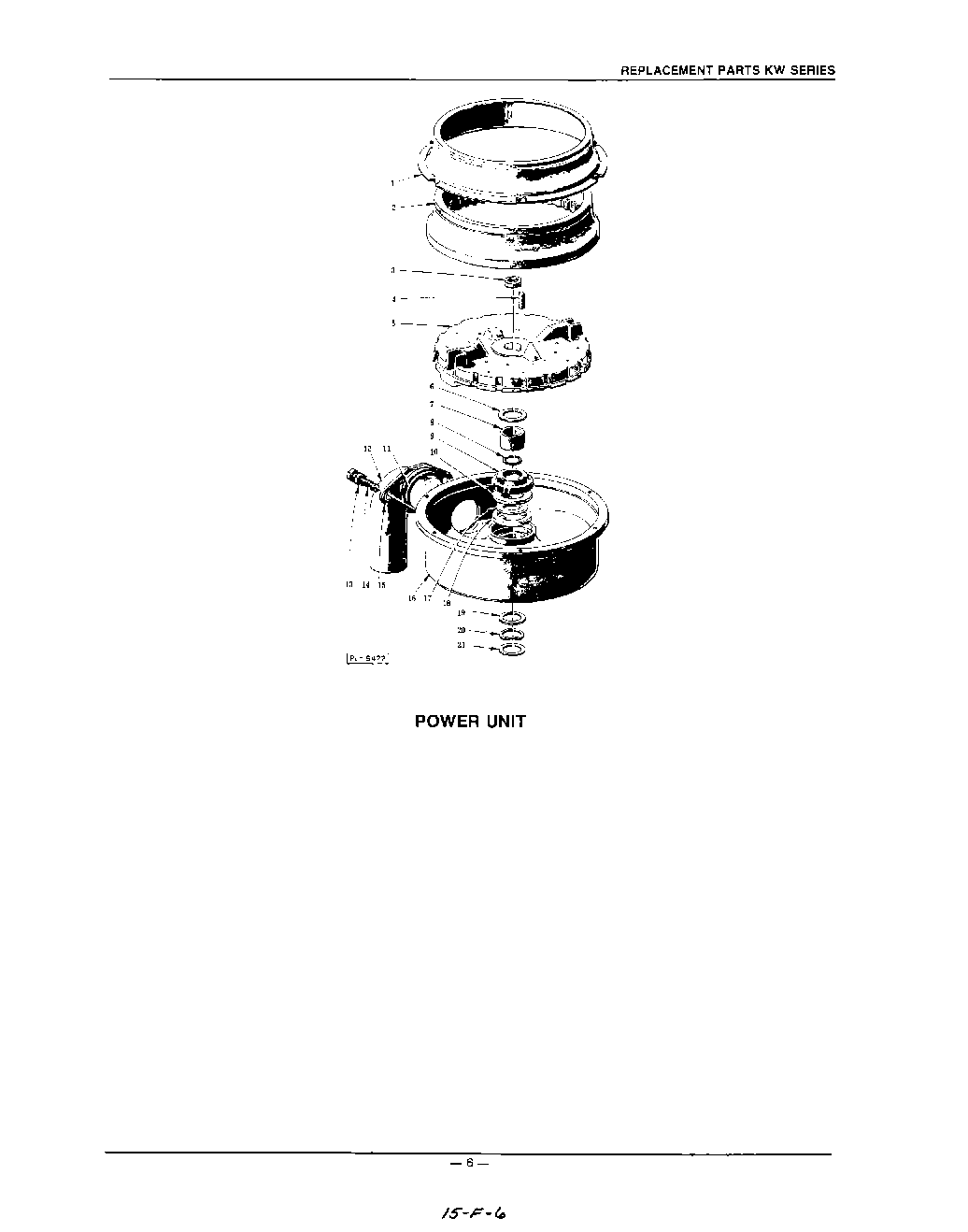

KWI200A 04 – POWER

Products

Position	Product
1	Seal – Shredder Ring
2	Ring – Shredder
3	Jam Nut 5/8-18 Hex Fin
4	Lock – Jam Nut
5	Flywheel
6	Washer – Wear
7	Sleeve – Seal
8	“O“ Ring
9	Seal – Water
10	Felt (Lubricant)
11	Seal – Spout
12	Spout & Seal Assy. (Incls. item 11)
13	Full Nut 1/4-20 Hex Fin
14	Screw – Special
15	Flange – Spout
16	Lower Housing & Bearing Assy
17	Washer – Upper Thrust
18	Felt Wiper Kit
19	Washer (Nylon)
20	Washer – Wavy
21	Seal Kit (Incls. items 6, 7, 8, 9, 10 & 17 thru 21)
21	Seal & Lower Housing Kit (Incls. items 6, 7, 8, 9, 10 & 16 thru 21)
21	Flywheel Assy. Kit (Incls. items 5 & 6)
21	Washer
21	Spout Screw Assy. (Incls. items 13 & 14)
