KWPSHXW0 01 – SECTION

Products

Position	Product
	Use & Care Guide- Installation Inst.
	Faucet Kit, Touch Flo – White Mdl.
	KitchenAid Water Pump, Complete
	Faucet Assembly Touch-Flo (Chrome)
	1/4“ Union Tee
	Tubing, Plastic (3/8 x 50 FT.)
	3/8“ Union Elbow
	1/4“ Union Elbow
	Tubing, Plastic (1/4 x 50 FT.)
	WP2198677 Whirlpool Refrigerator Connector

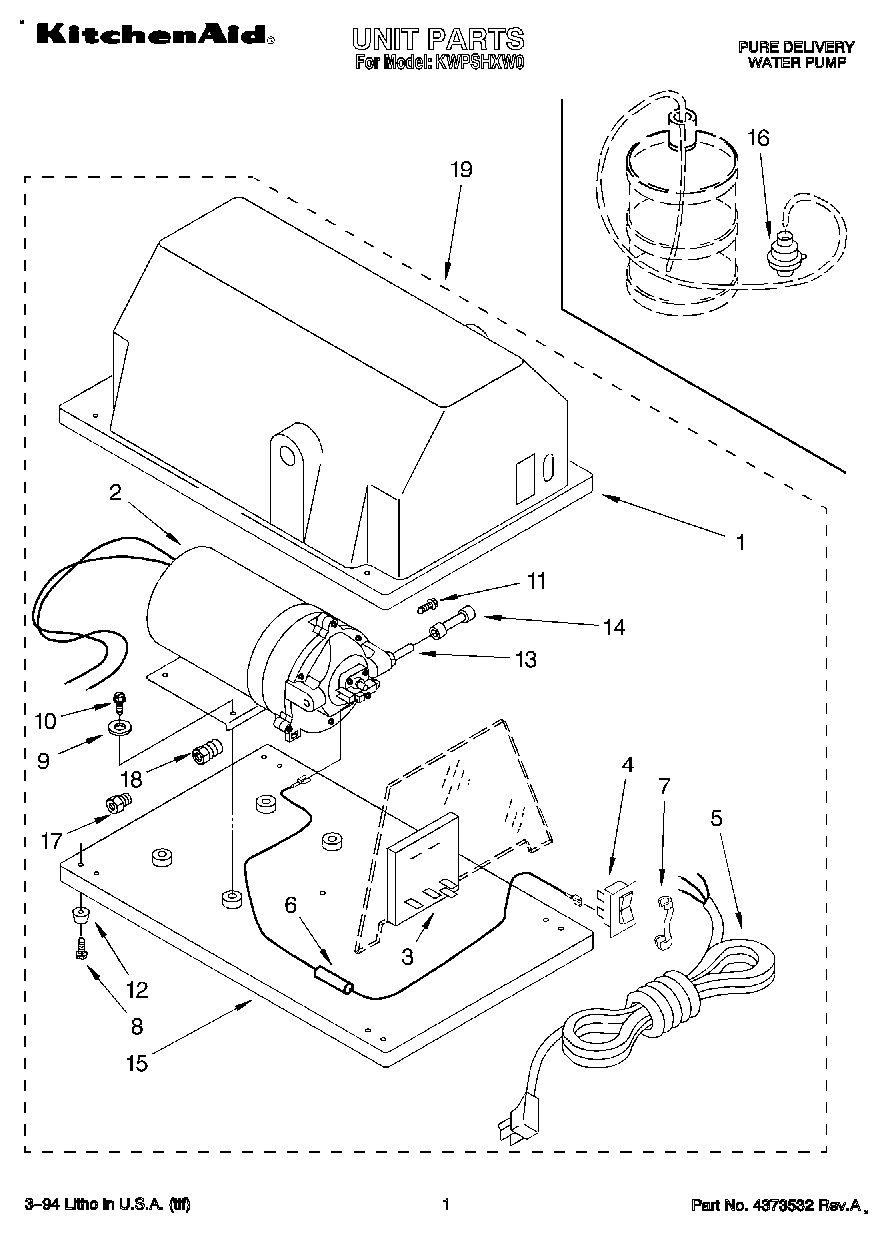

	Repair Parts List
1	Housing, Cover
2	Pump, Motor and Pressure Switch
3	Timer Assy
4	Switch, Off/On
5	Cord, Plug Asm.
6	Fuse Asm.
7	Strain Relief
9	Washer No.10 (4)
10	Screw, No.10-19 x 7/8 (4)
11	Screw, Ground No.6 x 3/8
12	Foot (4)
13	Stem Adaptor
14	WP4373559 Whirlpool Fitting
15	Base, KitchenAid
16	Cap, Water Bottle
17	3/8“ Male Connector
18	Adapter, 3/8
