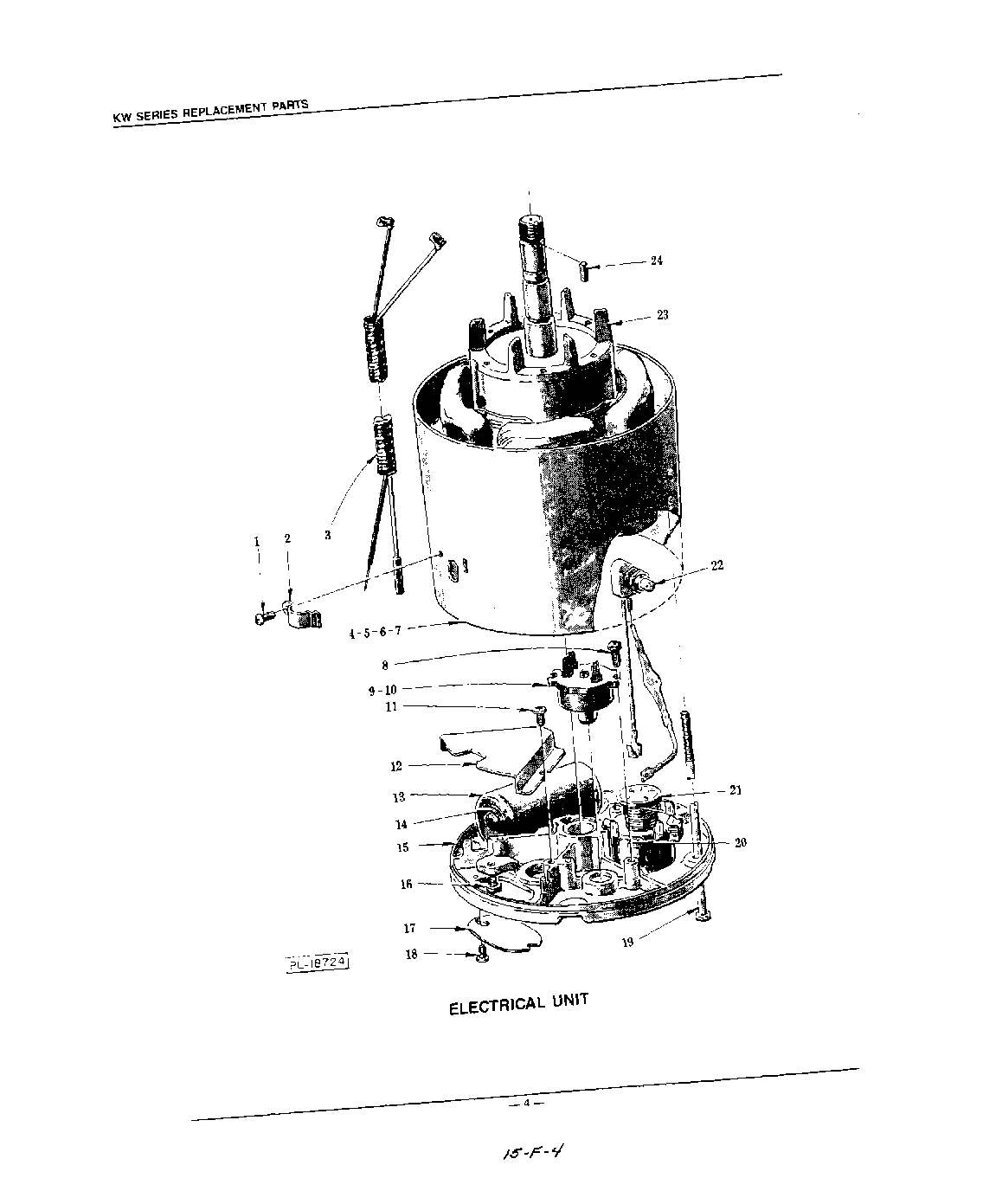

| 1 | Self-Tapping Screw 8 x 1/2 Phil. Pan Hd., Type B |
| 2 | xClamp - Conduit |
| 3 | xConduit Assy |
| 4 | xxStator Assy. (115 V., 60 Hz.) (KWE) |
| 5 | xStator Assy. (115 V., 60 Hz.) (KWD) |
| 6 | xxStator Assy. (115 V., 60 Hz.) (KWI) |
| 7 | xStator Assy. (115 V., 60 Hz.) (KWS) |
| 8 | Screw Assy. (Protector) |
| 9 | xxProtector - Overload (Manual) (115 V., 60 Hz.) |
| 10 | xProtector - Overload (Automatic) (115 V.,60 Hz.) |
| 12 | Barrier - Electrical Enclosure |
| 13 | Capacitor (115 V., 60 Hz.) |
| 14 | Clip - Capacitor Retainer |
| 15 | Bracket & Bearing Assy |
| 16 | Screw - Machine Grounding |
| 17 | Cover - Elec. Access |
| 18 | Self-Tapping Screw 6-32 x 5/16 Phil. Pan Hd., Type T |
| 19 | Mach. Screw 10-32 x 5 5/8 Indented Hex Hd |
| 20 | Self-Tapping Screw 6-32 x 1 Phil. Pan Hd., Type T |
| 21 | Reversing Relay Assy. (115 V., 60 Hz.) |
| 22 | Switch & Diode Assy. (115 V., 60 Hz.) (KWI-200/KWS-200) |
| 23 | Rotor Assy. (115 V., 60 Hz.) |
| 24 | Key - Sq. Mach |
