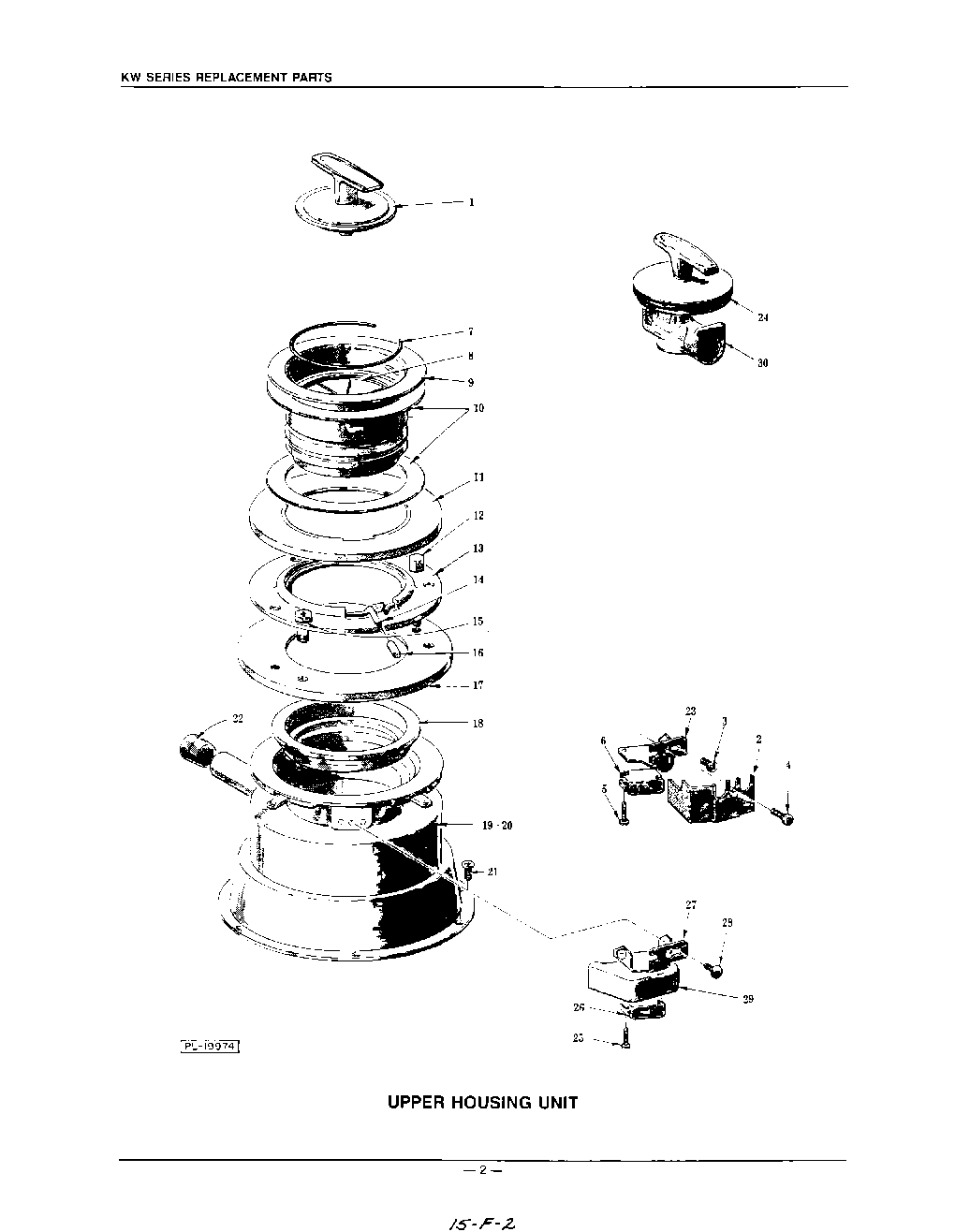

KWS200A 02 – UPPER HOUSING

Products

Position	Product
	Switch, Cover & Bracket Assy
	WPL 2427612
	Upper Housing Assy (Includes Items 20
	Closure Assy (Includes Items 1, 3, 4, 5, & 6)
1	Seal - Closure
7	xxRing - Splash Guard
8	xxSplash Guard Assy. (Incls. item 7)
9	Flange - Sink
10	Seal - Sink Flange
11	Washer - Pressure
12	Screw - Adjusting
13	Ring - Support
14	Snap Ring & Cap Assy. (Incls. item 16)
15	Screw - Hold-Down
16	Cap - Snap Ring
17	Plate - Pressure
18	Ring - Seal
19	xUpper & Lower Housing Assy
20	xUpper & Lower Housing Assy
21	Mach. Screw 8-32 x 7/16 Phil. Pan Hd
22	Plug - Drain (Dishwasher)
24	Seal Cover
26	Switch & Magnet Assembly
27	Bracket Switch Mounting
28	Screw
29	Cover Switch
30	Control Cover Assy
31	Self-Tapping Screw 8 x 3/8 Phil. Pan Hd., Type B
32	Self-Tapping Screw 8 x 1/2 Phil. Pan Hd., Type B
33	Self-Tapping Screw 4-40 x 5/8 Phil. Pan Hd., Type F
34	Rotor Assy.
