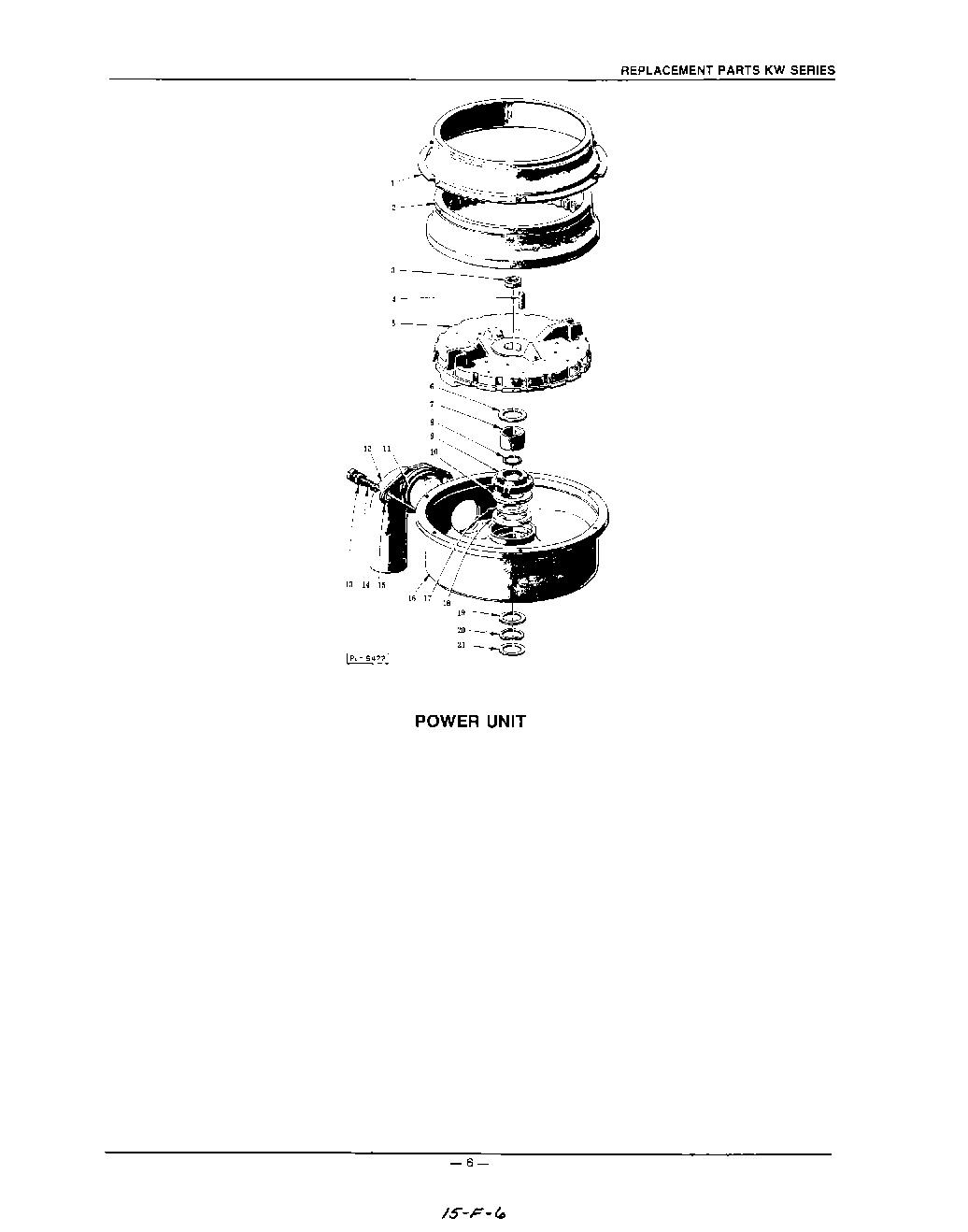

| 1 | Seal - Shredder Ring |
| 2 | Ring - Shredder |
| 3 | Jam Nut 5/8-18 Hex Fin |
| 4 | Lock - Jam Nut |
| 5 | Flywheel |
| 6 | Washer - Wear |
| 7 | Sleeve - Seal |
| 8 | ``O`` Ring |
| 9 | Seal - Water |
| 10 | Felt (Lubricant) |
| 11 | Seal - Spout |
| 12 | Spout & Seal Assy. (Incls. item 11) |
| 13 | Full Nut 1/4-20 Hex Fin |
| 14 | Screw - Special |
| 15 | Flange - Spout |
| 16 | Lower Housing & Bearing Assy |
| 17 | Washer - Upper Thrust |
| 18 | Felt Wiper Kit |
| 19 | Washer (Nylon) |
| 20 | Washer - Wavy |
| 21 | Seal Kit (Incls. items 6, 7, 8, 9, 10 & 17 thru 21) |
| 21 | Seal & Lower Housing Kit (Incls. items 6, 7, 8, 9, 10 & 16 thru 21) |
| 21 | Flywheel Assy. Kit (Incls. items 5 & 6) |
| 21 | Washer |
| 21 | Spout Screw Assy. (Incls. items 13 & 14) |
