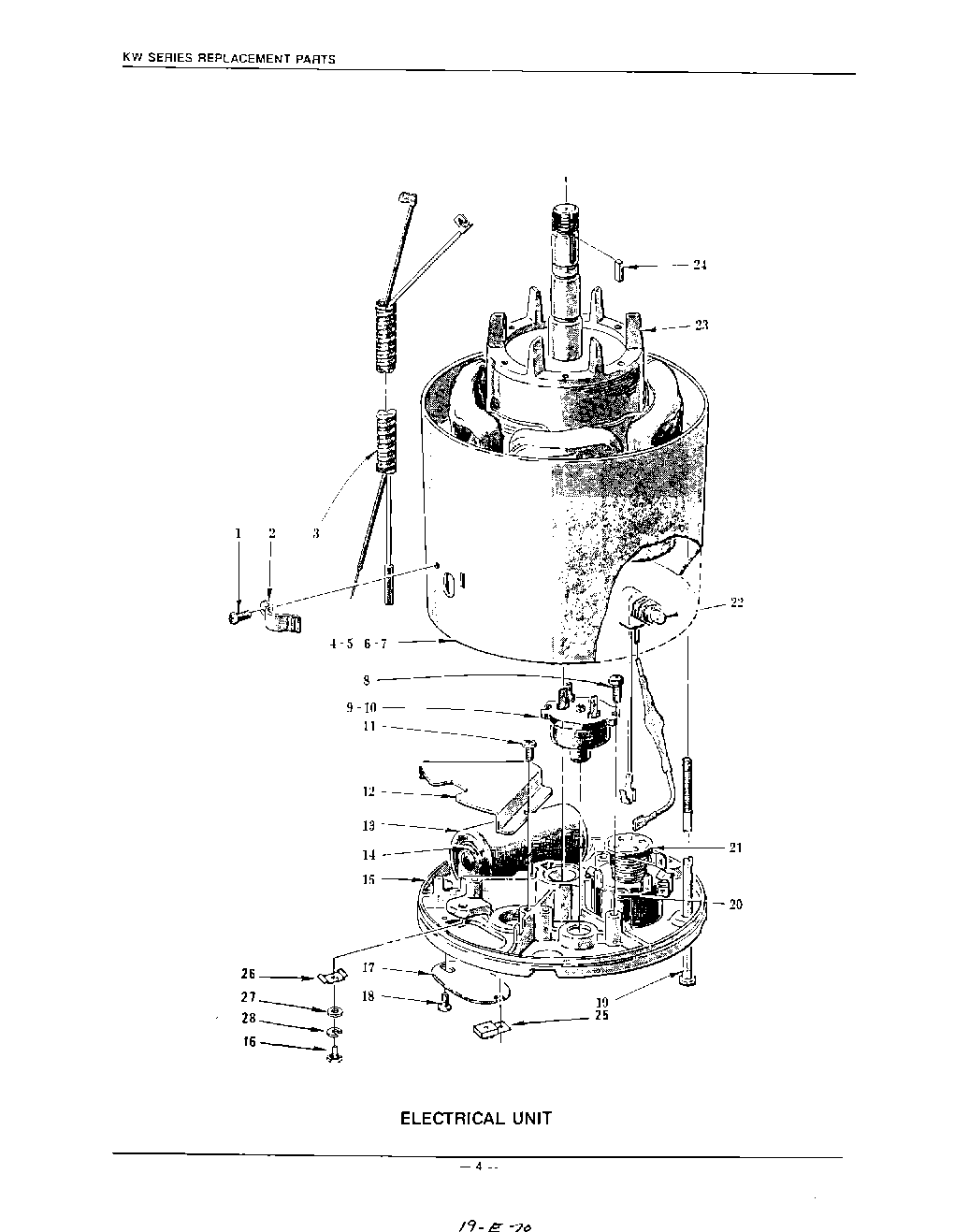

KWS200AE 03 – ELECTRICAL

Products

Position	Product
1	Self-Tapping Screw 8 x 1/2 Phil. Pan Hd., Type B
2	xClamp – Conduit
3	xConduit Assy
8	Screw Assy. (Protector)
9	xxProtector – Overload (Manual) (KWE/KWI)
10	xProtector – Overload (Automatic) (KWD/KWS)
12	Barrier – Electrical Enclosure
13	Capacitor
14	Clip – Capacitor Retainer
15	Bracket & Bearing Assy
16	Screw – Machine Grounding
17	Cover – Elec. Access
18	Self-Tapping Screw 6-32 x 5/16 Phil. Pan Hd., Type T
19	Mach. Screw 10-32 x 5 5/8 Indented Hex Hd
20	Self-Tapping Screw 6-32 x 1 Phil. Pan Hd., Type T
21	Reversing Relay Assy.
22	Switch & Diode Assy. (KWI-200 & KWS-200X ONLY)
23	Rotor Assy.
24	Key – Sq. Mach
25	Splice Connector
26	Terminal Clamp
27	Flat Washer
28	Power Pak (230 V., 50 Hz.) (KWI)
28	Lock Washer
28	Power Pak (230 V., 50 Hz.) (KWE)
28	Power Pak (230 V., 50 Hz.) (KWD)
28	Power Pak (230 V., 50 Hz.) (KWS)
