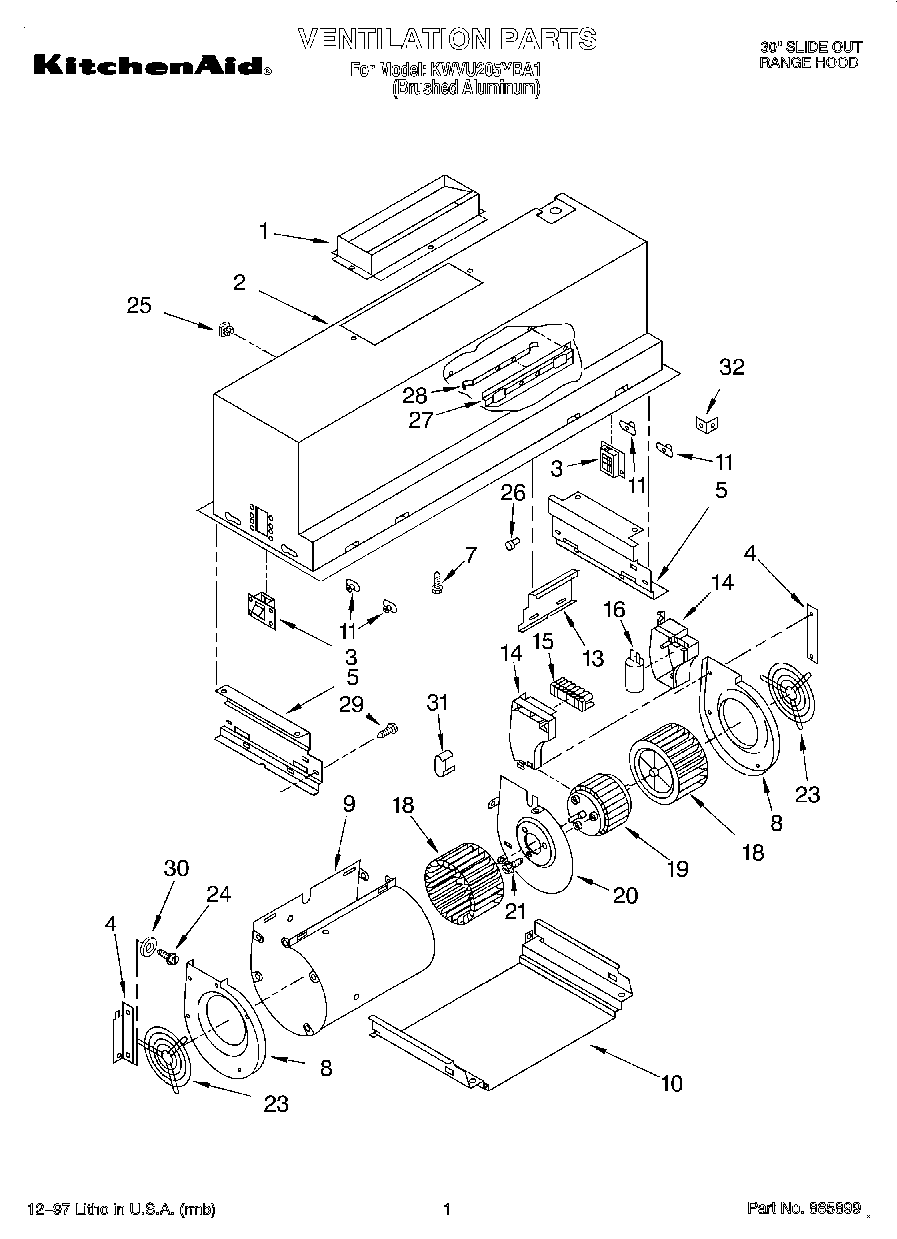

KWVU205YBA1 01 – SECTION

Products

Position	Product
1	Damper
2	Canopy (Not Serviceable)
3	Support, Canopy (2)
4	Bracket, Blower (Right Side)
4	Bracket, Blower (Left Side)
5	Support, Housing Housing (Left Side)
5	Support Blower Housing (Right Side)
7	Screw
8	Endcap, Blower (Right)
8	Endcap, Blower (Left)
9	Housing, Blower
10	Support, Housing
11	Bushing (4)
13	Plate Mount
14	Cover, Box
14	Box, Electric
15	Terminal
16	Capacitor
18	Wheel, Blower (Left Side)
18	Wheel, Blower (Right Side)
19	Motor
20	Plate, Motor
21	4344826 Whirlpool Refrigerator Screw
23	Grille, Blower (2)
24	Screw 6 x 10 (2)
25	Nut
26	Pin
27	Bracket, Filter
28	Spring, Filter (2)
29	SCREW
30	WP120393 Whirlpool Washer Assembly
31	Clamp (2)
32	Bracket (6)
