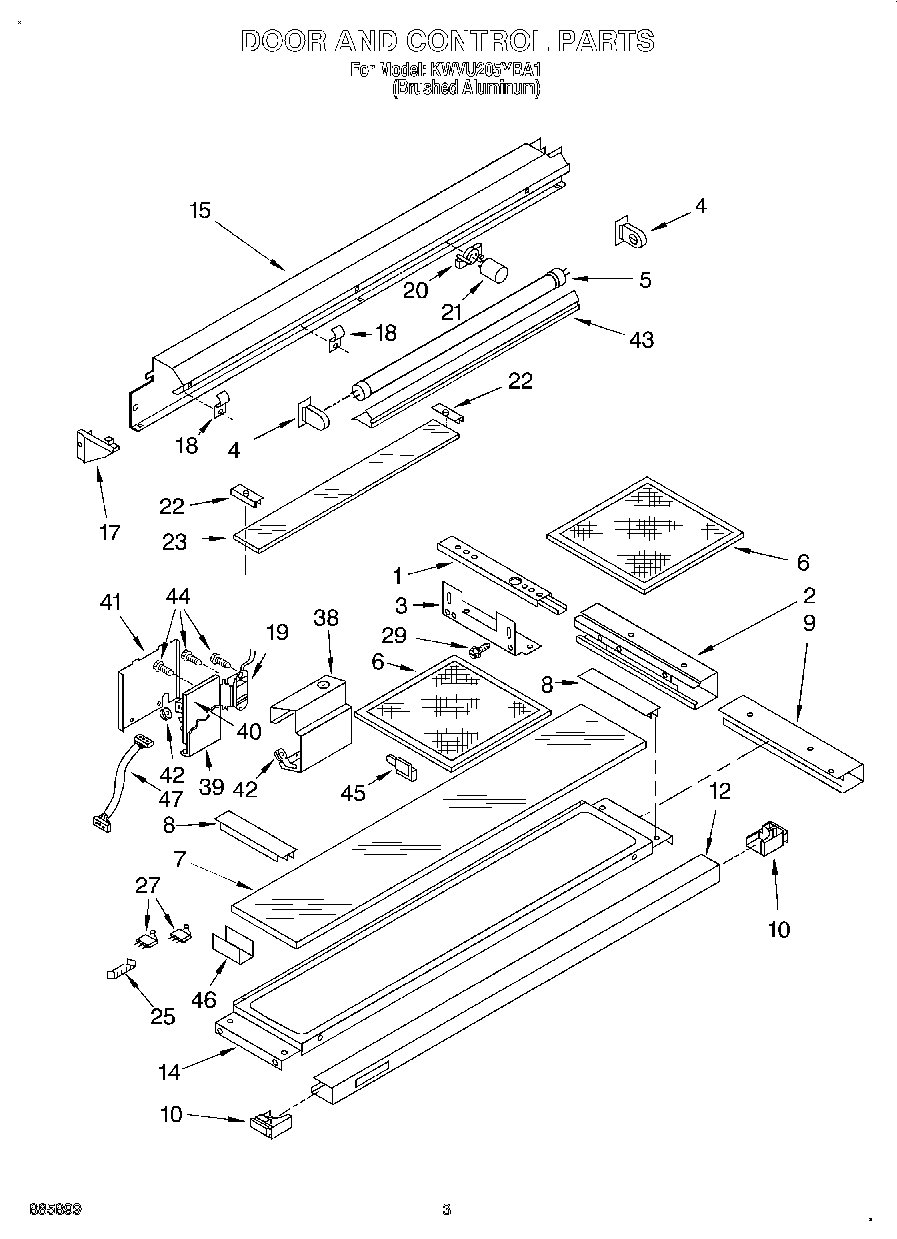

KWVU205YBA1 02 – SECTION

Products

Position	Product
	Installation Instructions
1	Guide, Door (2)
2	Housing Guide (Left Side)
2	Housing Guide (Right Side)
3	Support Guide
4	Socket, Lamp (2)
5	Lamp
6	WPW10370046 Whirlpool Filter Assembly
7	Glass, Door
8	Brace, Glass (2)
9	Frame, Door (Left Side)
9	Frame, Door (Right Side)
10	End Cap, Door (Right Side)
10	End Cap, Door (Left Side)
12	Bracket, Handle
14	Baffle, Door
15	Support, Light
17	Bracket Light (Right Side)
17	Bracket Light (Left Side)
18	Clamp, Wiring
19	Ballast
20	Receptacle
21	Starter
22	Brace, Glass (2)
23	Lens Light
25	Base Switch
27	WPW10240604 Whirlpool Fan Switch
29	Screw
38	Frame, Controls
39	Plate, Board Mtg.
40	Board, Microcomputer
41	Shield, Microcomputer
42	Grommet
43	Support, Light (Front)
44	Screw
45	Guide, Cable
46	Bracket, Guide
47	Harness
