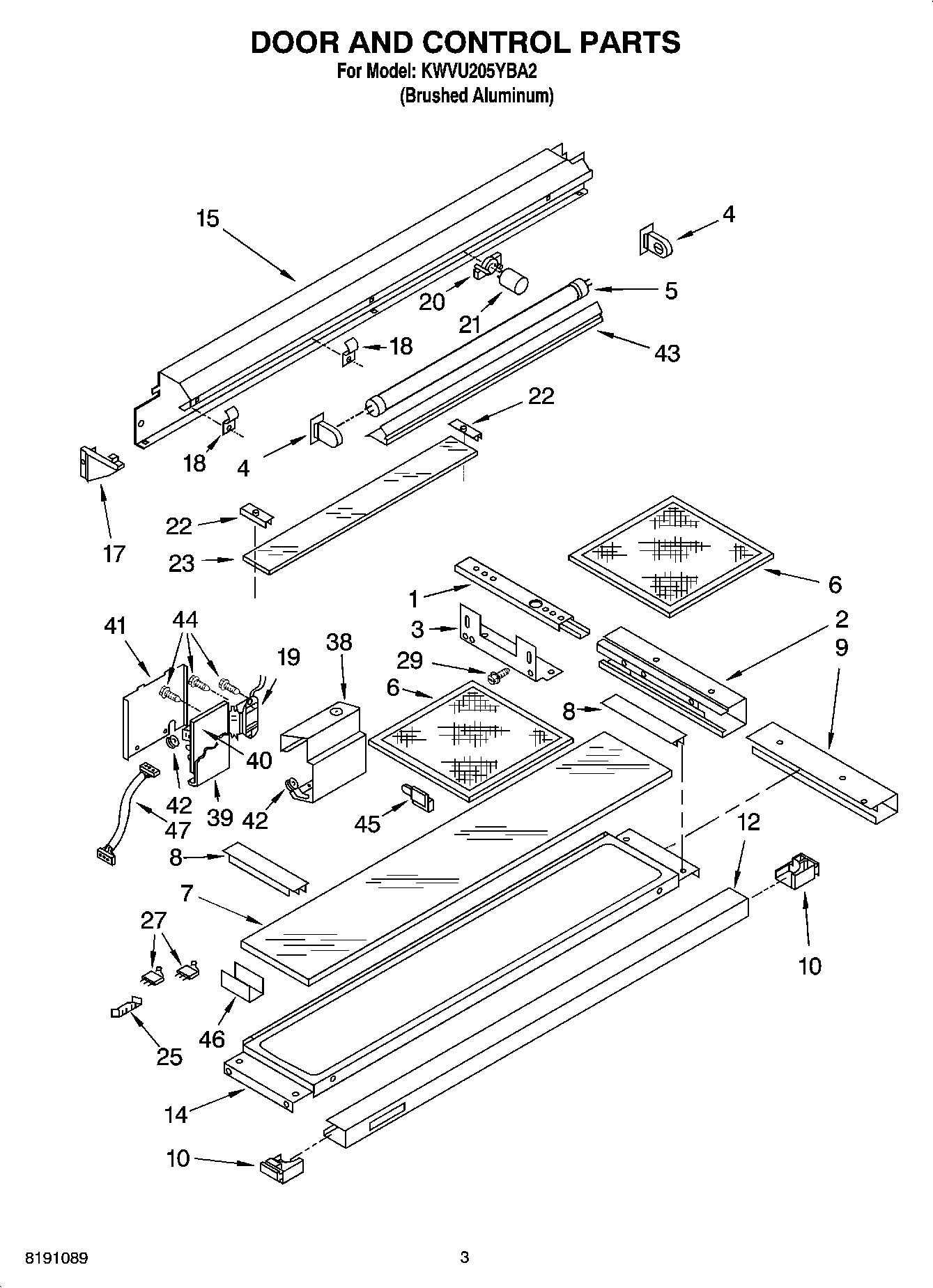

KWVU205YBA2 02 – DOOR AND CONTROL PARTS

Products

Position	Product
1	Guide, Door (2)
2	Housing Guide (Left Side)
2	Housing Guide (Right Side)
3	Support Guide
4	Socket, Lamp (2)
5	Lamp
6	WPW10370046 Whirlpool Filter Assembly
7	Glass, Door
8	Brace, Glass (2)
9	Frame, Door (Right Side)
9	Frame, Door (Left Side)
10	End Cap, Door (Left Side)
10	End Cap, Door (Right Side)
12	Bracket, Handle
14	Baffle, Door
15	Support, Light
17	Bracket Light (Left Side)
17	Bracket Light (Right Side)
18	Clamp, Wiring
19	Ballast
20	Receptacle
21	Starter
22	Brace, Glass (2)
23	Lens Light
25	Base Switch
27	WPW10240604 Whirlpool Fan Switch
29	Screw
38	Frame, Controls
39	Plate, Board Mtg.
40	Board, Microcomputer
41	Shield, Microcomputer
42	Grommet
43	Support, Light (Front)
44	Screw
45	Guide, Cable
46	Bracket, Guide
47	Harness
