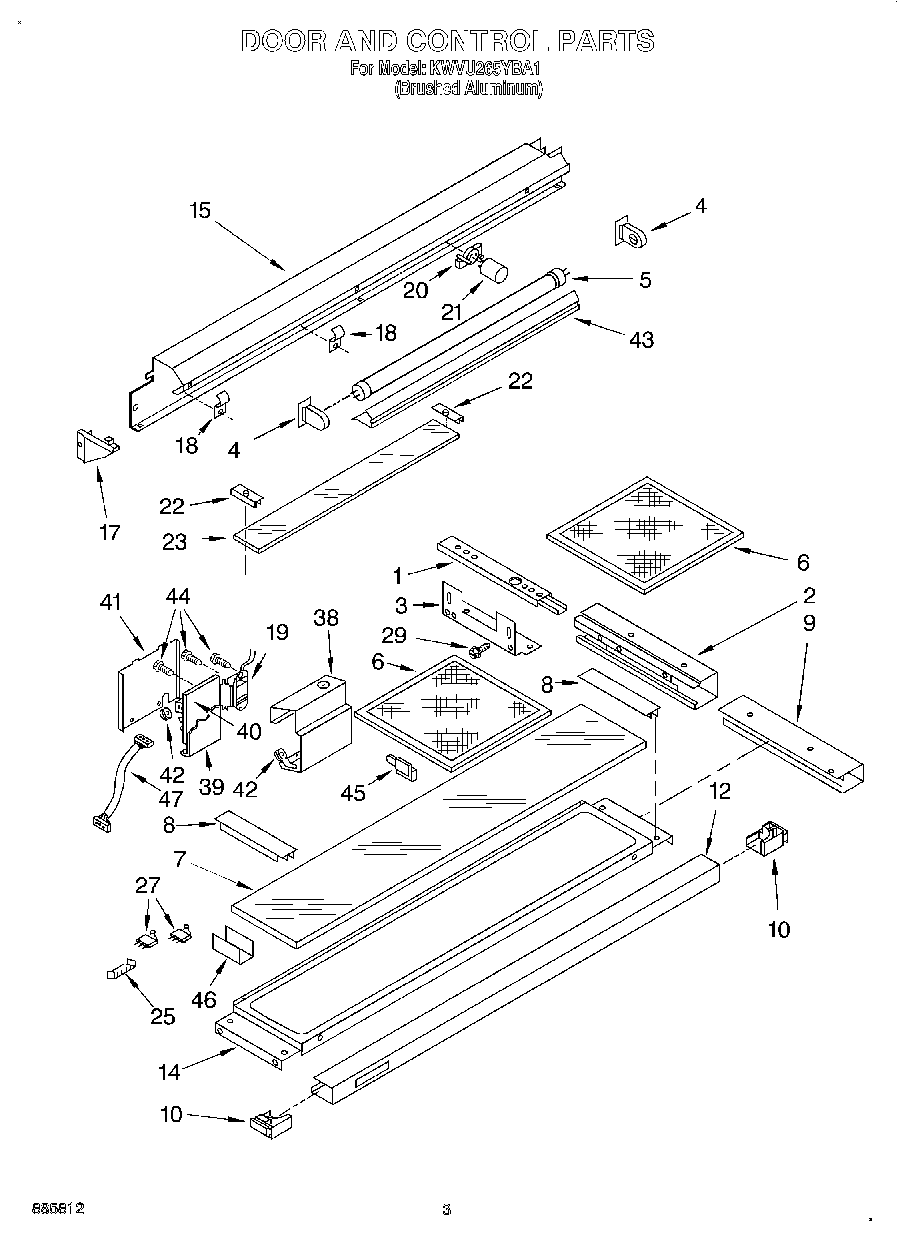

| Parts List |
| 1 | Guide, Door (2) |
| 2 | Housing Guide (Left Side) |
| 2 | Housing Guide (Right Side) |
| 3 | Support Guide |
| 4 | Socket, Lamp (2) |
| 5 | Lamp |
| 6 | WPW10370046 Whirlpool Filter Assembly |
| 7 | Glass, Door |
| 8 | Brace, Glass (2) |
| 9 | Frame, Door (Left Side) |
| 9 | Frame, Door (Right Side) |
| 10 | End Cap, Door (Right Side) |
| 10 | End Cap, Door (Left Side) |
| 12 | Bracket, Handle |
| 14 | Baffle, Door |
| 15 | Support, Light |
| 17 | Bracket Light (Left Side) |
| 17 | Bracket Light (Right Side) |
| 18 | Clamp, Wiring |
| 19 | Ballast |
| 20 | Receptacle |
| 21 | Starter |
| 22 | Brace, Glass (2) |
| 23 | Lens Light |
| 25 | Base Switch |
| 27 | WPW10240604 Whirlpool Fan Switch |
| 29 | Screw |
| 38 | Frame, Controls |
| 39 | Plate, Board Mtg. |
| 40 | Board, Microcomputer |
| 41 | Shield, Microcomputer |
| 42 | Grommet |
| 43 | Support, Light (Front) |
| 44 | Screw |
| 45 | Guide, Cable |
| 46 | Bracket, Guide |
| 47 | Harness |
