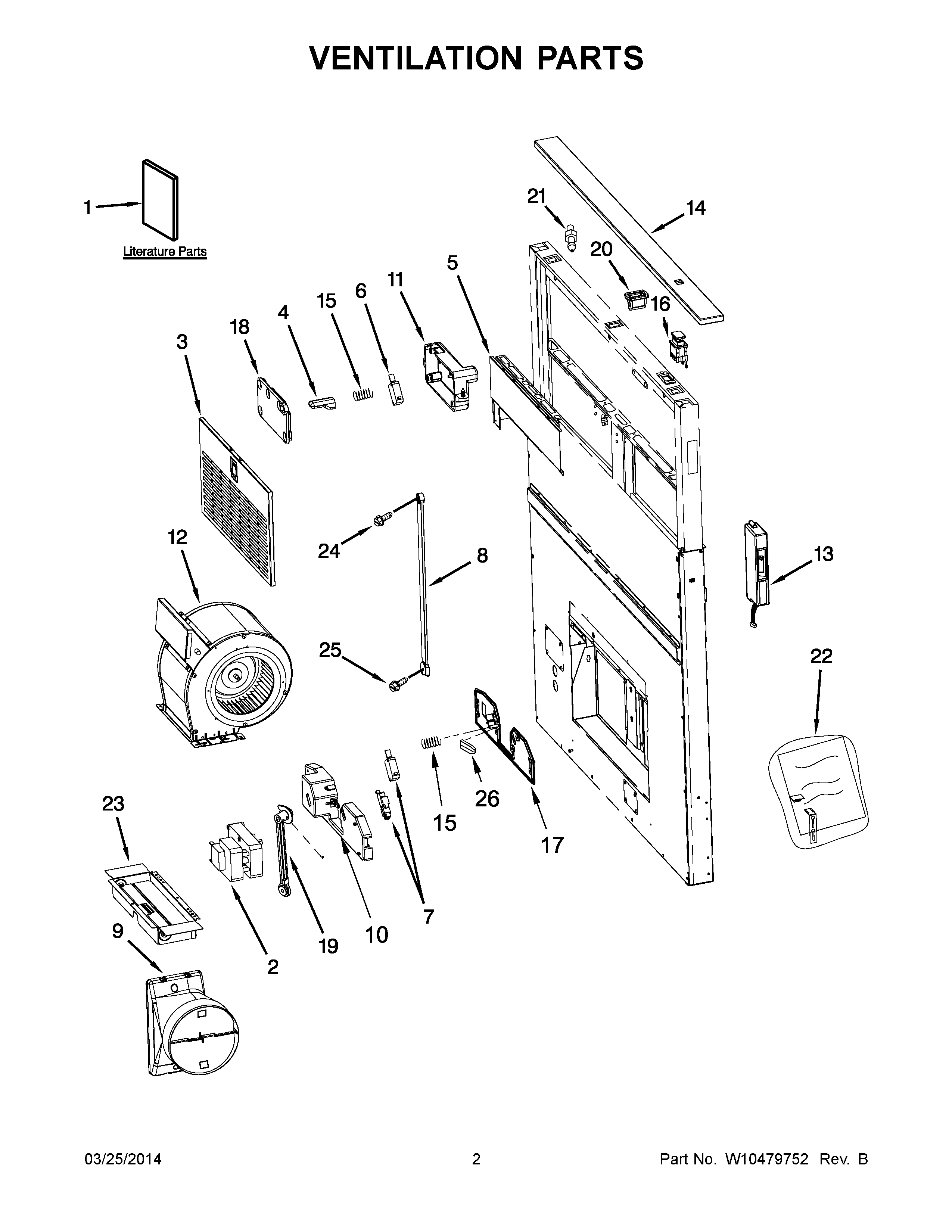

KXD4630YSS0 02 – VENTILATION PARTS

Products

PositionProduct
NIW10388169 Whirlpool Decorative Trim
NIW10387672 Whirlpool Range Hood Decorative Trim
NIW10388170 Whirlpool Trim Decor
NIACCESSORIES, TRIM, TOP (36“ BLACK)
1USE AND CARE GUIDE /INSTALLATION INSTRUCTIONS
2WPW10398274 Whirlpool Motor
3W10422877 Whirlpool Range Hood Grease Filter
3W10422876 Whirlpool Range Hood Grease Filter
4W10421258 Whirlpool Control Button
5W10421449 Whirlpool Cover Front
5W10421452 Whirlpool Cover Front
6W11666423 Whirlpool Cover Switch
7WPW10398341 Whirlpool Switch
8WPW10421280 Whirlpool Motor Arm
9WPW10313841 Whirlpool Hood Damper
10W10833182 Whirlpool Cover Switch
12W11672683 Whirlpool Range Blower Fan
13WPW10421481-includeCORE Whirlpool WPW10421481 Microwave Electronic Control Board + Core
14WPW10421498 Whirlpool Decor Trim
14WPW10421497 Whirlpool Decorative Trim
15WPW10469579 Whirlpool Spring
16SWITCH-PB
19WPW10421277 Whirlpool Motor Arm
20WPW10421518 Whirlpool Clip Assembly
21W10421517 Whirlpool Clip
22W11188522 Whirlpool Hardware
23WPW10291572 Whirlpool Hood Damper Assembly
24SCREW UPPER
25WPW10422764 Whirlpool Screw
26WPW10681777 Whirlpool Control Button
