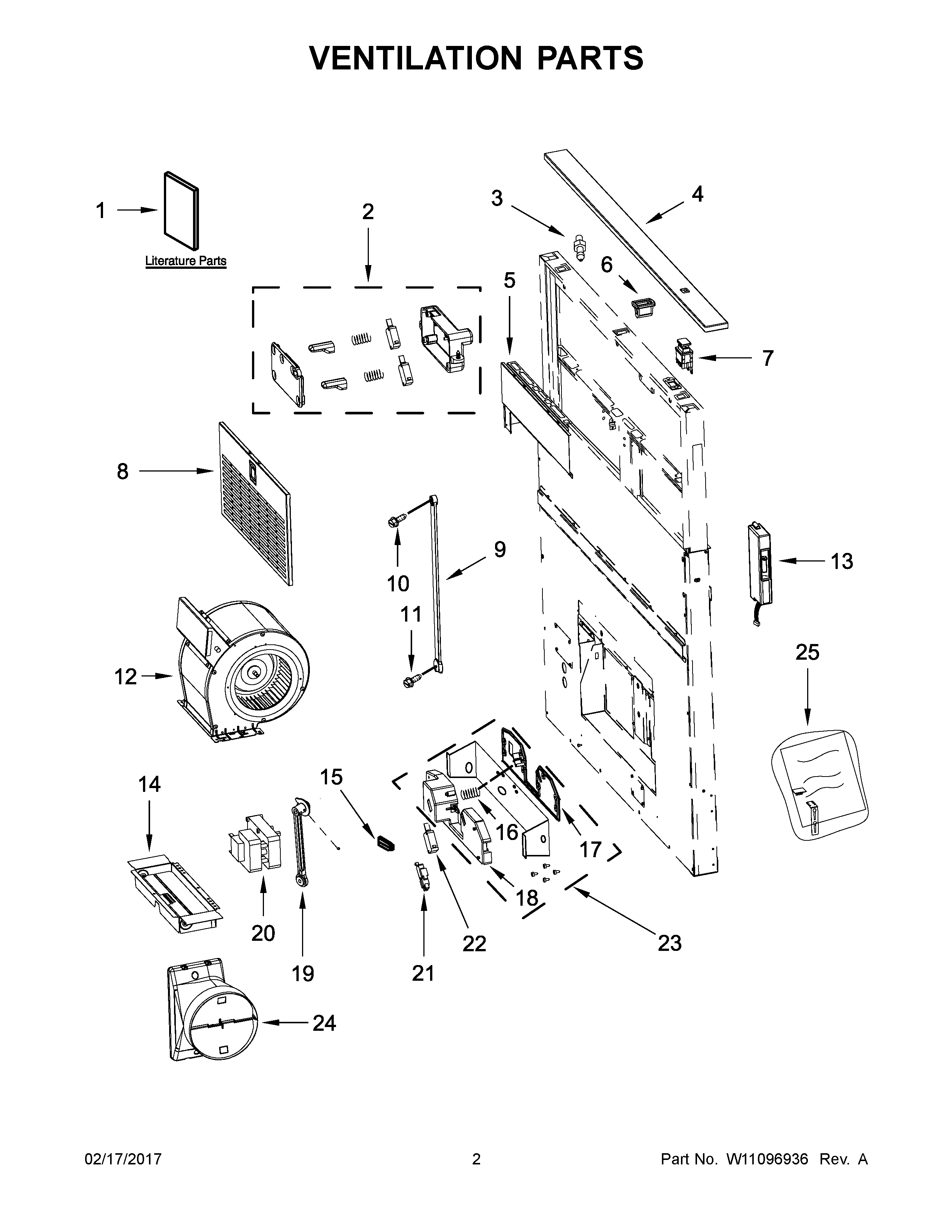

KXD4630YSS3 02 – VENTILATION PARTS

Products

Position	Product
NI	W10388169 Whirlpool Decorative Trim
NI	W11174412 Whirlpool Hardware
NI	W10388170 Whirlpool Trim Decor
NI	ACCESSORIES, TRIM, TOP (36`` BLACK)
NI	W10387672 Whirlpool Range Hood Decorative Trim
NI	W11174413 Whirlpool Hardware
1	USE AND CARE GUIDE /INSTALLATION INSTRUCTIONS
2	W11666423 Whirlpool Cover Switch
3	W10421517 Whirlpool Clip
4A	WPW10421497 Whirlpool Decorative Trim
4	WPW10421498 Whirlpool Decor Trim
5A	W10421449 Whirlpool Cover Front
5	W10798407 Whirlpool Front Cover
6	WPW10421518 Whirlpool Clip Assembly
7	SWITCH-PB
8	W10422877 Whirlpool Range Hood Grease Filter
8A	W10422876 Whirlpool Range Hood Grease Filter
9	WPW10421280 Whirlpool Motor Arm
10	SCREW UPPER
11	WPW10422764 Whirlpool Screw
12	W11672683 Whirlpool Range Blower Fan
13	W11088943-includeCORE Whirlpool W11088943 Refrigerator Electronic Control Board + Core
14	WPW10291572 Whirlpool Hood Damper Assembly
15	WPW10681777 Whirlpool Control Button
16	WPW10469579 Whirlpool Spring
17	W11097343 Whirlpool Cover Switch
18	W10798401 Whirlpool Switch Cover
19	WPW10421277 Whirlpool Motor Arm
20	WPW10398274 Whirlpool Motor
21	WPW10398341 Whirlpool Switch
22	W11098806 Whirlpool Switch
23	W10833182 Whirlpool Cover Switch
24	WPW10313841 Whirlpool Hood Damper
25	W11188522 Whirlpool Hardware
