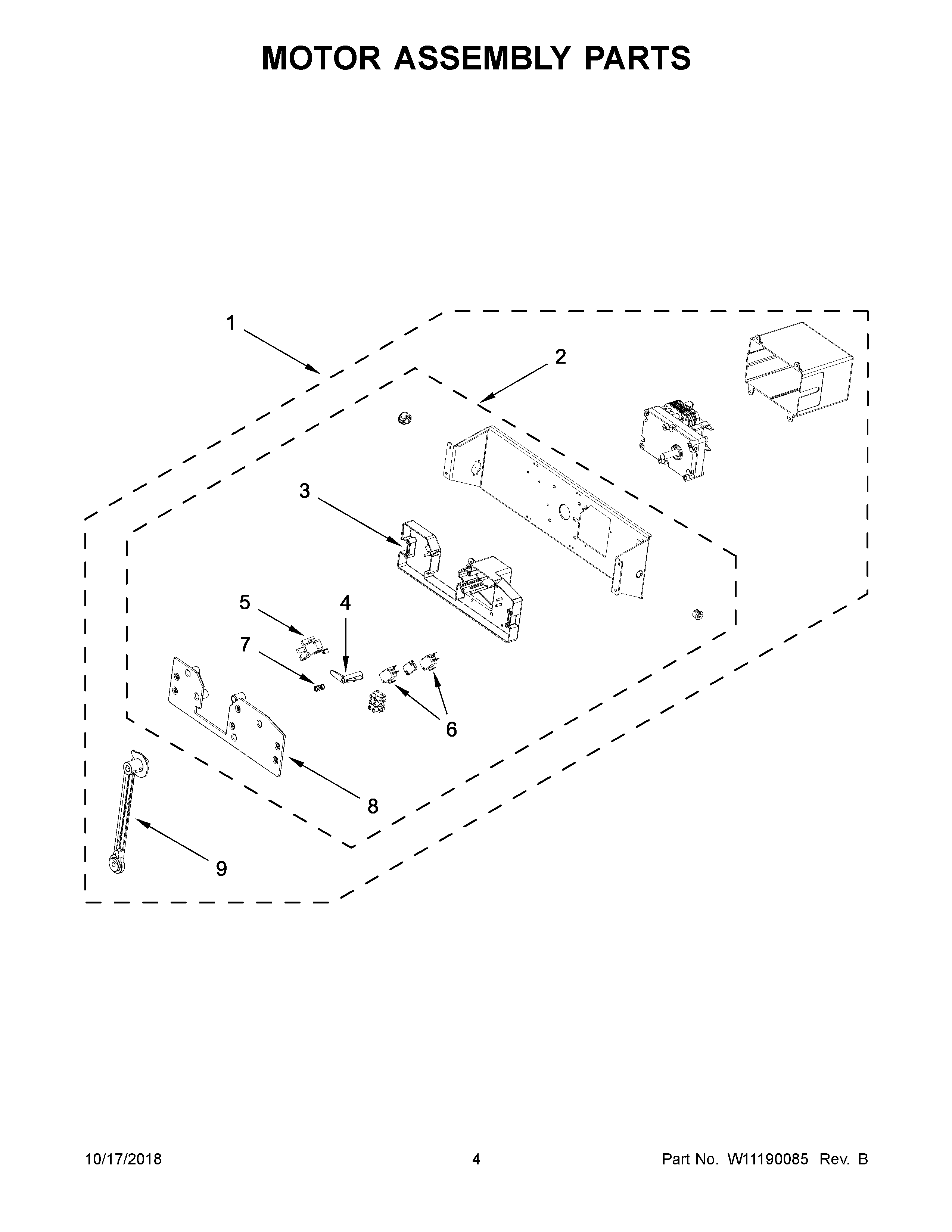

KXD4630YSS5 03 – MOTOR ASSEMBLY PARTS

KXD4630YSS5 03 – MOTOR ASSEMBLY PARTS

Written by

in

KXD4630YSS5 03 – MOTOR ASSEMBLY PARTS

Products

PositionProduct
1W11187731 Whirlpool Motor Assembly
2W10833182 Whirlpool Cover Switch
3W10798401 Whirlpool Switch Cover
4WPW10681777 Whirlpool Control Button
5WPW10398341 Whirlpool Switch
6W11098806 Whirlpool Switch
7WPW10469579 Whirlpool Spring
8W11097343 Whirlpool Cover Switch
9WPW10421277 Whirlpool Motor Arm
