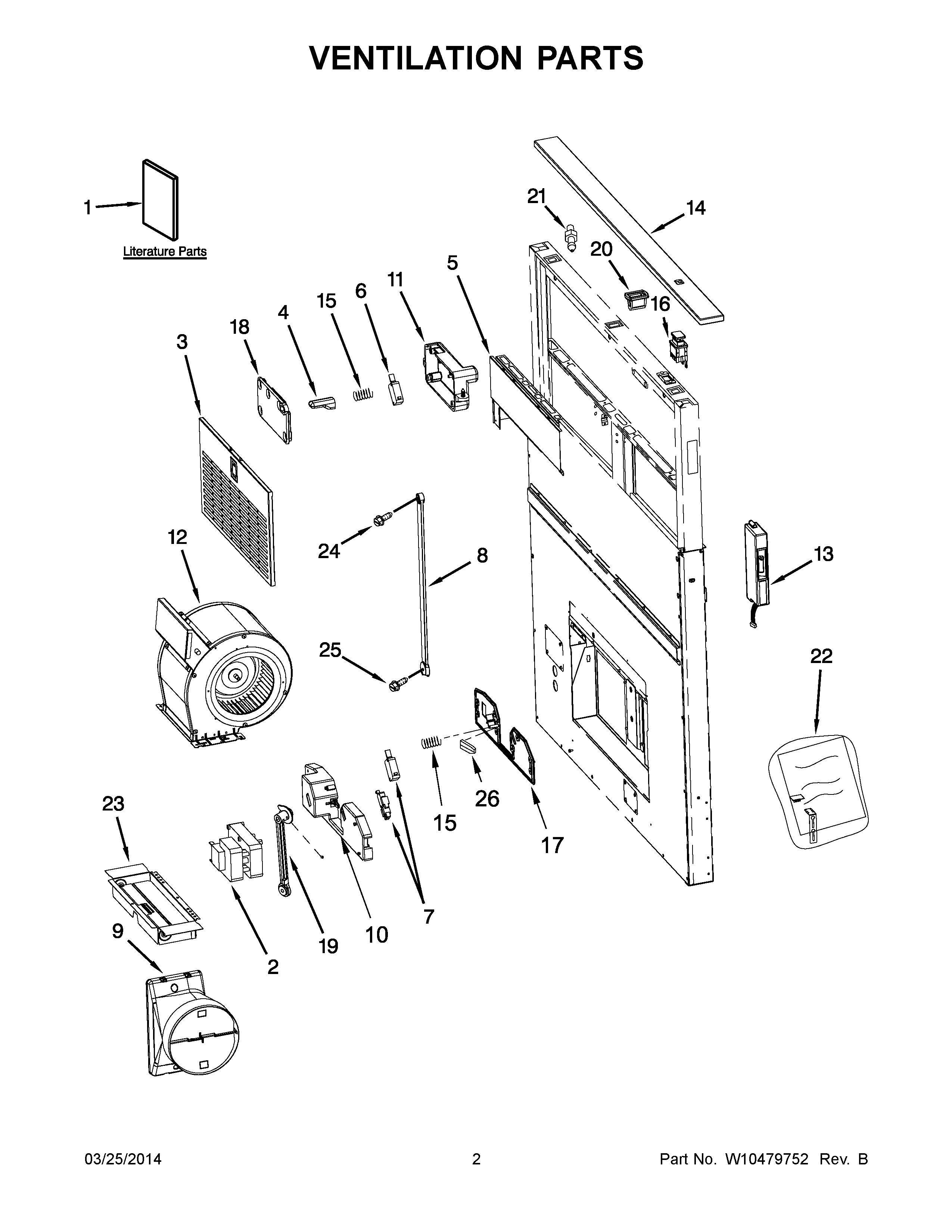

KXD4636YSS0 02 – VENTILATION PARTS

Products

Position	Product
NI	W10388169 Whirlpool Decorative Trim
NI	W10387672 Whirlpool Range Hood Decorative Trim
NI	W10388170 Whirlpool Trim Decor
NI	ACCESSORIES, TRIM, TOP (36`` BLACK)
1	USE AND CARE GUIDE /INSTALLATION INSTRUCTIONS
2	WPW10398274 Whirlpool Motor
3	W10422877 Whirlpool Range Hood Grease Filter
3	W10422876 Whirlpool Range Hood Grease Filter
4	W10421258 Whirlpool Control Button
5	W10421449 Whirlpool Cover Front
5	W10421452 Whirlpool Cover Front
6	W11666423 Whirlpool Cover Switch
7	WPW10398341 Whirlpool Switch
8	WPW10421280 Whirlpool Motor Arm
9	WPW10313841 Whirlpool Hood Damper
10	W10833182 Whirlpool Cover Switch
12	W11672683 Whirlpool Range Blower Fan
13	WPW10421481-includeCORE Whirlpool WPW10421481 Microwave Electronic Control Board + Core
14	WPW10421498 Whirlpool Decor Trim
14	WPW10421497 Whirlpool Decorative Trim
15	WPW10469579 Whirlpool Spring
16	SWITCH-PB
19	WPW10421277 Whirlpool Motor Arm
20	WPW10421518 Whirlpool Clip Assembly
21	W10421517 Whirlpool Clip
22	W11188522 Whirlpool Hardware
23	WPW10291572 Whirlpool Hood Damper Assembly
24	SCREW UPPER
25	WPW10422764 Whirlpool Screw
26	WPW10681777 Whirlpool Control Button
