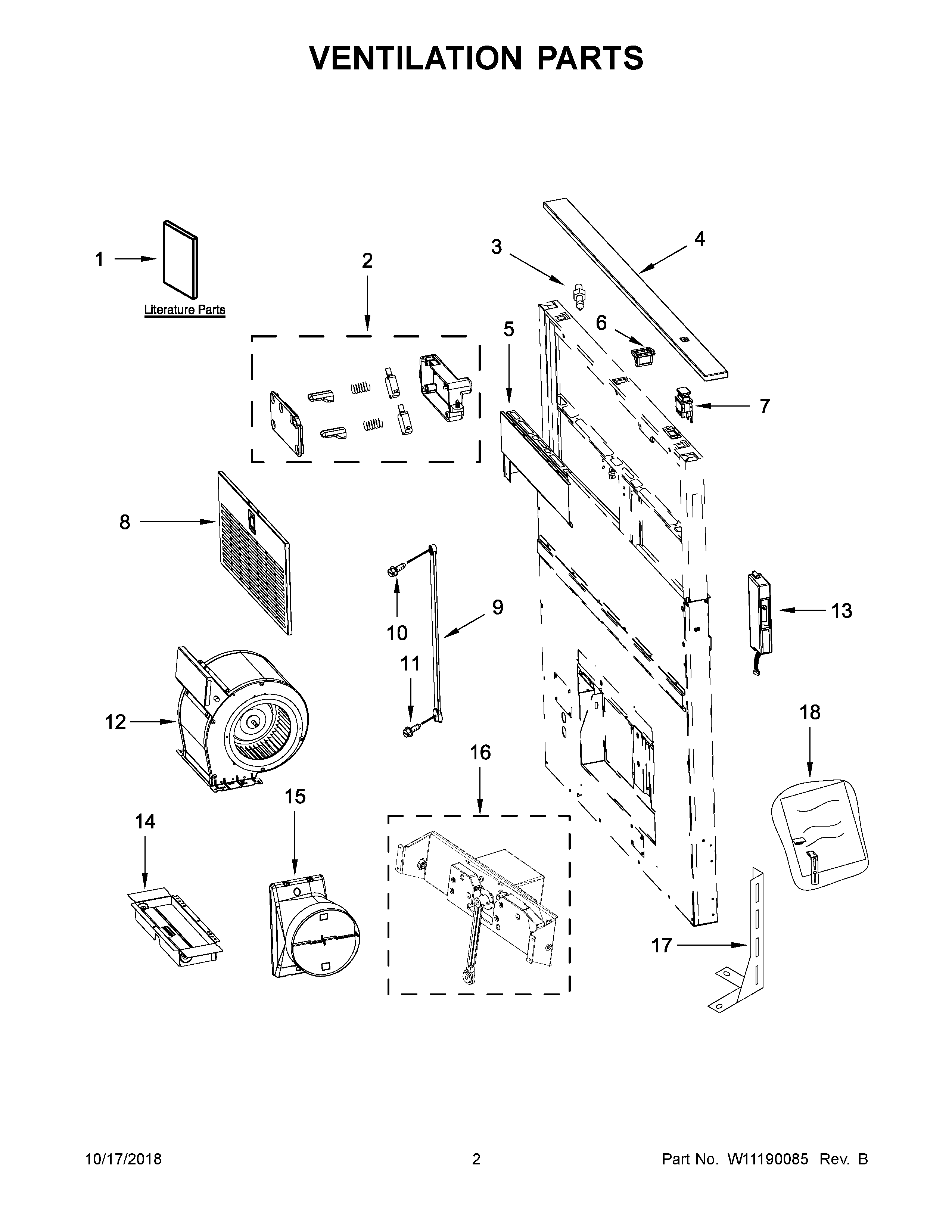

KXD4636YSS5 02 – VENTILATION PARTS

Products

Position	Product
NI	W10388169 Whirlpool Decorative Trim
NI	W11174413 Whirlpool Hardware
NI	ACCESSORIES, TRIM, TOP (36`` BLACK)
NI	W10388170 Whirlpool Trim Decor
NI	W11174412 Whirlpool Hardware
NI	W10387672 Whirlpool Range Hood Decorative Trim
1	USE AND CARE GUIDE /INSTALLATION INSTRUCTIONS
2	W11666423 Whirlpool Cover Switch
3	W10421517 Whirlpool Clip
4A	WPW10421497 Whirlpool Decorative Trim
4	WPW10421498 Whirlpool Decor Trim
5	W10798407 Whirlpool Front Cover
5A	W10421449 Whirlpool Cover Front
6	WPW10421518 Whirlpool Clip Assembly
7	SWITCH-PB
8A	W10422876 Whirlpool Range Hood Grease Filter
8	W10422877 Whirlpool Range Hood Grease Filter
9	WPW10421280 Whirlpool Motor Arm
10	SCREW UPPER
11	WPW10422764 Whirlpool Screw
12	W11672683 Whirlpool Range Blower Fan
13	W11088943-includeCORE Whirlpool W11088943 Refrigerator Electronic Control Board + Core
14	WPW10291572 Whirlpool Hood Damper Assembly
15	WPW10313841 Whirlpool Hood Damper
16	W11187731 Whirlpool Motor Assembly
17	W11233209 Whirlpool Mounting Bracket
18	W11188522 Whirlpool Hardware
