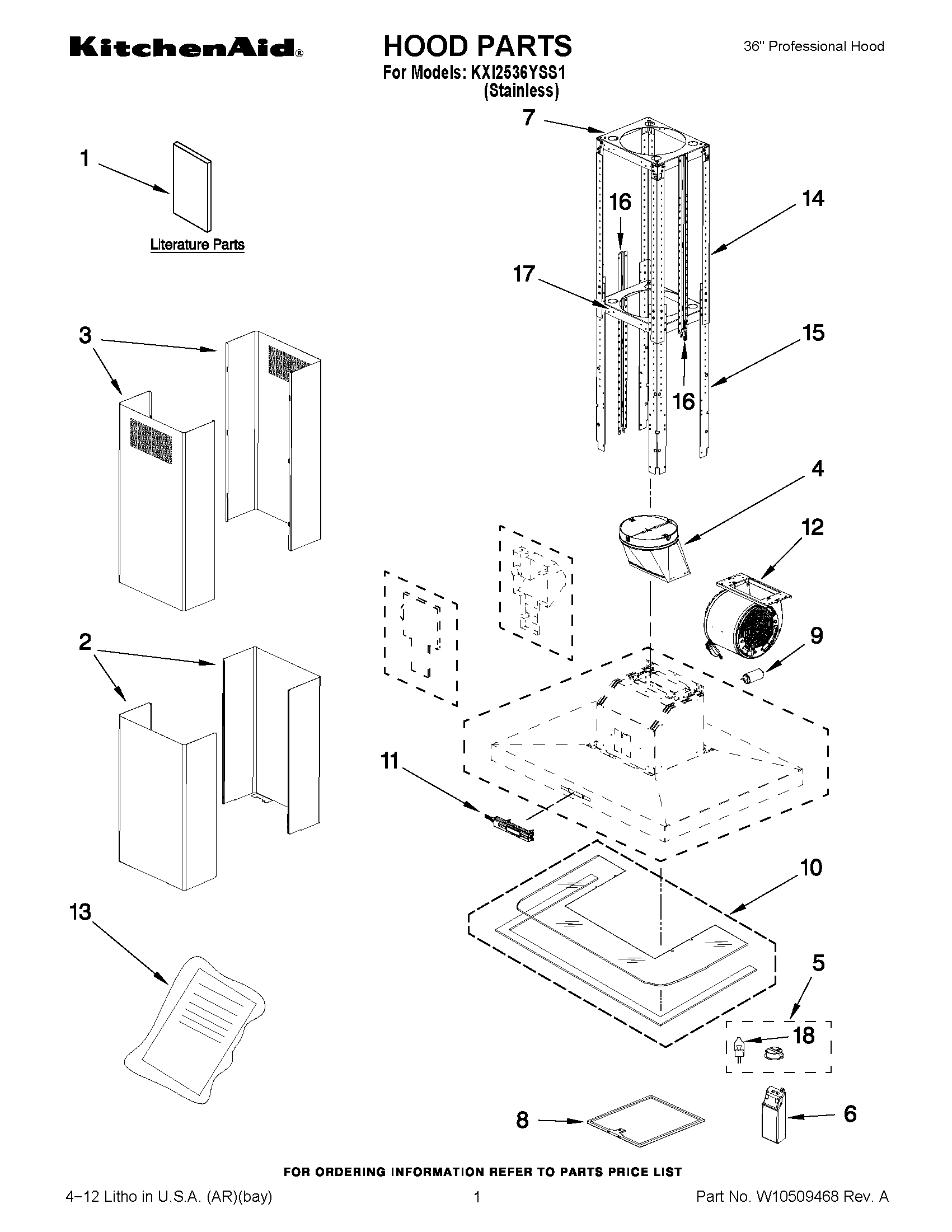

KXI2536YSS1 01 – HOOD PARTS

Products

Position	Product
NI	CHIMNEY EXTENSION KIT
NI	W11430929 Whirlpool Duct Kit
NI	W10412939 Whirlpool Charcoal Filter Pack
1	USE & CARE GUIDE
2	W11321565 Whirlpool Chimney
3	W10351831 Whirlpool Chimney
4	WPW10313841 Whirlpool Hood Damper
5	WPW10298151 Whirlpool Light Bulb
6	W11186486 Whirlpool Transformer
7	W10297052 Whirlpool Mounting Bracket
8	W10169961A Whirlpool Grease Filter
9	W10256657 Whirlpool Capacitor
10	GLASS ASSEMBLY
11	W10504432 Whirlpool Power Button Switch
12	WPW10291577 Whirlpool Fan Motor
13	HARDWARE, INSTALL
14	SUPPORT, UPPER VERTICAL
15	W10351905 Whirlpool Support
16	WPW10293054 Whirlpool Support
17	W10293065 Whirlpool Support Bracket
