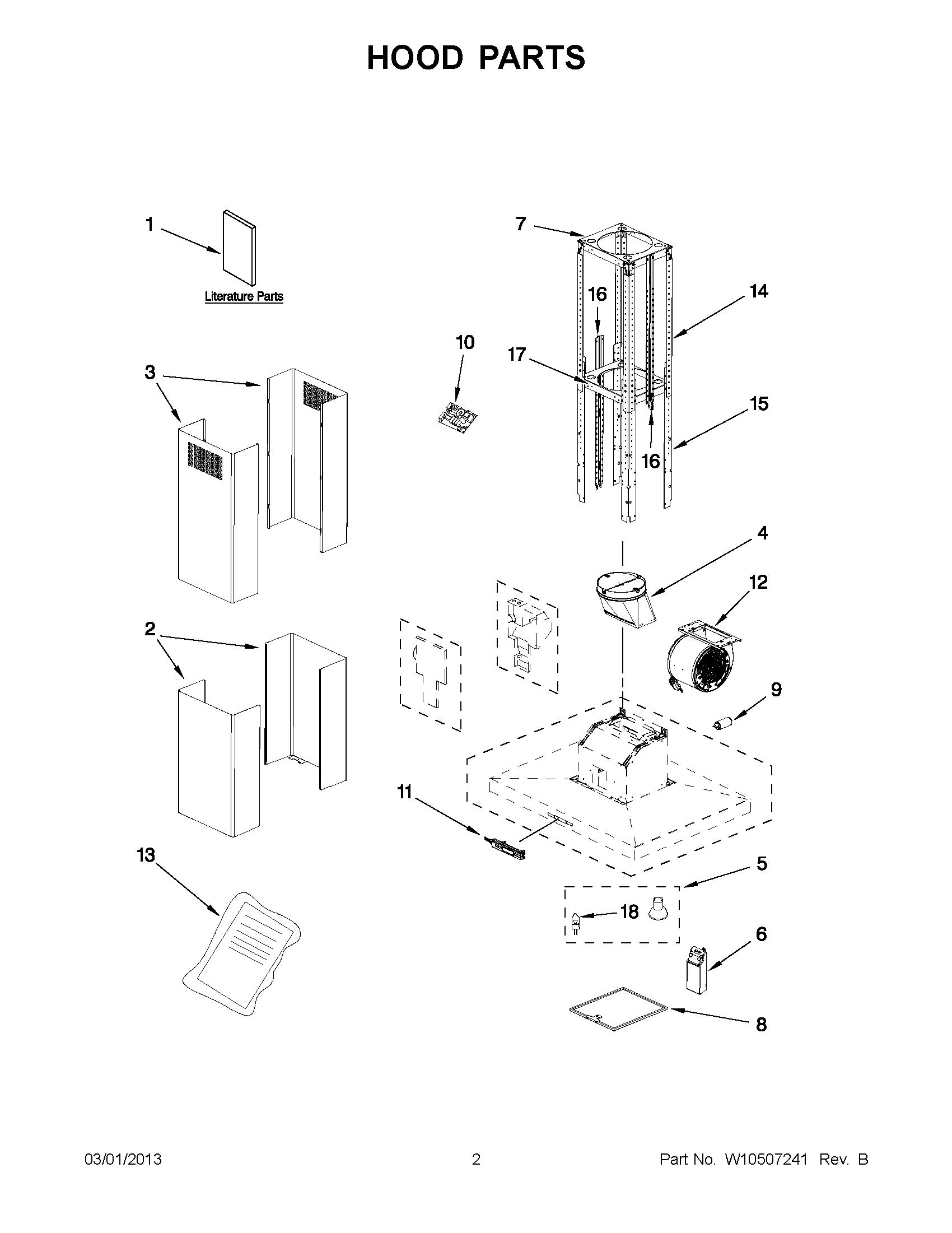

KXI4336YSS1 01 – HOOD PARTS

Products

Position	Product
NI	ACCESSORIES, KIT, RECIRCULATION
NI	CHIMNEY EXTENSION KIT
NI	W10446915 Whirlpool Range Hood Air Kit
NI	W10272068 Whirlpool Range Hood Charcoal Filter Set
1	LITERATURE PARTS (USE & CARE GUIDE)
2	W11321565 Whirlpool Chimney
3	W10351831 Whirlpool Chimney
4	WPW10313841 Whirlpool Hood Damper
5	WPW10298151 Whirlpool Light Bulb
6	W11186486 Whirlpool Transformer
7	W10297052 Whirlpool Mounting Bracket
8	W10351855A Whirlpool Range Hood Grease Filter
9	8186677 Whirlpool Capacitor
10	WPW10291604-includeCORE Whirlpool WPW10291604 Washer Electronic Control Board + Core
11	WPW10505467 Whirlpool Push Button Switch
12	WPW10291602 Whirlpool Fan Motor
13	HARDWARE, INSTALLATION
14	SUPPORT, UPPER VERTICAL
15	W10351905 Whirlpool Support
16	WPW10293054 Whirlpool Support
17	W10293065 Whirlpool Support Bracket
