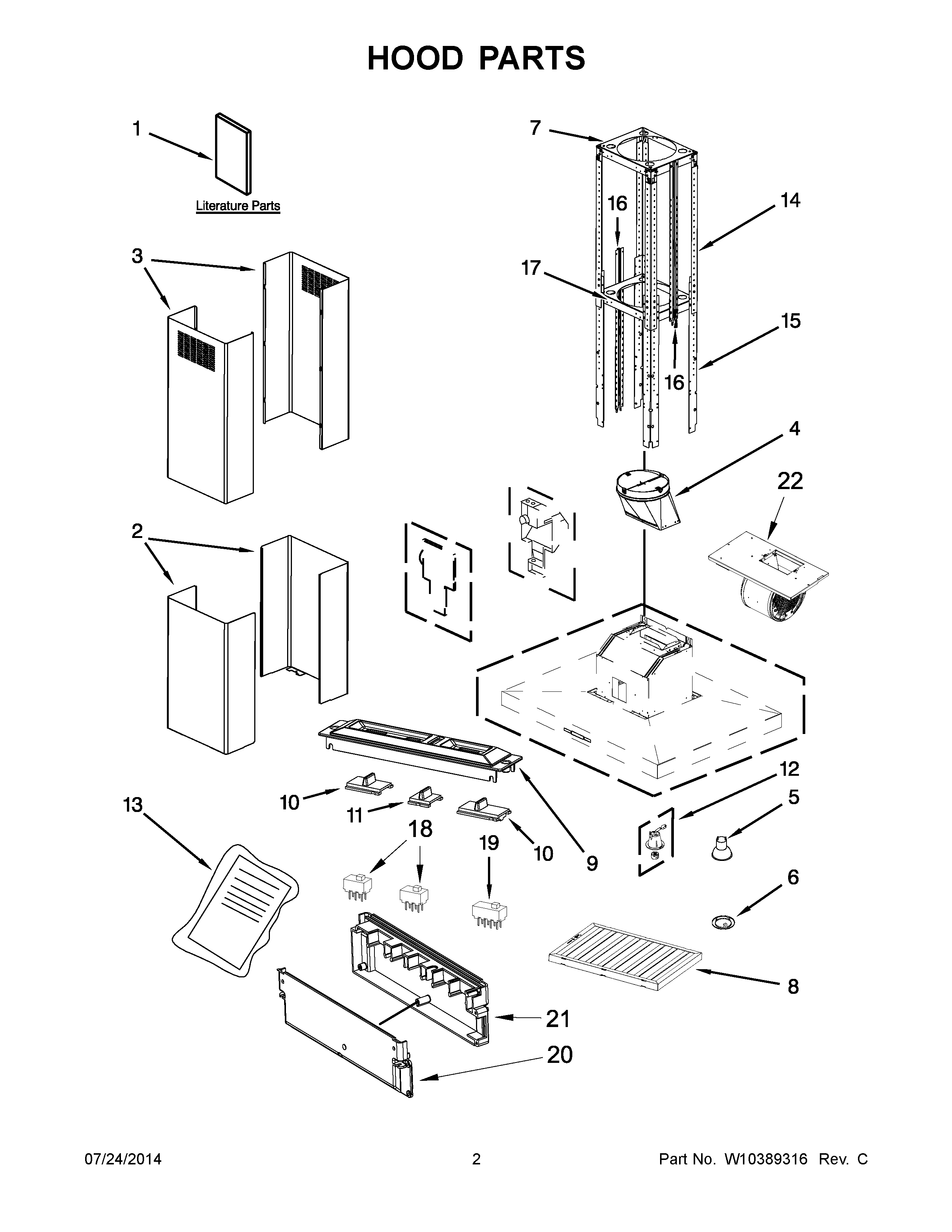

KXI9748YSS0 02 – HOOD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10352732 Whirlpool Chimney Assembly
NI	WPW10294026 Whirlpool Blower Fan
NI	WPW10294006 Whirlpool Blower Fan
1	USE & CARE GUIDE
2	CHIMNEY, LOWER
3	W10351941 Whirlpool Chimney
4	W11156393 Whirlpool Hood Damper
5	WPW10291579 Whirlpool Light Bulb
6	W10351924 Whirlpool Bezel
7	BRACKET, MOUNTING
8	W10351892 Whirlpool Filter Assembly
8A	WPW10351929 Whirlpool Filter
9	W11387938 Whirlpool Range Hood Control Panel
10	W11569415 Whirlpool Control Switch Long Slider
11	W11662407 Whirlpool Range Slide Switch
12	WPW10370558 Whirlpool Socket
13	W10351936 Whirlpool Hardware
14	SUPPORT, UPPER VERTICAL
15	SUPPORT, LOWER VERTICAL
16	W10351940 Whirlpool Support
17	BRACKET, MOUNTING
18	W10853393 Whirlpool Rocker Switch
19	W11193832 Whirlpool Rocker Switch
20	W10721963 Whirlpool Control Housing
21	W10721964 Whirlpool Control Housing
