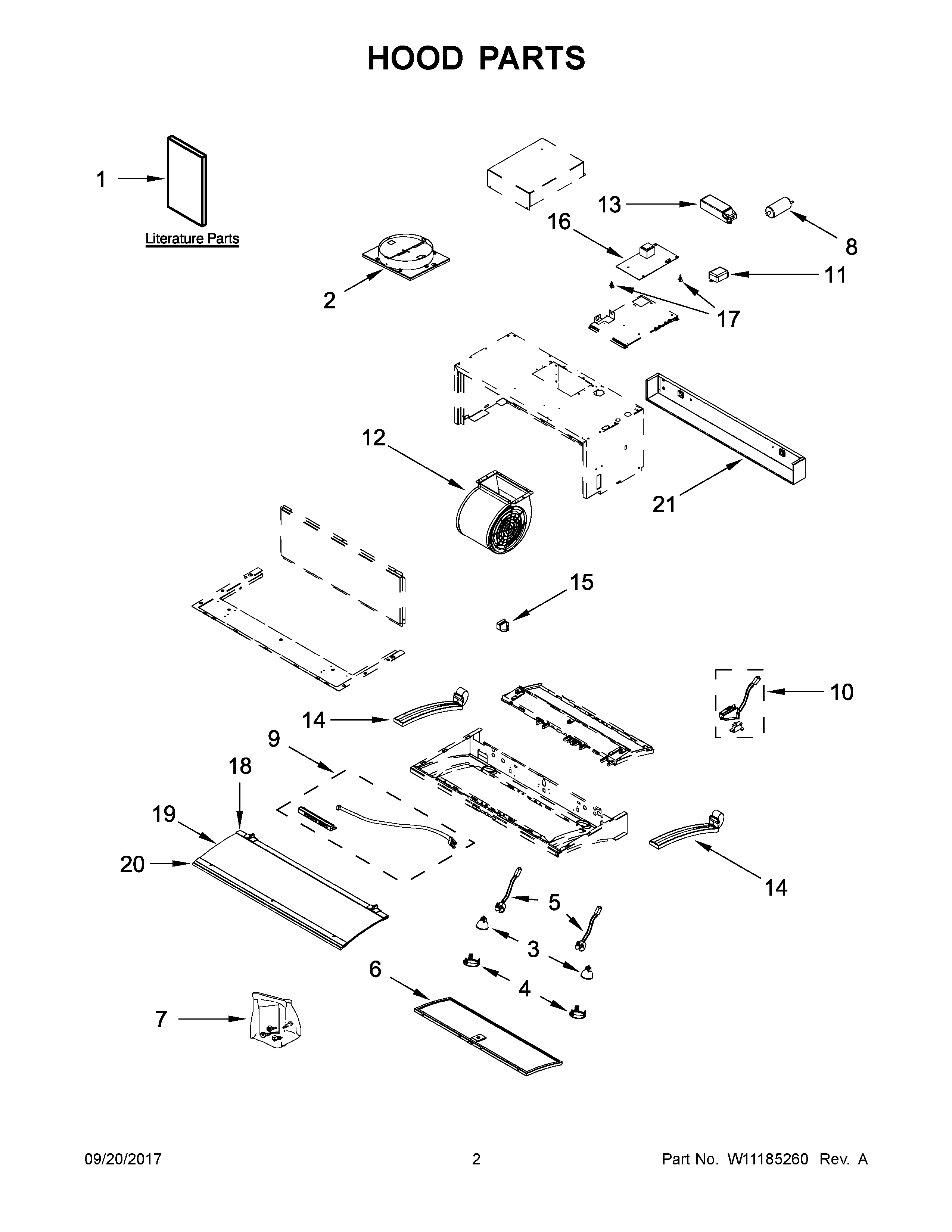

KXU2836YSS1 02 – HOOD PARTS

KXU2836YSS1 02 – HOOD PARTS

Written by

in

KXU2836YSS1 02 – HOOD PARTS

Products

PositionProduct
NIW10356918 Whirlpool Range Hood Recirculation Kit
NIW10356922 Whirlpool Range Hood Charcoal Filter
1USE AND CARE GUIDE
2W10706422 Whirlpool Hood Damper
3WPW10252088 Whirlpool Light Bulb
4LIGHT BEZEL
5W11185790 Whirlpool Wire Harness
6WPW10369163 Whirlpool Filter Assembly
7W11185791 Whirlpool Hardware Kit
8W10256657 Whirlpool Capacitor
9W11186489 Whirlpool Wire Harness
10W10382895 Whirlpool Wire Harness
11W10369194 Whirlpool Suppressor
12W10382894 Whirlpool Fan Motor
13W11186486 Whirlpool Transformer
14GUIDE SLIDES (PAIR)
15GLIDES, GLASS SUPPORT
16WPW10369412 Whirlpool Electronic Control Board
17BRACKET, MOUNTING
18MOLDING, INSIDE GLASS (BACK) (30" MODEL ONLY)
18AW10369385 Whirlpool Moulding
19AWPW10369389 Whirlpool Glass
19WPW10369366 Whirlpool Glass Panel
20MOLDING, INSIDE GLASS (FRONT) (30" MODEL ONLY)
20AMOLDING, INSIDE GLASS (FRONT) (36" MODEL ONLY)
21HOUSING CONTROL (30" MODEL ONLY)
21AWPW10369398 Whirlpool Control Housing
