KXU8030YSS1 02 – HOOD PARTS

KXU8030YSS1 02 – HOOD PARTS

Written by

in

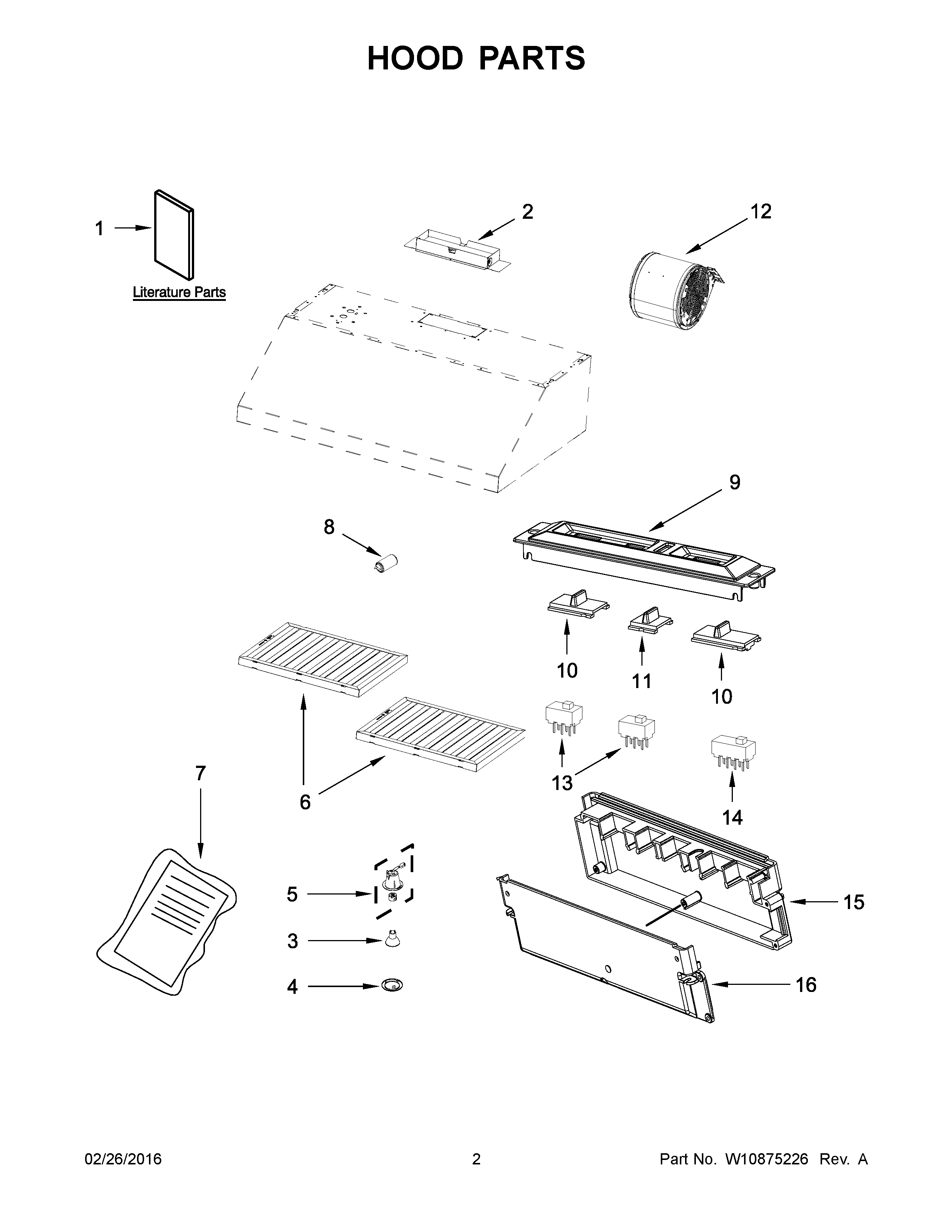

KXU8030YSS1 02 – HOOD PARTS

Products

PositionProduct
NIW10272080 Whirlpool Chimney
NIW10272079 Whirlpool Chimney
1USE & CARE GUIDE
2WPW10291572 Whirlpool Hood Damper Assembly
3WPW10291579 Whirlpool Light Bulb
4W10351924 Whirlpool Bezel
5W10295808 Whirlpool Socket
6W10877584 Whirlpool Filter
6AW10877586 Whirlpool Filter
7W10351917 Whirlpool Hardware
88186677 Whirlpool Capacitor
9W11387938 Whirlpool Range Hood Control Panel
10W11569415 Whirlpool Control Switch Long Slider
11W11662407 Whirlpool Range Slide Switch
12WPW10293966 Whirlpool Blower Fan
13W10853393 Whirlpool Rocker Switch
14W11193832 Whirlpool Rocker Switch
15W10721964 Whirlpool Control Housing
16W10721963 Whirlpool Control Housing
