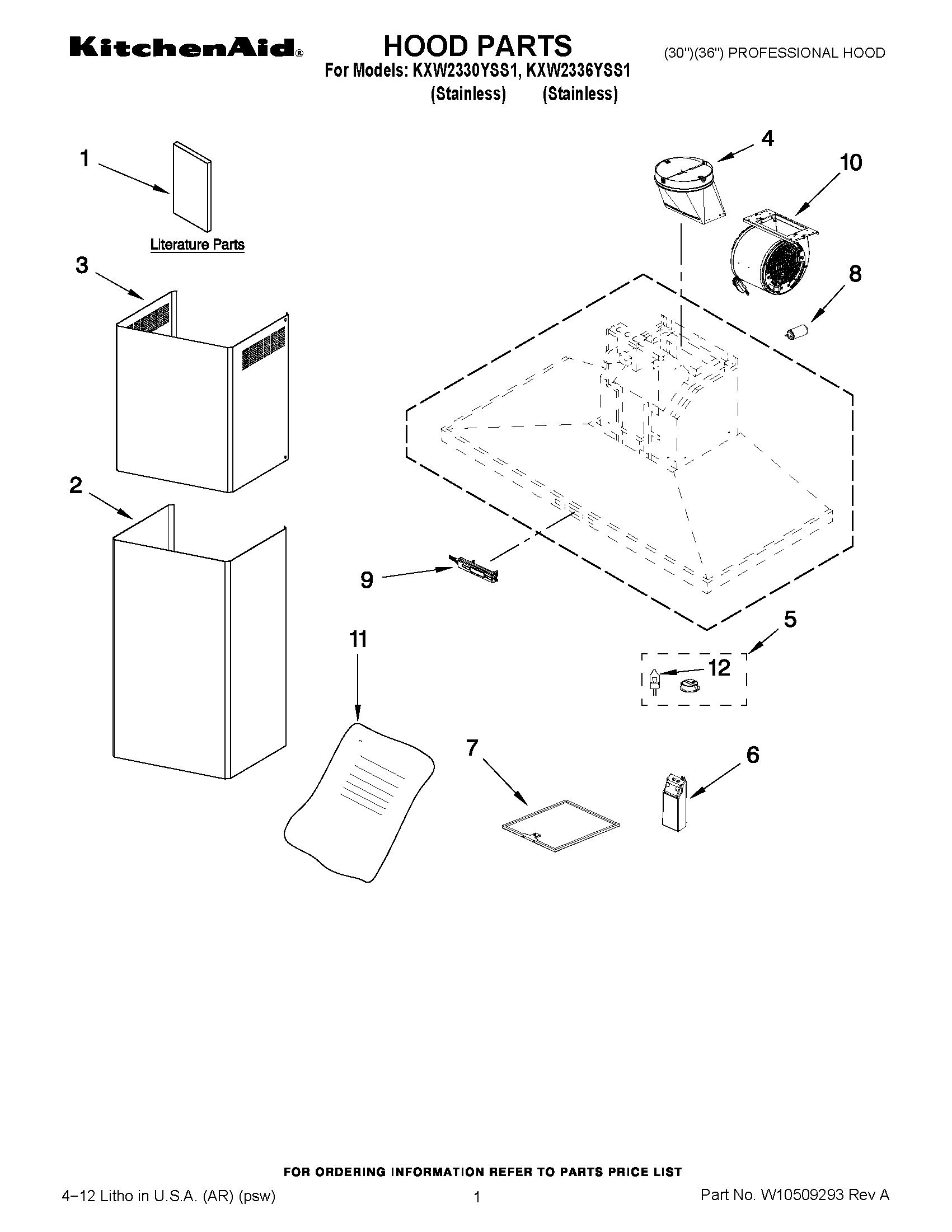

KXW2330YSS1 01 – HOOD PARTS

Products

Position	Product
NI	W10412939 Whirlpool Charcoal Filter Pack
NI	W11430940 Whirlpool Vent Kit Recirculating
NI	W10337357 Whirlpool Range Hood Chimney
1	USE & CARE GUIDE
2	W11417192 Whirlpool Duct Assembly
4	WPW10313841 Whirlpool Hood Damper
5	WPW10298151 Whirlpool Light Bulb
6	W11186486 Whirlpool Transformer
7	W10169961A Whirlpool Grease Filter
8	W10256657 Whirlpool Capacitor
9	W10504432 Whirlpool Power Button Switch
10	WPW10351824 Whirlpool Blower Fan
11	HARDWARE, INSTALL
