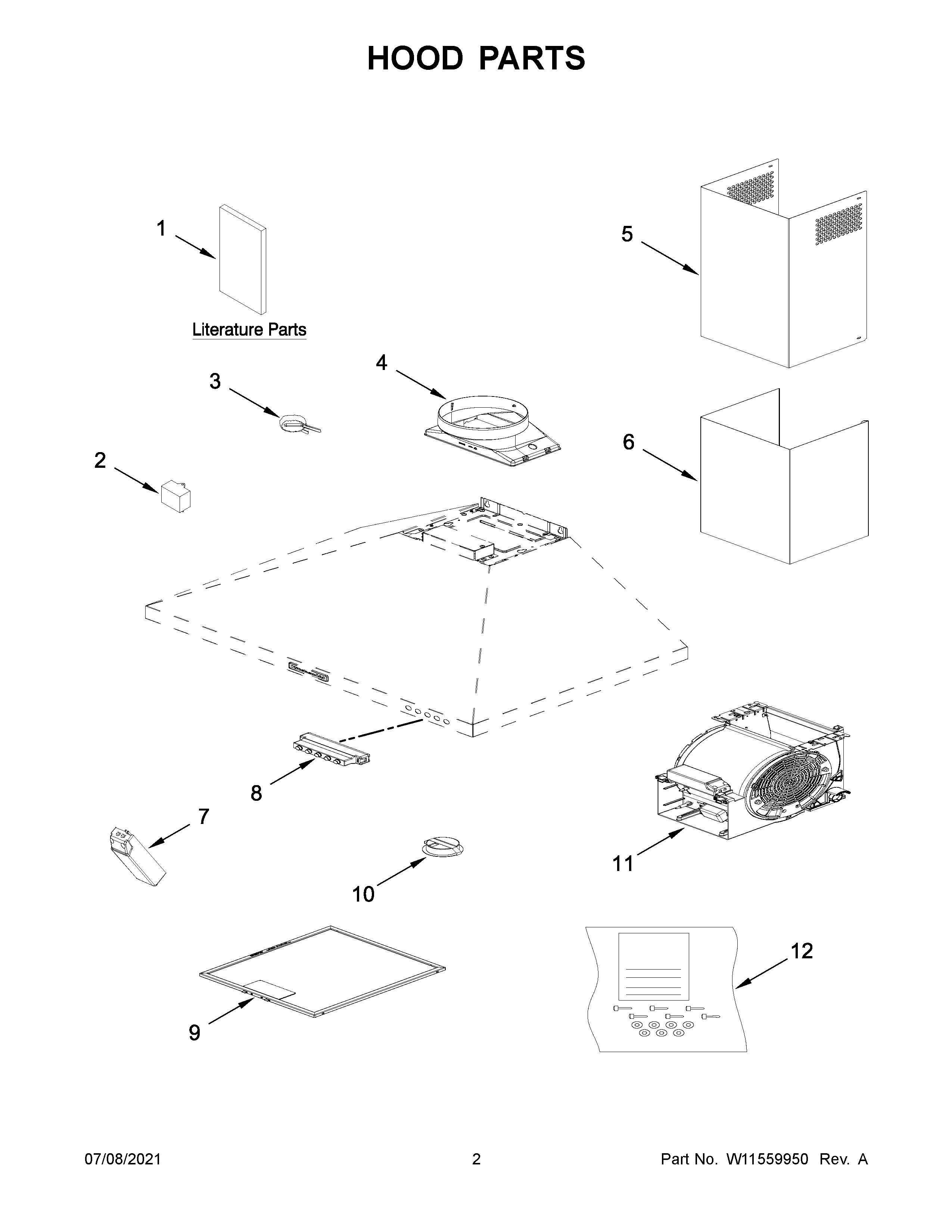

KXW2330YSS2 02 – HOOD PARTS

KXW2330YSS2 02 – HOOD PARTS

Written by

in

KXW2330YSS2 02 – HOOD PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11328673 Whirlpool Capacitor
3W10427011 Whirlpool Filter
4W10847841 Whirlpool Range Hood Vent Damper
6W11417192 Whirlpool Duct Assembly
7W11186486 Whirlpool Transformer
8W10504432 Whirlpool Power Button Switch
9W10169961A Whirlpool Grease Filter
10WPW10298151 Whirlpool Light Bulb
11WPW10351824 Whirlpool Blower Fan
12HARDWARE, INSTALL
