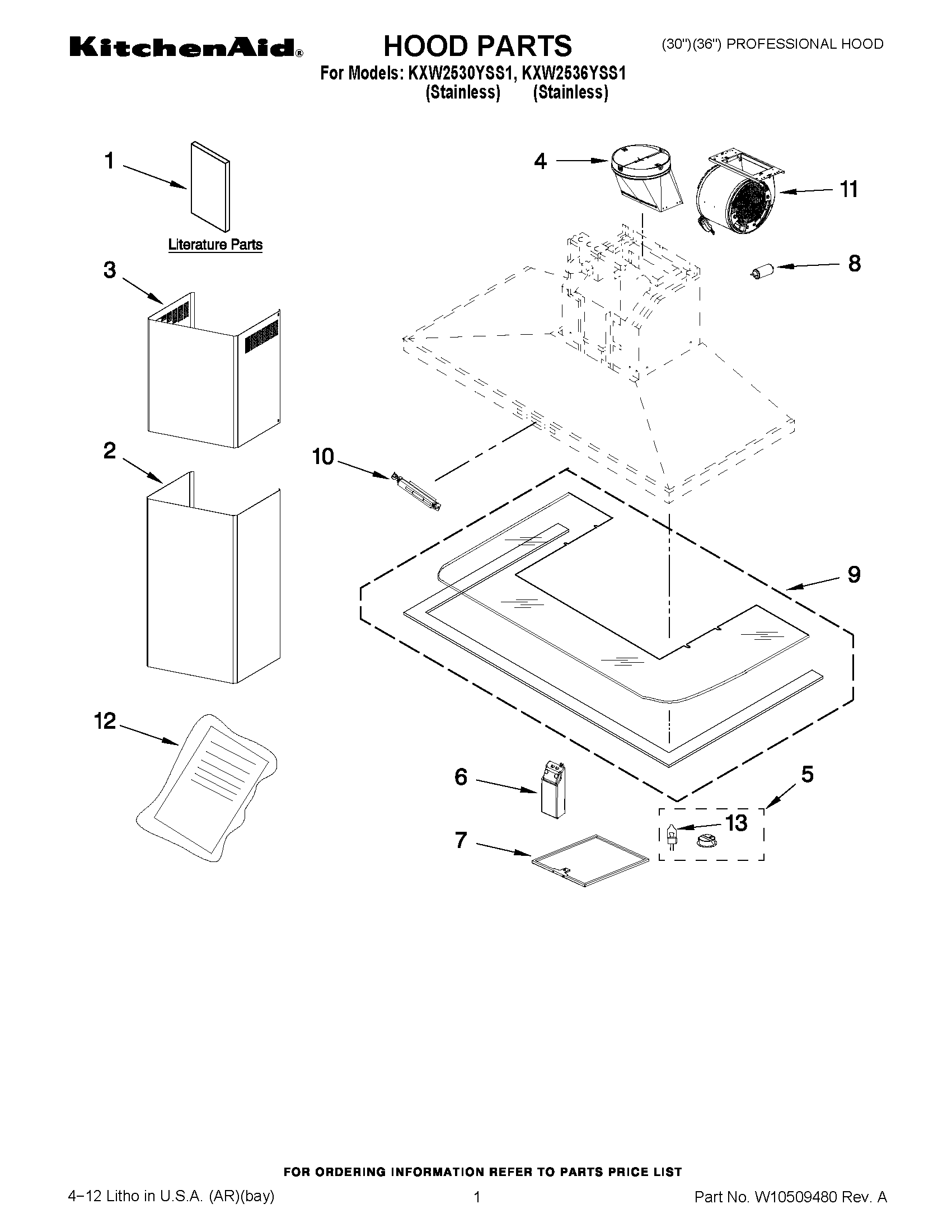

KXW2530YSS1 01 – HOOD PARTS

Products

Position	Product
NI	W10294735 Whirlpool Range Chimney Exhaust Duct
NI	W11430939 Whirlpool Duct Kit
NI	W10412939 Whirlpool Charcoal Filter Pack
1	USE & CARE GUIDE
3	W11590865 Whirlpool Chimney
4	WPW10313841 Whirlpool Hood Damper
5	WPW10298151 Whirlpool Light Bulb
6	W11186486 Whirlpool Transformer
7	W10169961A Whirlpool Grease Filter
8	W10256657 Whirlpool Capacitor
9	GLASS ASSEMBLY (30“)
9	GLASS ASSEMBLY (36“)
10	W10504432 Whirlpool Power Button Switch
11	WPW10291577 Whirlpool Fan Motor
12	HARDWARE, INSTALL
