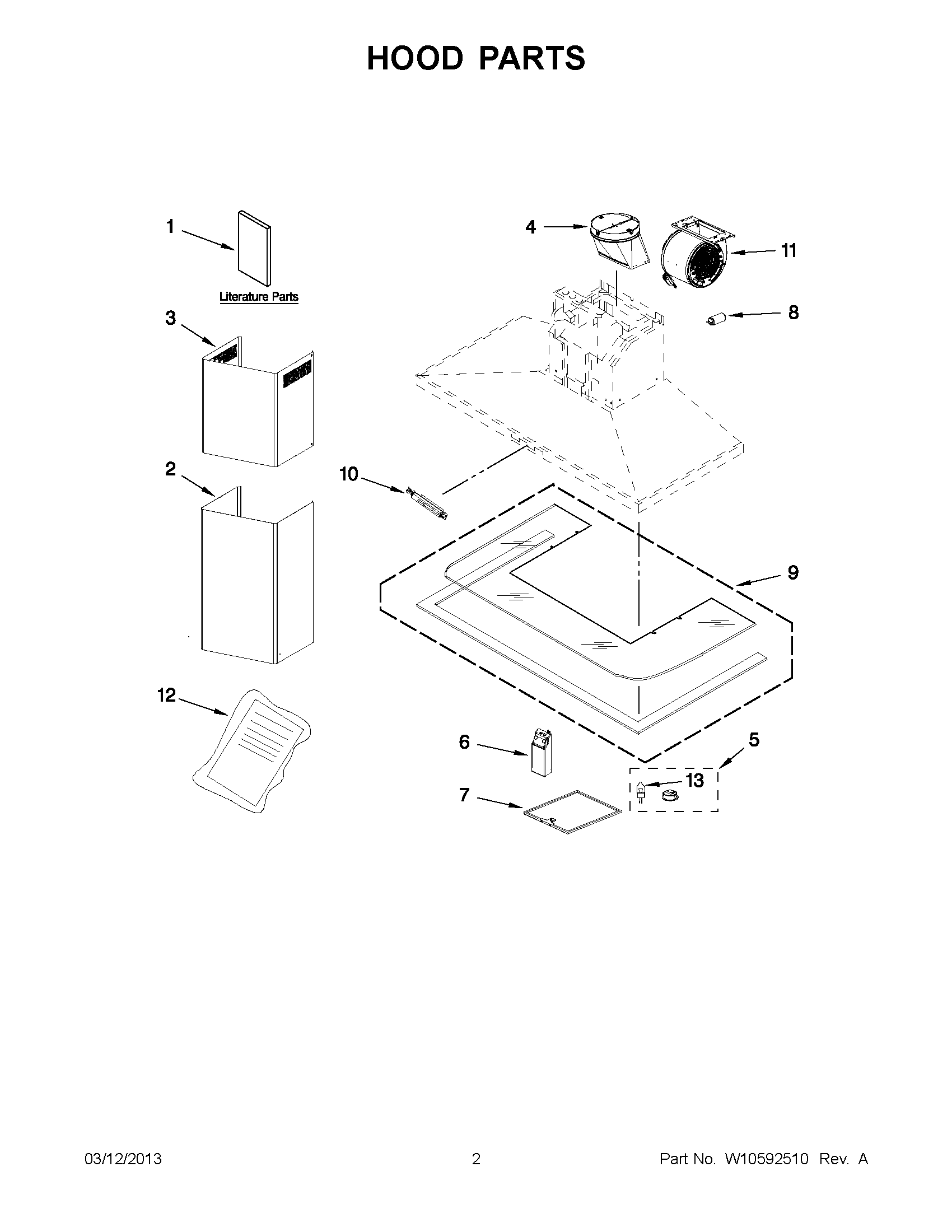

KXW2536YSS2 01 – HOOD PARTS

Products

Position	Product
NI	W10412939 Whirlpool Charcoal Filter Pack
NI	W11430939 Whirlpool Duct Kit
NI	W10294735 Whirlpool Range Chimney Exhaust Duct
NI	W10446915 Whirlpool Range Hood Air Kit
1	USE & CARE GUIDE
3	W11590865 Whirlpool Chimney
4	W10847841 Whirlpool Range Hood Vent Damper
5	BULB-LIGHT
6	W11186486 Whirlpool Transformer
7	W10169961A Whirlpool Grease Filter
8	W10256657 Whirlpool Capacitor
9	GLASS ASSEMBLY (36``)
9	GLASS ASSEMBLY (30``)
10	W10504432 Whirlpool Power Button Switch
11	WPW10291577 Whirlpool Fan Motor
12	HARDWARE, INSTALLATION
13	BULB-LIGHT
