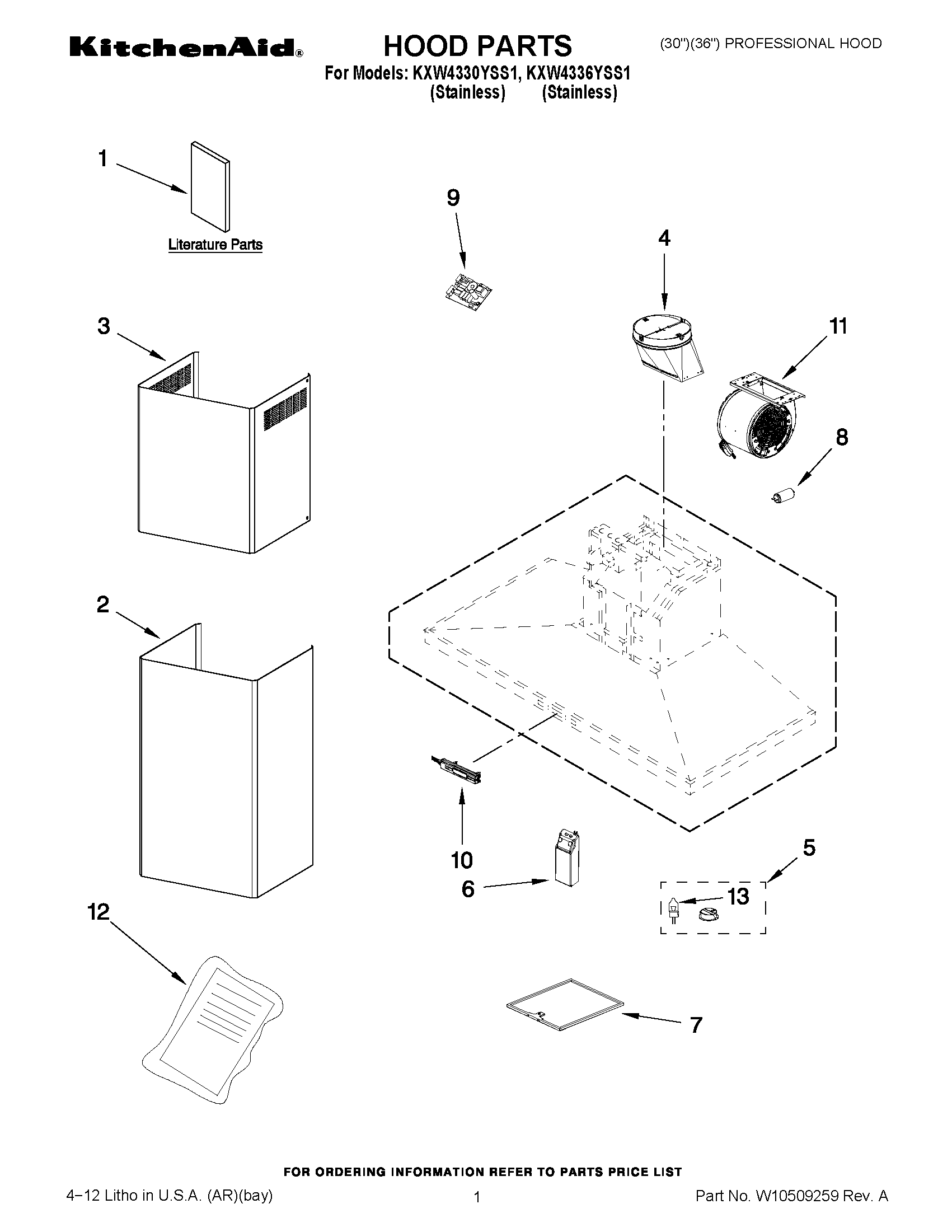

KXW4330YSS1 01 – HOOD PARTS

Products

Position	Product
NI	W10272075 Whirlpool Range Hood Chimney
NI	W10272068 Whirlpool Range Hood Charcoal Filter Set
NI	ACCESSORIES, RECIRCULATION KIT
1	USE & CARE GUIDE
2	W11321566 Whirlpool Chimney Assembly
3	CHIMNEY, UPPER
4	WPW10313841 Whirlpool Hood Damper
5	WPW10298151 Whirlpool Light Bulb
6	W11186486 Whirlpool Transformer
7	W10351855A Whirlpool Range Hood Grease Filter
8	8186677 Whirlpool Capacitor
9	WPW10291604-includeCORE Whirlpool WPW10291604 Washer Electronic Control Board + Core
10	WPW10505467 Whirlpool Push Button Switch
11	WPW10291602 Whirlpool Fan Motor
12	HARDWARE, INSTALL
