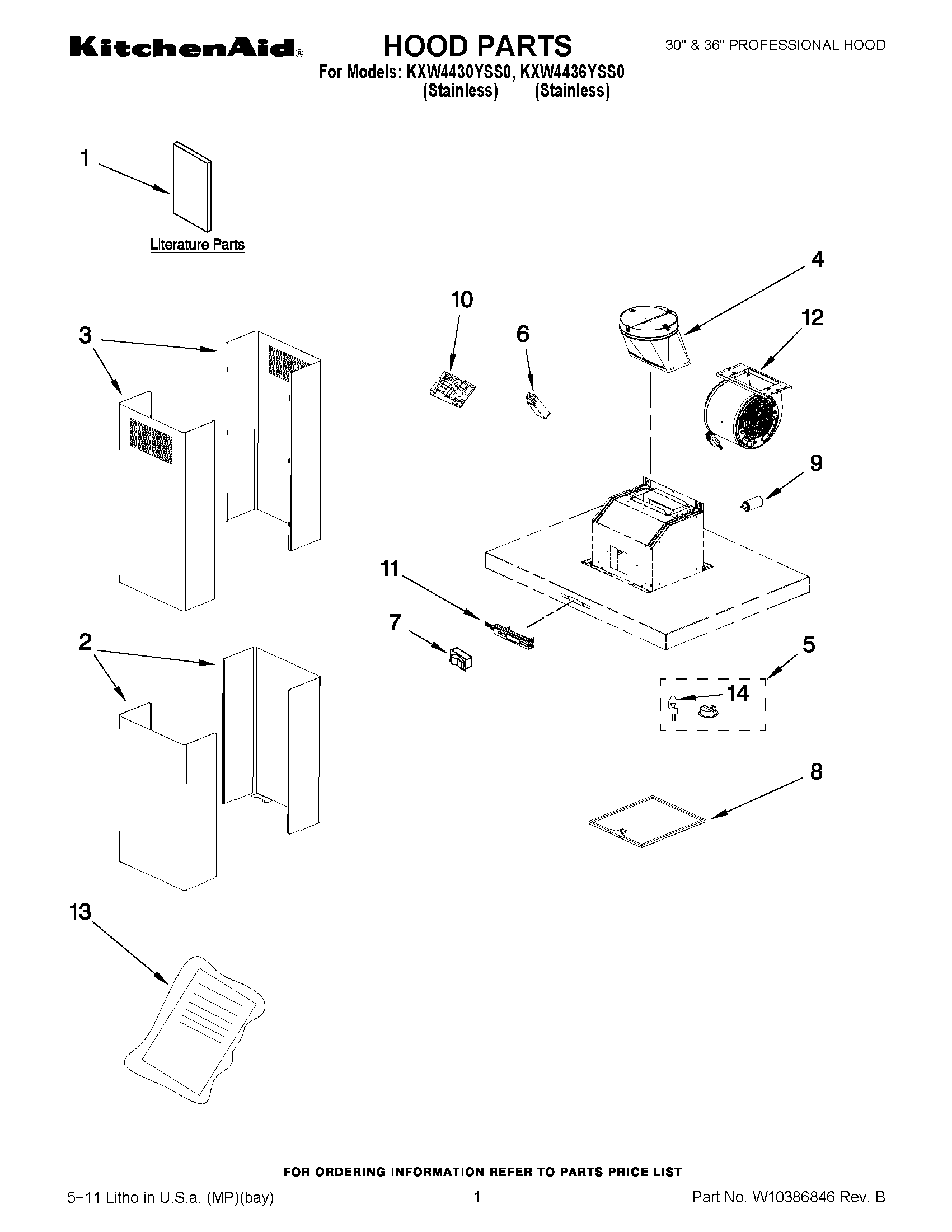

KXW4430YSS0 01 – HOOD PARTS

Products

Position	Product
NI	W10272076 Whirlpool Chimney
NI	W10285062 Whirlpool Filter
NI	RECIRCULATION KIT
1	USE & CARE GUIDE
2	W11321566 Whirlpool Chimney Assembly
3	W11328694 Whirlpool Chimney
4	WPW10313841 Whirlpool Hood Damper
5	WPW10298151 Whirlpool Light Bulb
6	W11186486 Whirlpool Transformer
7	ROCKER SWITCH
8	W10351855A Whirlpool Range Hood Grease Filter
9	8186677 Whirlpool Capacitor
10	WPW10291604-includeCORE Whirlpool WPW10291604 Washer Electronic Control Board + Core
11	WPW10351858 Whirlpool Push Button Switch
12	WPW10291602 Whirlpool Fan Motor
13	HARDWARE, INSTALL
