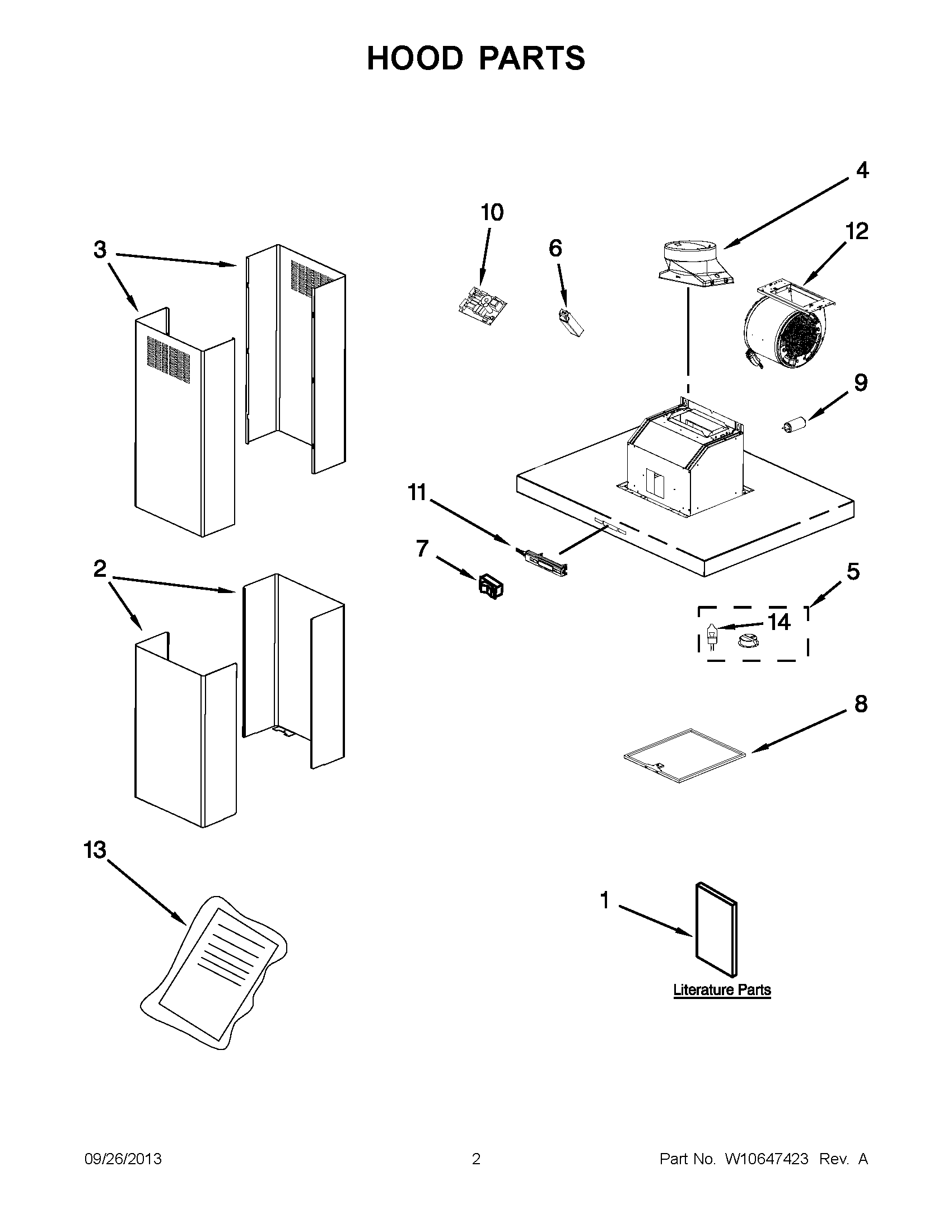

KXW4430YSS2 02 – HOOD PARTS

Products

Position	Product
NI	RECIRCULATION KIT
NI	W10285062 Whirlpool Filter
NI	W10272076 Whirlpool Chimney
1	USE & CARE GUIDE
2	W11321566 Whirlpool Chimney Assembly
3	W11328694 Whirlpool Chimney
4	W10847841 Whirlpool Range Hood Vent Damper
5	WPW10298151 Whirlpool Light Bulb
6	W11186486 Whirlpool Transformer
7	ROCKER SWITCH
8	W10351855A Whirlpool Range Hood Grease Filter
9	8186677 Whirlpool Capacitor
10	WPW10291604-includeCORE Whirlpool WPW10291604 Washer Electronic Control Board + Core
11	WPW10351858 Whirlpool Push Button Switch
12	W11106377 Whirlpool Blower Fan
13	HARDWARE, INSTALLATION
