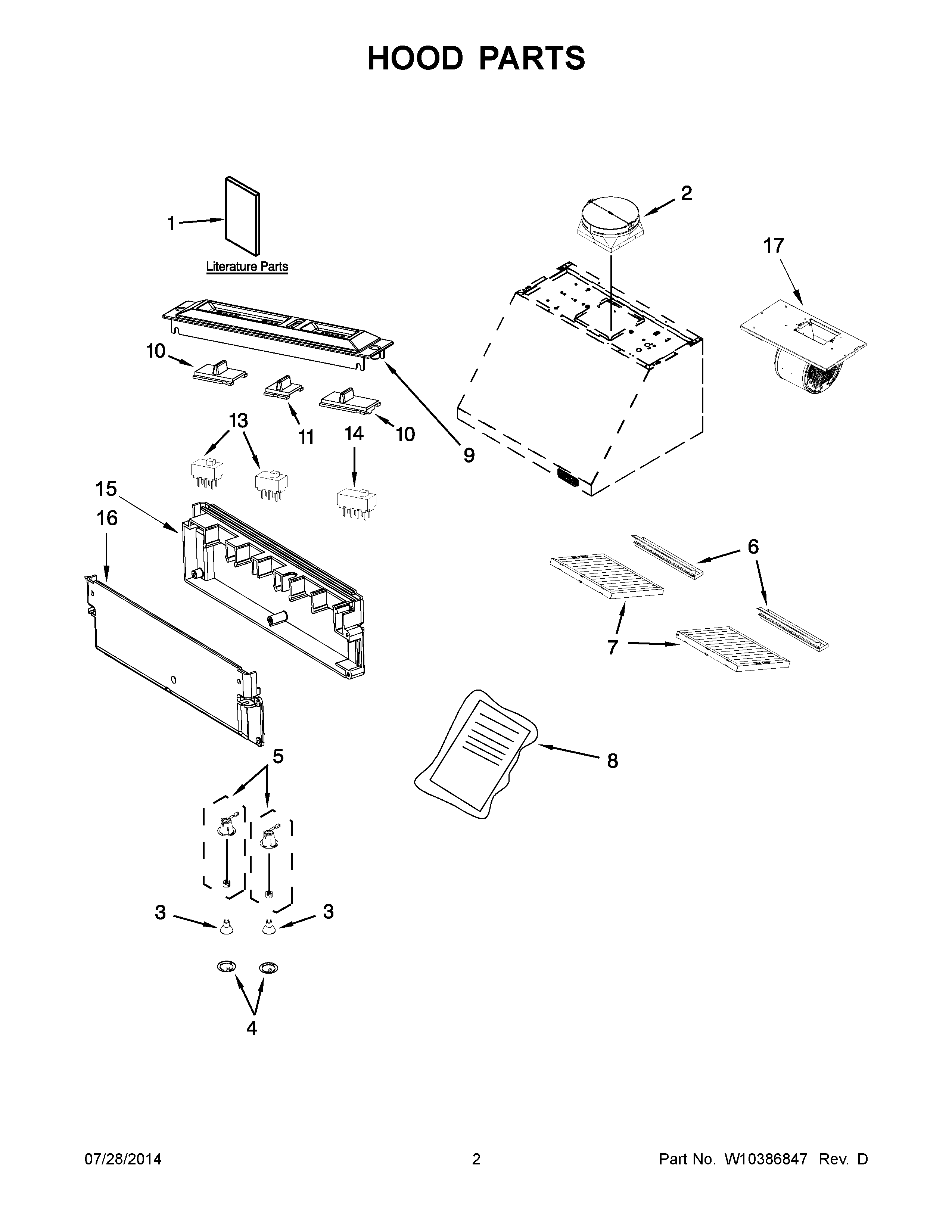

KXW8736YSS0 02 – HOOD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10225948 Whirlpool Range Hood Tall Backsplash with Dual Position Shelf
NI	W10225949 Whirlpool Range Hood Backsplash, Stainless Steel, Dual Shelf
NI	W10352735 Whirlpool Backsplash
NI	ACCESSORIES KIT, BACKSPLASH, 48" WITHOUT SHELF
NI	W10352734 Whirlpool Backsplash Assembly
NI	WPW10225950 Whirlpool Backsplash
NI	W10285447 Whirlpool 30" Stainless Steel Range Hood Backsplash with Shelf
NI	W10272079 Whirlpool Chimney
NI	W10272080 Whirlpool Chimney
NI	W10272081 Whirlpool Chimney
NI	WPW10294006 Whirlpool Blower Fan
NI	WPW10294026 Whirlpool Blower Fan
NI	W10285448 Whirlpool Backsplash
NI	W10285449 Whirlpool Backsplash
1	USE & CARE GUIDE
2	W11156393 Whirlpool Hood Damper
3	WPW10291579 Whirlpool Light Bulb
4	W10351924 Whirlpool Bezel
5	WPW10370558 Whirlpool Socket
6B	W10294022 Whirlpool Grease Channel
6A	W10294011 Whirlpool Grease Channel
6	W10294003 Whirlpool Grease Channel
7	W10351890 Whirlpool Filter
7B	WPW10351929 Whirlpool Filter
7A	W10351892 Whirlpool Filter Assembly
8	W10351930 Whirlpool Hardware Assembly
9	W11387938 Whirlpool Range Hood Control Panel
10	W11569415 Whirlpool Control Switch Long Slider
11	W11662407 Whirlpool Range Slide Switch
13	W10853393 Whirlpool Rocker Switch
14	W11193832 Whirlpool Rocker Switch
15	W10721964 Whirlpool Control Housing
16	W10721963 Whirlpool Control Housing
