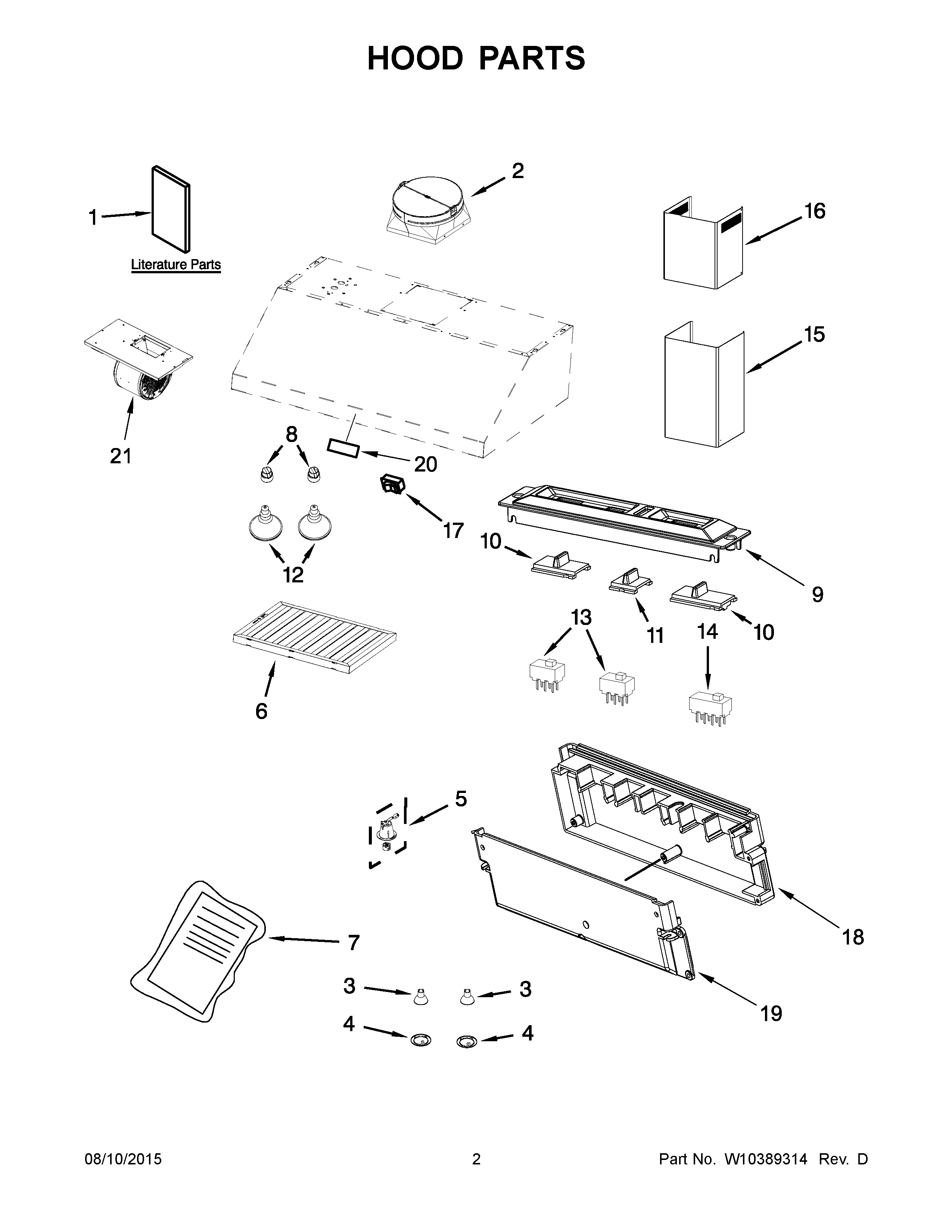

KXW9748YSS0 02 – HOOD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10294006 Whirlpool Blower Fan
NI	W10352733 Whirlpool Chimney
NI	ACCESSORIES KIT, BACKSPLASH, 48" WITHOUT SHELF
NI	W10352735 Whirlpool Backsplash
NI	W10225949 Whirlpool Range Hood Backsplash, Stainless Steel, Dual Shelf
NI	W10225948 Whirlpool Range Hood Tall Backsplash with Dual Position Shelf
NI	WPW10294026 Whirlpool Blower Fan
NI	W10285448 Whirlpool Backsplash
NI	W10285449 Whirlpool Backsplash
1	USE & CARE GUIDE
2	W11156393 Whirlpool Hood Damper
3	WPW10291579 Whirlpool Light Bulb
4	W10351924 Whirlpool Bezel
5	WPW10370558 Whirlpool Socket
6	W10351890 Whirlpool Filter
7	W10351931 Whirlpool Hardware Assembly
8	W10294008 Whirlpool Socket
9	W11387938 Whirlpool Range Hood Control Panel
10	W11569415 Whirlpool Control Switch Long Slider
11	W11662407 Whirlpool Range Slide Switch
12	WPW10294005 Whirlpool Light Bulb
13	W10853393 Whirlpool Rocker Switch
14	W11193832 Whirlpool Rocker Switch
15	WPW10351932 Whirlpool Dishwasher Chimney
16	W11417439 Whirlpool Exhaust Duct
17	W10351934 Whirlpool Rocker Switch
18	W10721964 Whirlpool Control Housing
19	W10721963 Whirlpool Control Housing
20	WPW10243391 Whirlpool Refrigerator Nameplate
