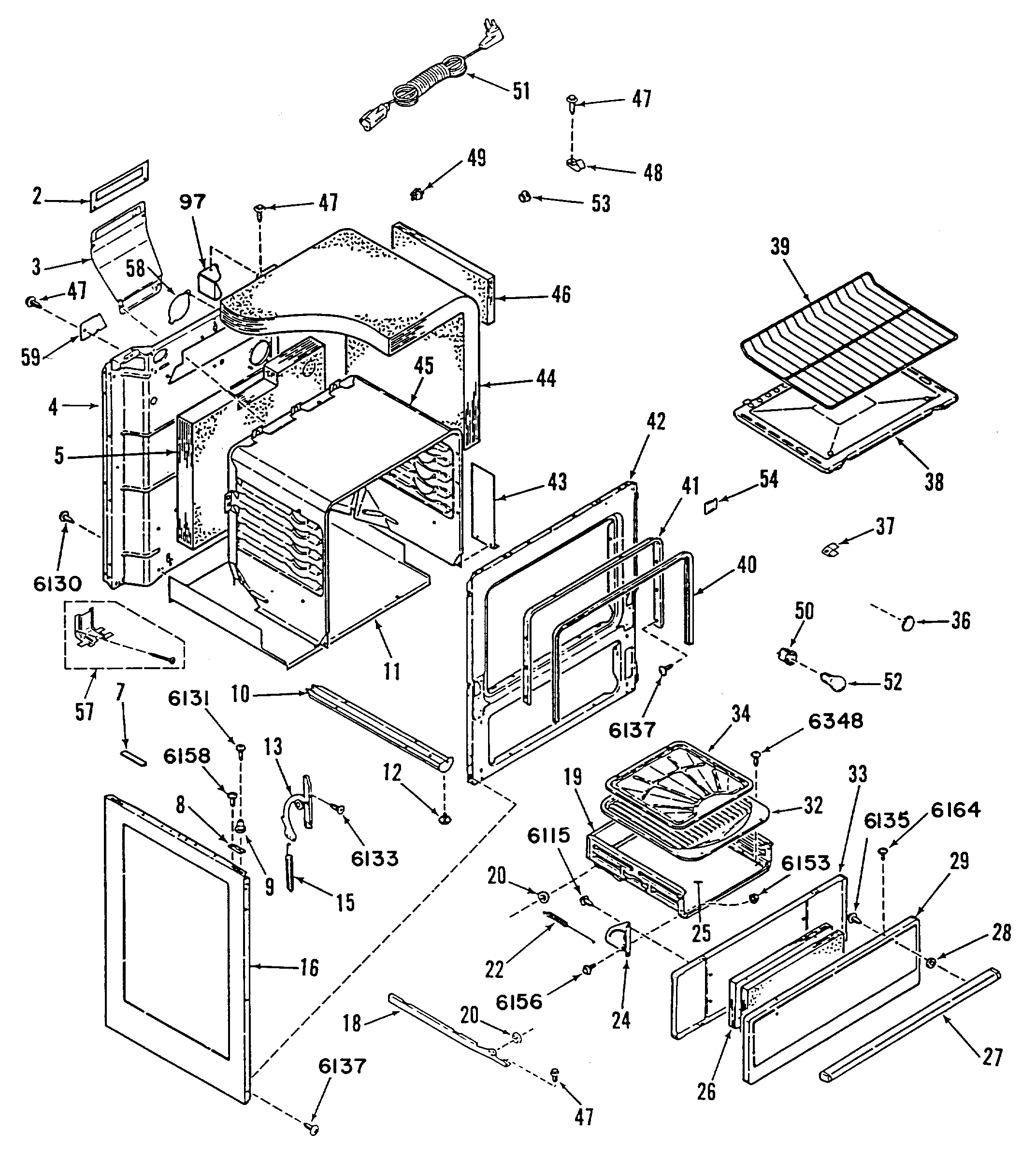

L2B115GEL0 3

Products

Position	Product
2	UNKNOWN
3	GEN WB38X0105
4	GEN WB63X0347
5	INSULATION-TOP & SIDES
9	MT STRIKE
10	BASE-RIGHT & LEFT W/LEGS
11	MAIN BOTTOM
12	GEN WB02X0525
13	WB14X103 GE Range Oven Left Door Hinge
13	WB14X104 GE Stove Range Oven Right Hand Door Hinge
15	UNKNOWN
16	BODY SIDE-WHITE
16	BODY SIDE-ALMOND
18	GUIDE-BROILER-LEFT
18	GUIDE-BROILER-RIGHT
19	DRAWER-BROILER
22	GEN WB09X0240
24	BRO DRAWER HINGE-RT
24	BRO DRAWER HINGE-LT
25	GEN WB49X0625
26	INSULATION
27	OV DOOR HANDLE
28	DOOR HANDLE SPACER-BLACK
29	GEN WB56X2014
29	GEN WB56X2013
32	BROILER PAN
33	BROILER DR LINING
34	BROILER PAN GRID
36	PLUG BUTTON-BBB
37	THERMOSTAT BULB RET CLIP
38	OVEN BOTTOM
39	GEN WB48X0208
40	OV DOOR SEAL
42	GEN WB63X0328
43	UNKNOWN
44	OVEN BODY INSULATION
45	OVEN BODY
48	GEN WB02X9493
49	DISCONNECT
51	POWER SUPPLY CORD
54	WB2X9189 GE Oven Plug – REC
57	WB2X7909 GE Oven Anti-Tip Kit
58	LIGHT COVER PLATE
59	FLUE PLATE COVER
6115	WB1M1 GE Oven Screw
6130	WB1X1130 GE Oven Screw 10-32
6131	WB1X1131 GE Screw 6-32
6133	WB1K5191 GE Oven Zinc FL Screw
6137	WB1X1137 GE Oven Screw
6153	HEX NUT
6156	GEN WB01X1156
6164	SCREW-BRT. NI.
6348	GEN WB01X1348
