L2B115GEL0 4

L2B115GEL0 4

Written by

in

L2B115GEL0 4

Products

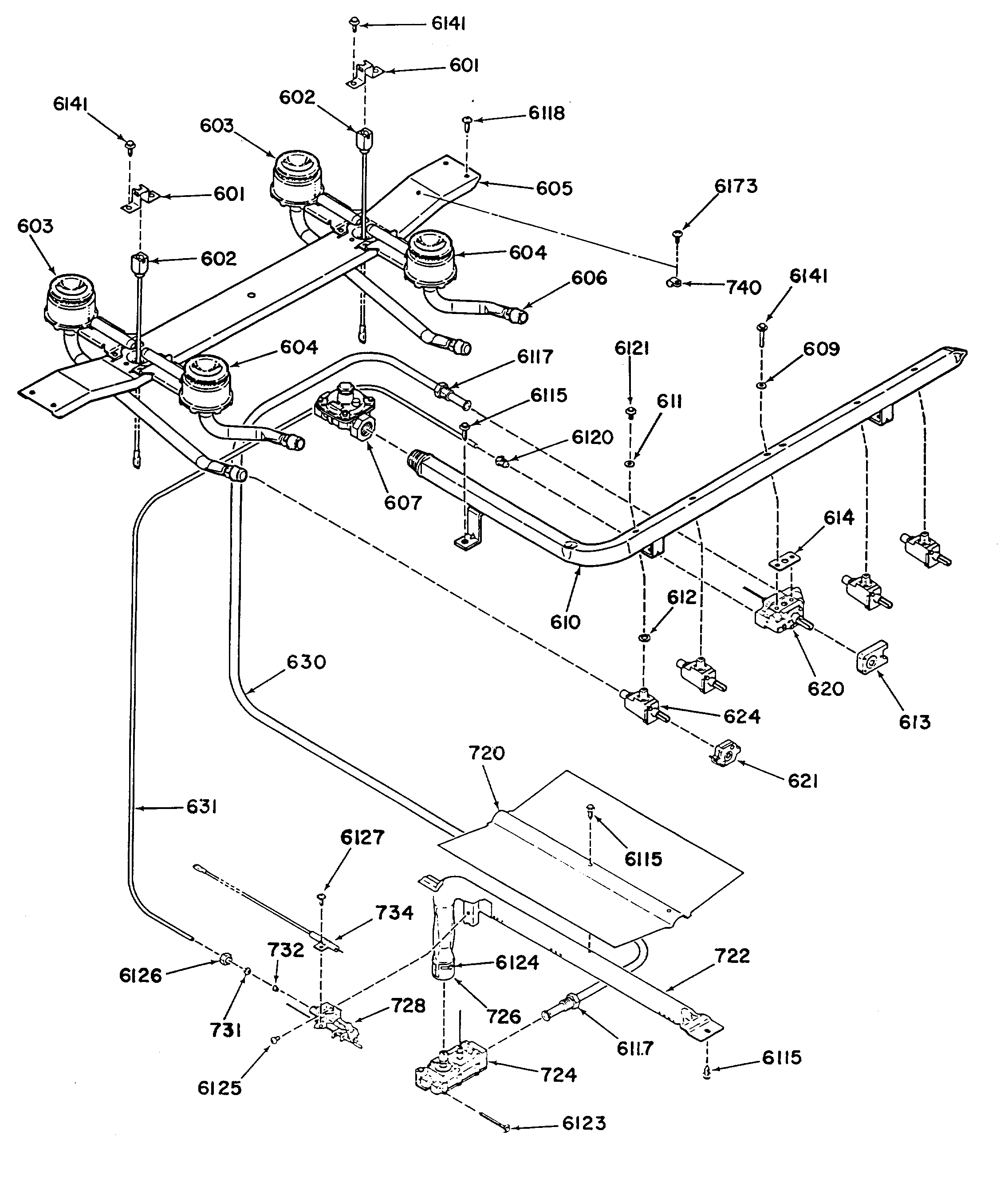

Position	Product
601	IGNITER BRACKET
602	GEN WB02X9743
602	GEN WB02X9742
603	TOP BURNER ASM-REAR
603	TOP BURNER ASM-FRONT
605	TOP BURNER SUPPORT
606	GEN WB02X9739
607	GEN WB21X0465
609	THERMOSTAT SCREW GASKET
610	MANIFOLD PIPE ASM
611	VALVE SCREW GASKET
612	VALVE GASKET
613	THERMOSTAT SWITCH
614	THERMOSTAT GASKET
620	OVEN THERMOSTAT
621	VALVE SWITCH
624	VALVE-TOP BURNER
630	TUBE 3/8 W/NUT
631	3/16 TUBE
720	OV BURN BAFFLE
722	GEN WB28X0083
724	GEN WB21X0506
726	AIR SHUTTER-OVEN
728	PILOT W/CUP
731	3/16 TUBING SLEEVE
732	GEN WB02X9017
734	OVEN SPARK IGN ELECTRODE
740	GEN WB02X9750
6115	WB1M1 GE Oven Screw
6117	NUT
6118	WB1X1118 GE Oven Screw 6-32T
6120	HEX NUT
6121	GEN WB01X1121
6123	GEN WB01X1123
6124	AIR SHUTTER SCREW-OVEN
6125	GEN WB01X1125
6126	TUBING NUT 3/16
6127	WB1X681 GE Oven Screw
6141	WB1X1141 GE Oven Screw 8-32
6173	WB1X1173 GE Rivet
