L2B135GEL2 3

L2B135GEL2 3

Written by

in

L2B135GEL2 3

Products

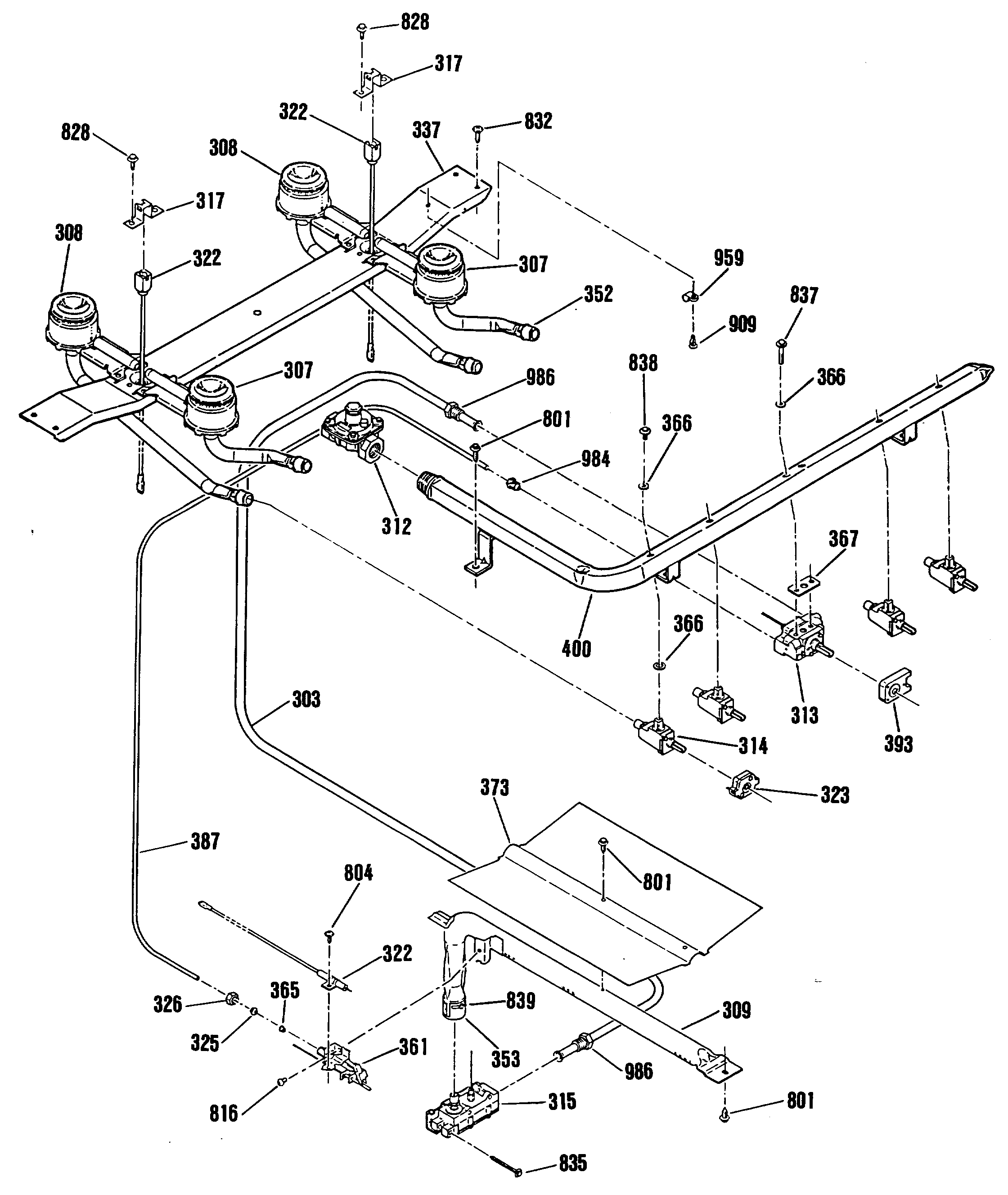

Position	Product
303	TUBE 3/8 W/NUT
307	TOP BURNER ASM-FRONT
308	TOP BURNER ASM-REAR
309	OV BURN ASM (373,309,801
312	GEN WB21X0465
313	OVEN THERMOSTAT
314	VALVE-TOP BURNER
315	GEN WB21X0474
317	IGNITER BRACKET
322	SPARK IGN ELECTRODE-LT
322	OVEN SPARK IGN ELECTRODE
322	GEN WB02X9532
323	VALVE SWITCH
325	3/16 TUBING SLEEVE
326	TUBING NUT 3/16
337	TOP BURNER SUPPORT
352	GEN WB02X9739
353	AIR SHUTTER-OVEN
361	PILOT W/CUP
365	GEN WB02X9017
366	VALVE GASKET
366	THERMOSTAT SCREW GASKET
366	VALVE SCREW GASKET
367	THERMOSTAT GASKET
373	OV BURN BAFFLE
387	3/16 TUBE
393	THERMOSTAT SWITCH
400	MANIFOLD PIPE ASM
801	WB1M1 GE Oven Screw
804	WB1X681 GE Oven Screw
816	GEN WB01X1125
828	WB1X1141 GE Oven Screw 8-32
832	WB1X1118 GE Oven Screw 6-32T
835	GEN WB01X1123
837	GEN WB01X1151
838	GEN WB01X1121
839	ADJUSTING SCREW
909	RIVET
959	GEN WB02X9737
984	HEX NUT
