L2B235GPL0 3

L2B235GPL0 3

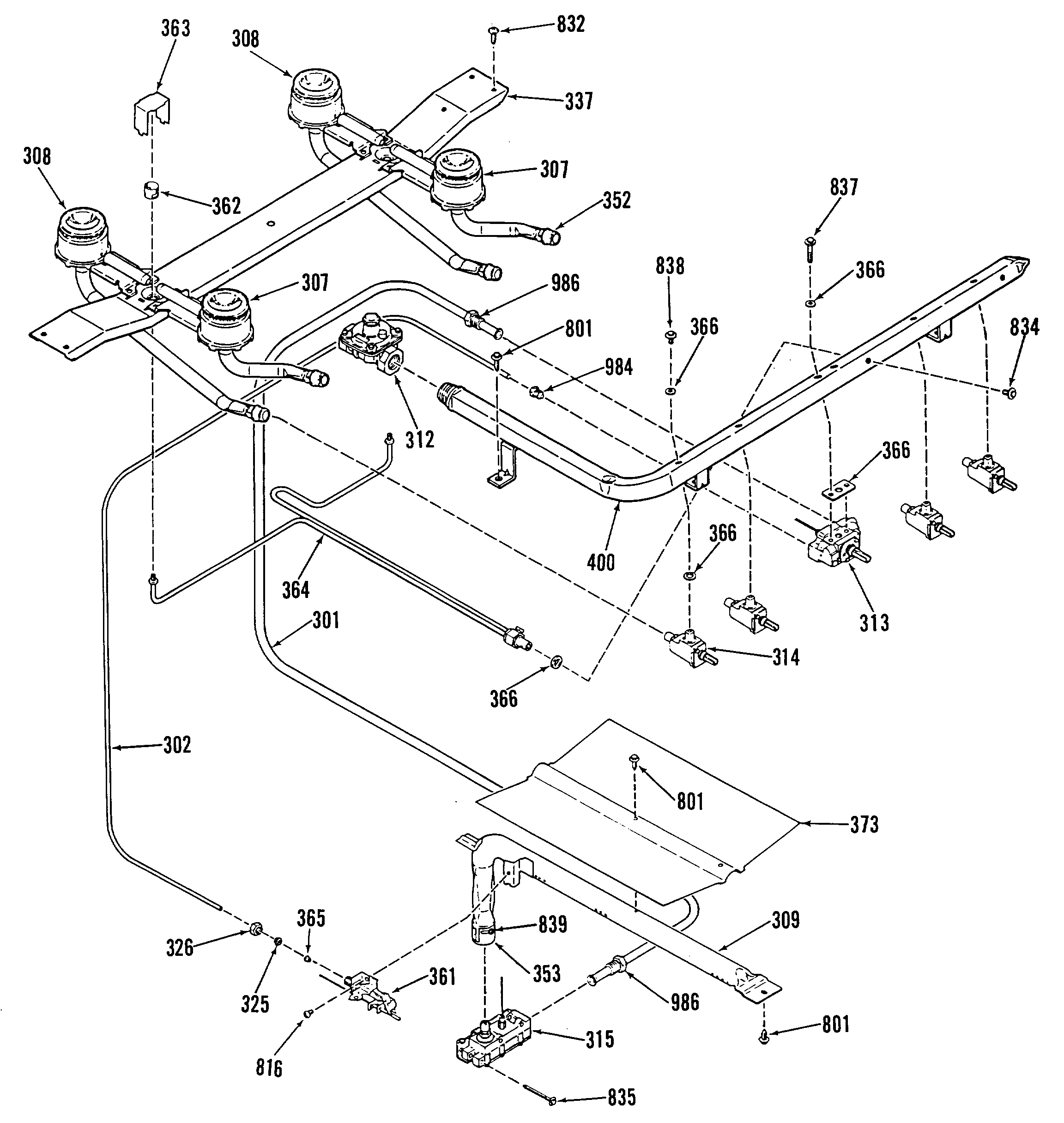

Products

PositionProduct
301TUBE 3/8 W/NUT
302GEN WB02X9745
307TOP BURNER ASM-FRONT
308TOP BURNER ASM-REAR
309GEN WB16M0008
312GEN WB21X0465
313GEN WB21X0471
314VALVE-TOP BURNER
315GEN WB21X0474
325TUBING SLEEVE 3/16
326TUBING NUT 3/16
337TOP BURNER SUPPORT
352GEN WB02X9739
353AIR SHUTTER-OVEN
361GEN WB02X9186
362GEN WB02X9086
363GEN WB02X9185
364FILTER W/PILOT
365GEN WB02X9017
366VALVE GASKET
366THERMOSTAT SCREW GASKET
366GEN WB02X9089
366GASKET
366THERMOSTAT GASKET
373OV BURN BAFFLE
400MANIFOLD PIPE ASM
801WB1M1 GE Oven Screw
816GEN WB01X1125
832WB1X1118 GE Oven Screw 6-32T
834GEN WB01X1155
835GEN WB01X1123
837GEN WB01X1151
838GEN WB01X1121
839ADJUSTING SCREW
984HEX NUT
986NUT
